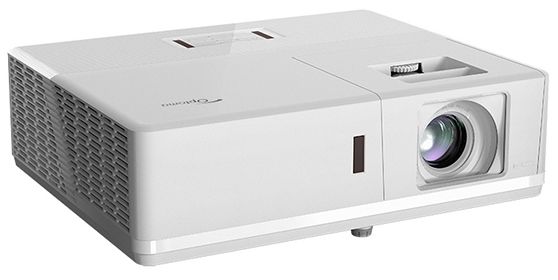

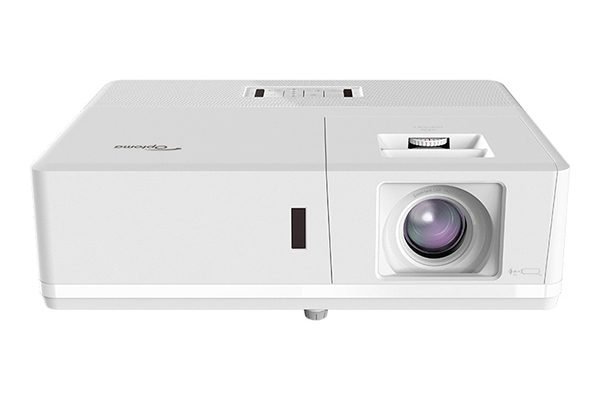

The technical data of the Optoma ZH506T-W includes 5000 ANSI lumens, a contrast of 300000:1 as well as a HDTV 1920 x 1080 display. The laser technology ensures a specified light source lifespan of up to 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. Accurate distances are provided by the Projection Calculator. A look at the light output reveals: The 5000 ANSI lumens are sufficient to illuminate an image width of up to 718 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 479 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. An additional 360° projection capability allows the device to be oriented at almost any angle. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. The projector was released in 2019 and is officially no longer distributed by Optoma.
Display Type
1 x 0,65" DMD Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5000
Screen
2222 Lux (200 cm Screen width)
Contrast
300000:1 full on/off
300000:1 full on/off
Black Level
0,0167 min. Lumen
0,007 min. Lumen
Lens shift
Vert.: +68% --53%
Lens shift
15%
17cm
+
Projector 3 cm over screen top edge.
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
2 x HDMI in
D-sub 15pin 2x in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
Mic in
12V Trigger out
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT
Ceiling Mounting
Yes, is possible.
Power
353W / 321W in Eco Mode
Size WxHxD
373,4 x 116,8 x 302,3 mm (14,7"x4,6"x11,9") 13,07 L/dm³
Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot 360° installable BrilliantColor™ PJLink™ Lan network compatible. Crestron®-Software compatible. -B Black -W White
Full HD 1080P compatible
Optoma Website
Product Sheet english
