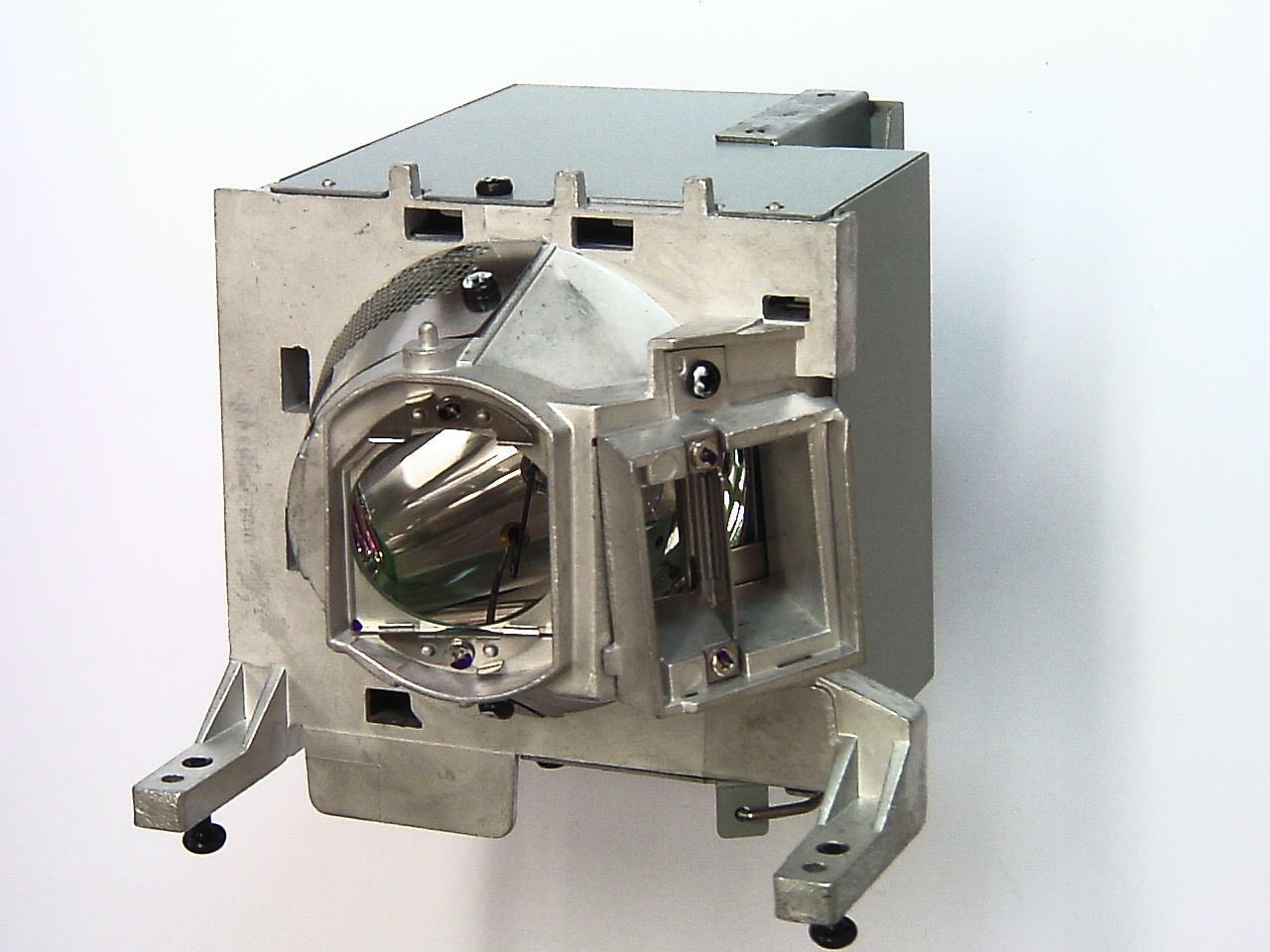

This projector from Optoma utilizes 3D-DLP technology, achieving 5500 ANSI lumens and a contrast of 10000:1 at a resolution of WUXGA 1920 x 1200. According to Optoma, the lamp has a durability of 3000 hours. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Projection Calculator helps find the optimal installation dimensions. A look at the light output reveals: The 5500 ANSI lumens are sufficient to illuminate an image width of up to 753 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 502 cm. For media input, video signals up to 1080P as well as 3D are supported. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. Since entering the market in 2017, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,67" Chip DLP WUXGA 16/9 Ti Digital Light Processing Chip
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
Calculated brightness quality The screen width may also be larger. Perfect
158 cm (no Zoom)
Lux:
2444 Lux
Contrast:
10000:1
Candela pro m²:
778 cd/m²
Foot-Lamberts:
227 fL
79 cm
•
Focus
Manual
Zoom
No Zoom 1,8
Objective
-
Throw Ratio
0,79:1
Audio
2 x 10W
Connections
2 x HDMI mit MHL in
D-sub 15pin in out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 mit HDBaseT in
Mikrofon in
3D Sync
Display Port
12V Reigger out
Real Full HD 3D
