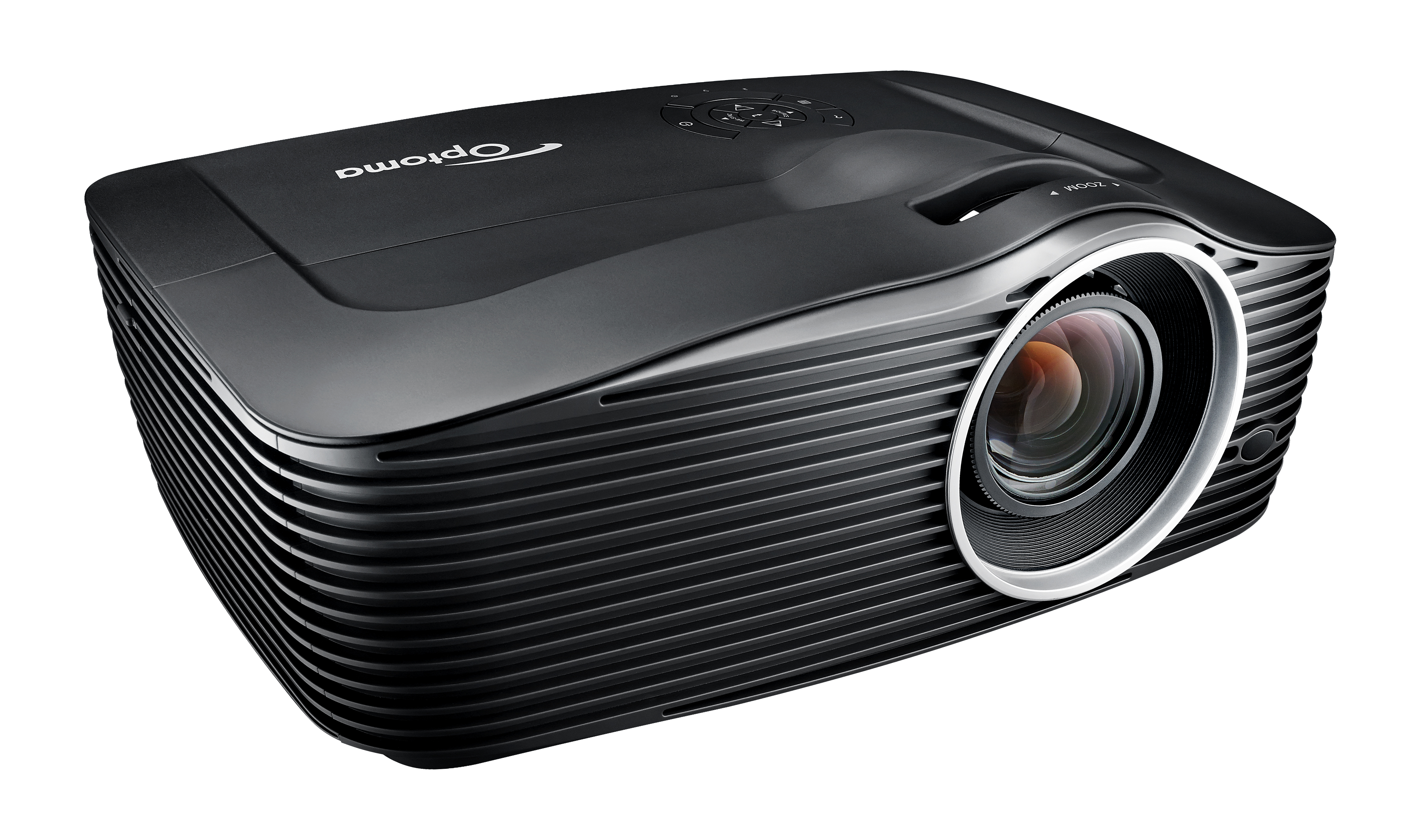

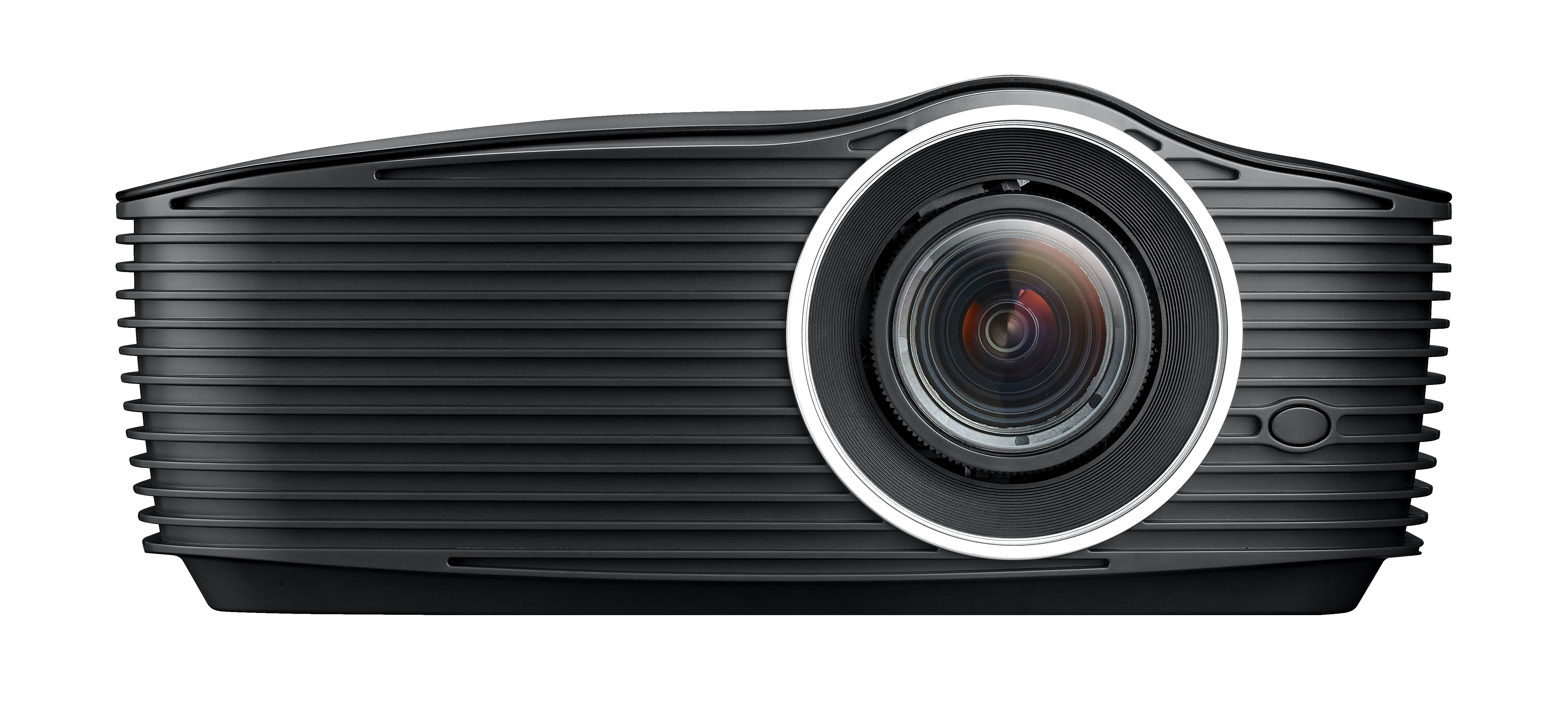

According to Optoma, the X501 model provides 4500 ANSI lumens, a contrast ratio of 15000:1 alongside a XGA 1024 x 768 resolution. In operating mode, the installed projector lamp offers a lifespan of 2500 hours. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Projector Calculator helps find the optimal installation dimensions. A look at the light output reveals: The 4500 ANSI lumens are sufficient to illuminate an image width of up to 584 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 389 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Equipped with a microphone jack and built-in speakers (15W), audio signals during presentations can be played back directly without an external audio system. In the specifications, the operating noise is listed at a mere 27 decibels, indicating very quiet cooling. The projector was released in 2013 and is officially no longer distributed by Optoma.
Display Type
1 x 0,55" DC3 DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
4500
Screen
1500 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,3000 min. Lumen
0,1 min. Lumen
Lens shift
Vert.: +60,5% --57.5%
Lens shift
3%
5cm
+
Projector 11 cm over screen top edge.
Resolution
XGA 1024 x 768
786.432 Pixel HDTV 1920 x 1080 compressed
Frame-Packing (Full HD 3D) | Frame Sequential (3D Ready) |
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
HDMI 1.4 in
DVI-D in
2 x D-Sub 15 pin in 1 x out
S-Video in
Cinch Video in
USB Typ A, B in in
RJ45 in
Mini Jack Audio in und out
12V Trigger out
Mikrofon in

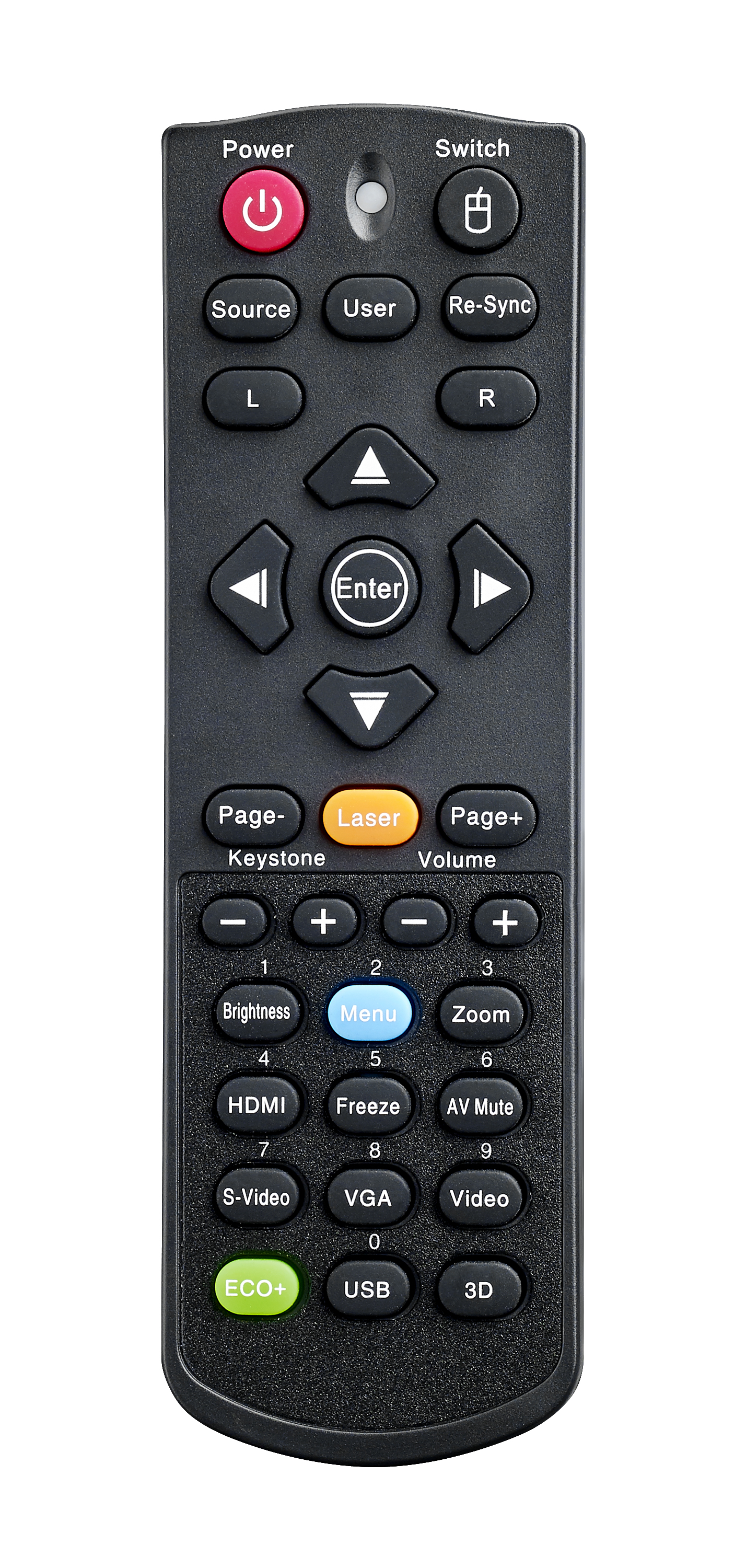

Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Freeze Eco Mode Automatic and manual vertical keystone correction Kensington Slot BrilliantColor™ Remote control with laser pointer und mouse control PJLink™ Lan network compatible. Crestron®-Software compatible.
Real Full HD 3D
