This projector is named ZH507, originates from Optoma, and its data sheet shows 5500 ANSI lumens, a contrast of 300000:1 and a resolution of HDTV 1920 x 1080. This is a laser projector with a light source designed to last for 30000 hours, which translates to 20.5 years with 4 hours of daily use. Both optical image shifting (lens shift) and digital keystone adjustment are included, enabling exact alignment on the screen. Accurate distances are provided by the Lens Shift Calculator. Looking at practical performance, up to 753 cm can be illuminated with 5500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 502 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D. An additional 360° projection capability allows the device to be oriented at almost any angle. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2022 and is no longer part of Optoma's current product range.
Display Type
1 x DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5500
Screen
2444 Lux (200 cm Screen width)
Contrast
300000:1 full on/off
300000:1 full on/off
Black Level
0,0183 min. Lumen
0,008 min. Lumen
Lens shift
Vert.: +66% --50%
Lens shift
16%
18cm
+
Projector 1 cm over screen top edge.
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K+2K) 4096 x 2160 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).

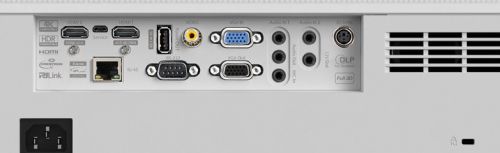

2x HDMI in
3D Sync
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
12V Trigger
Micro USB
Ceiling Mounting
Yes, is possible.
Power
282W
Size WxHxD
337 x 122,5 x 265 mm (13,3"x4,8"x10,4") 10,9 L/dm³
Real Full HD 3D Full HD 1080P compatible Direkt Power Off Lens shift Funktion Eco Mode Automatic and manual vertical keystone correction Kensington Slot 360° installable 24/7 continuous operation capable Password protection PJLink™ Lan network compatible. Crestron®-Software compatible.
Real Full HD 3D
