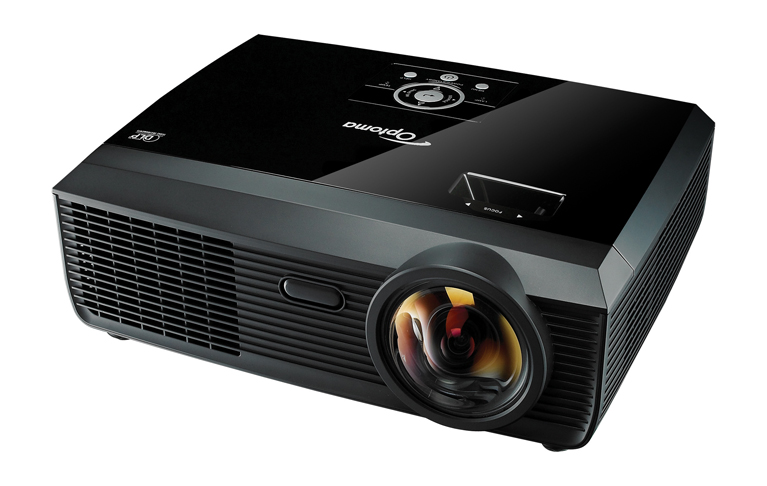

The equipment of the Optoma EW610ST projector includes 3100 ANSI lumens, a contrast of 3000:1 with a WXGA 1280 x 800 display. In operating mode, the installed projector lamp offers a lifespan of 3000 hours. Thanks to its low throw ratio, the model is excellently suited for rooms with limited space. A distance of just 104 cm is sufficient to generate an image width of 2 meters. Regarding projection size, the value of 3100 ANSI lumens allows for an image width of up to 566 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 377 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. A look at the data sheet confirms a very subtle fan noise for the projector at just 29 decibels. Since entering the market in 2010, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" DC3 DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3100
Screen
1240 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
1,0333 min. Lumen
0,414 min. Lumen
Offset
62,4% 16 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Full HD 1080P compatible Freeze Blackboard Modus Eco Mode Kensington Slot sRGB Digital image shift Password protection BrilliantColor™ Remote control with laser pointer und mouse control Control via web browser Lan network compatible. Overscan adjustable Short-throw projector Crestron®-Software compatible. 2x digital zoom
Full HD 1080P compatible
