Brief Introduction
Beta 2.5 |

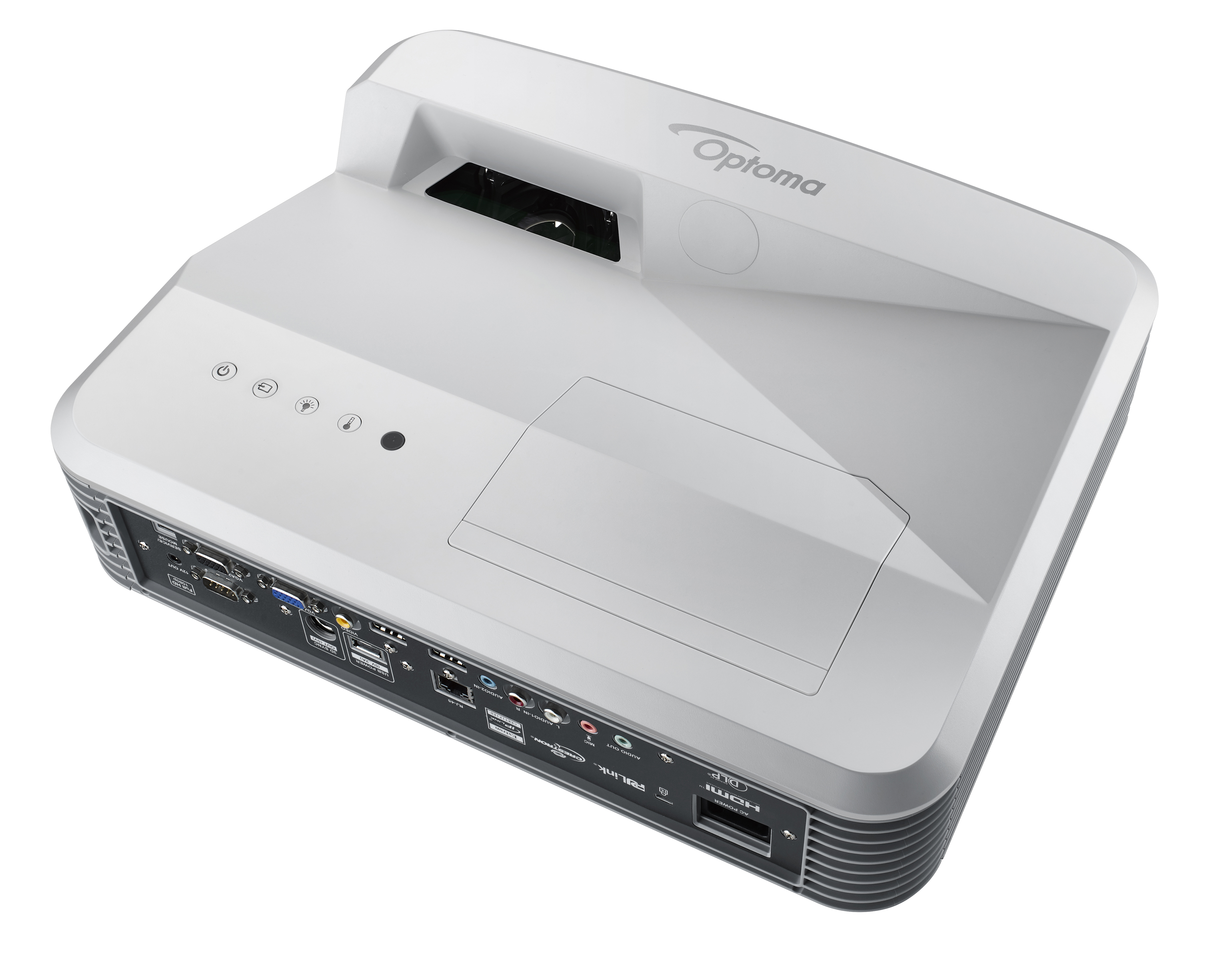

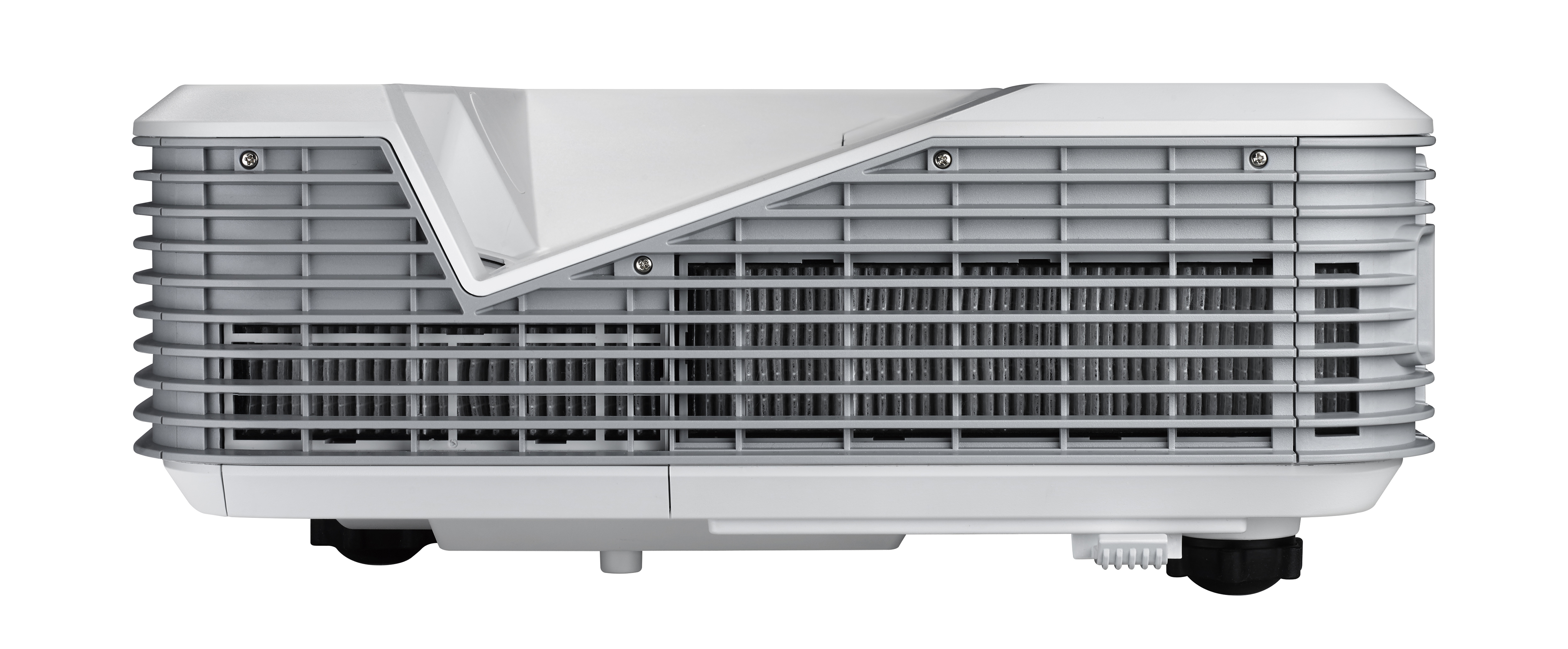

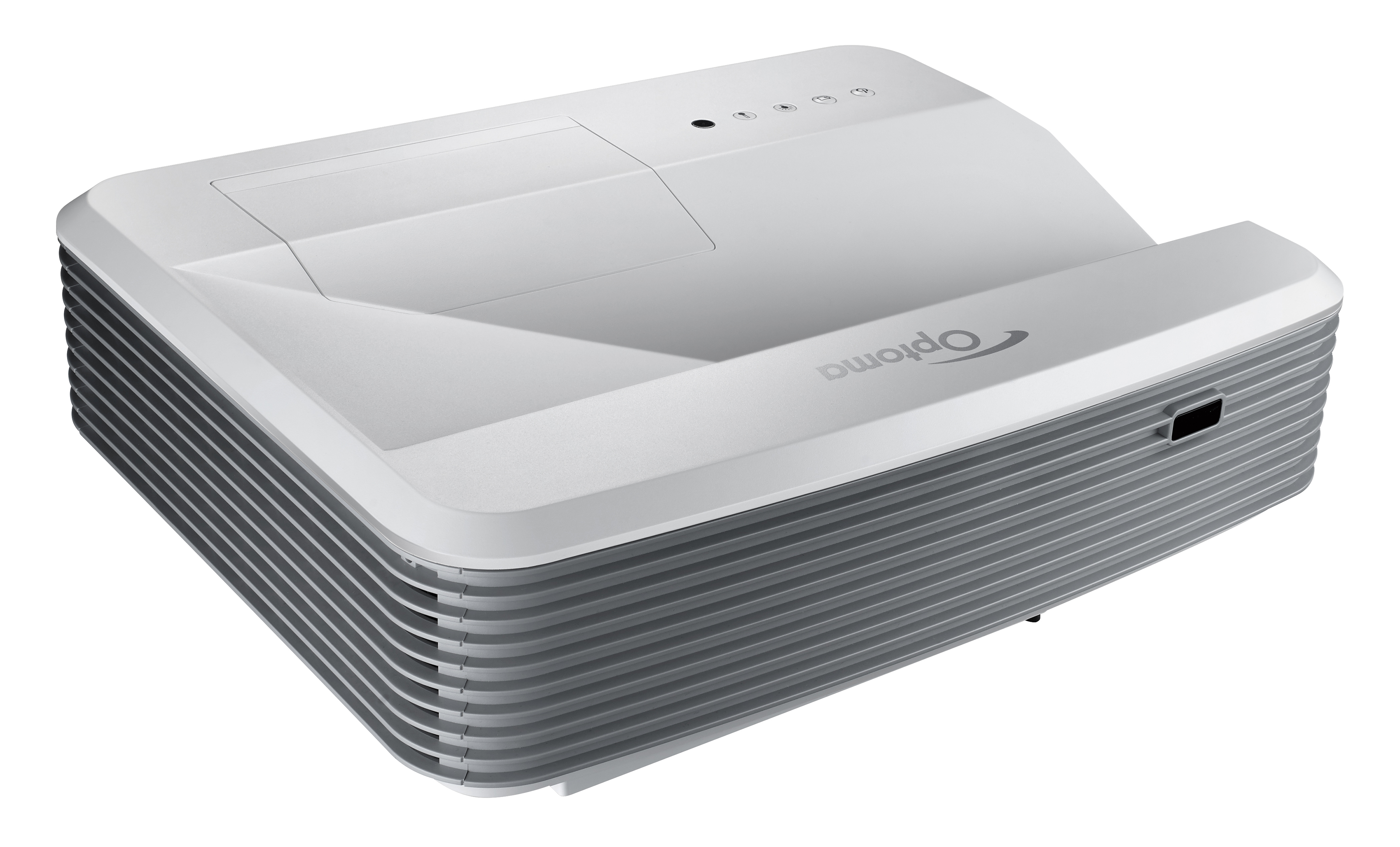

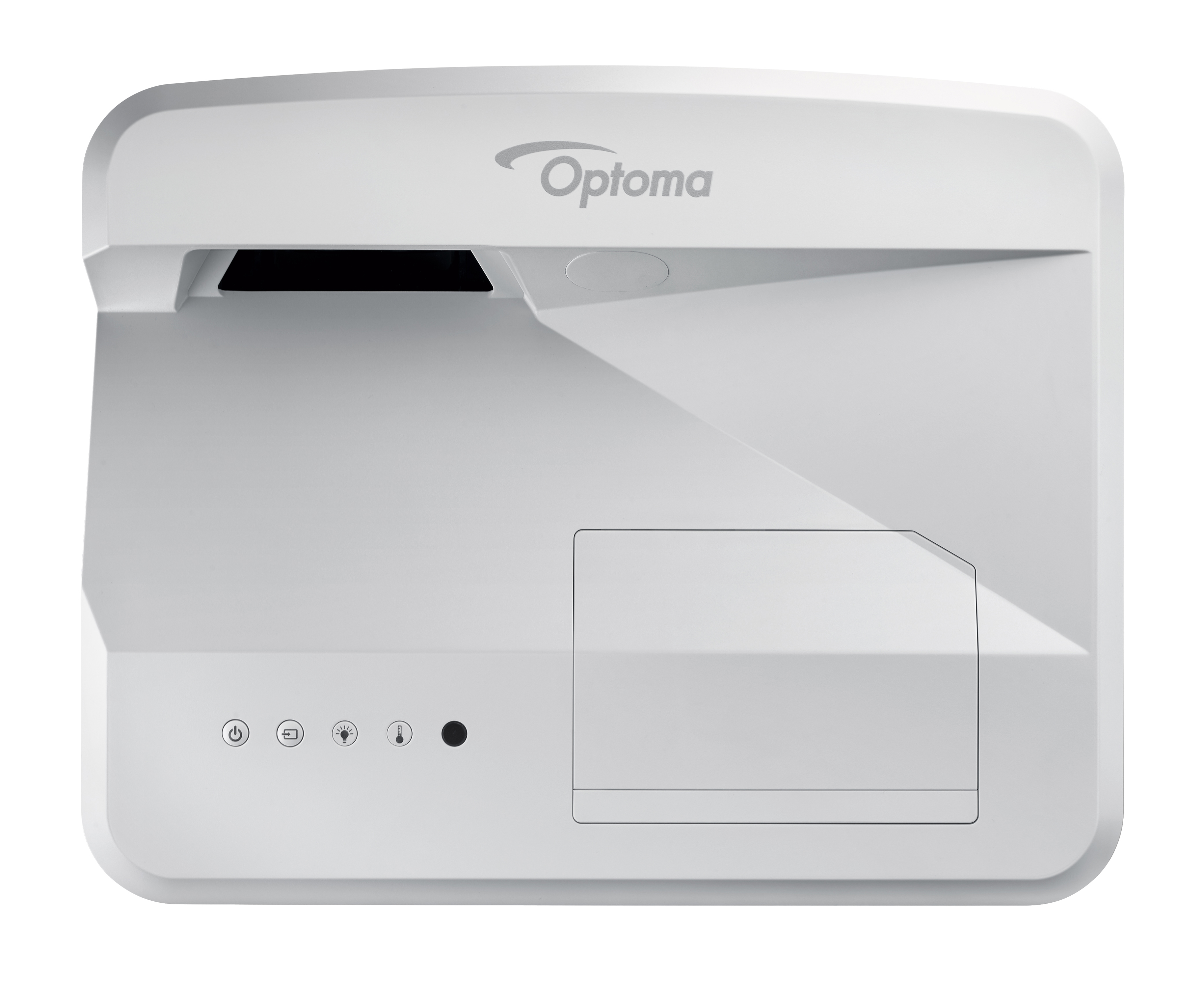

The Optoma W320USTi 3D DLP projector has 4000 Ansi lumens, a contrast of 20000:1 and a WXGA 1280 x 800 resolution. As the W320USTi is equipped with a microphone jack plug and 16W speakers, no additional audio system is required for presentations or training courses. The projector can illuminate images up to 643 cm wide thanks to its 4000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 429 cm. The projector is equipped with an integrated whiteboard function for interactive training and presentations. The projector can also display 1080P and 3D without any problems. The model built in 2015 is no longer offered by Optoma, but is still very popular in our projector database.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,2000 min. Lumen |
0,08 min. Lumen |
| Offset |
65% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Whiteboard | Training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

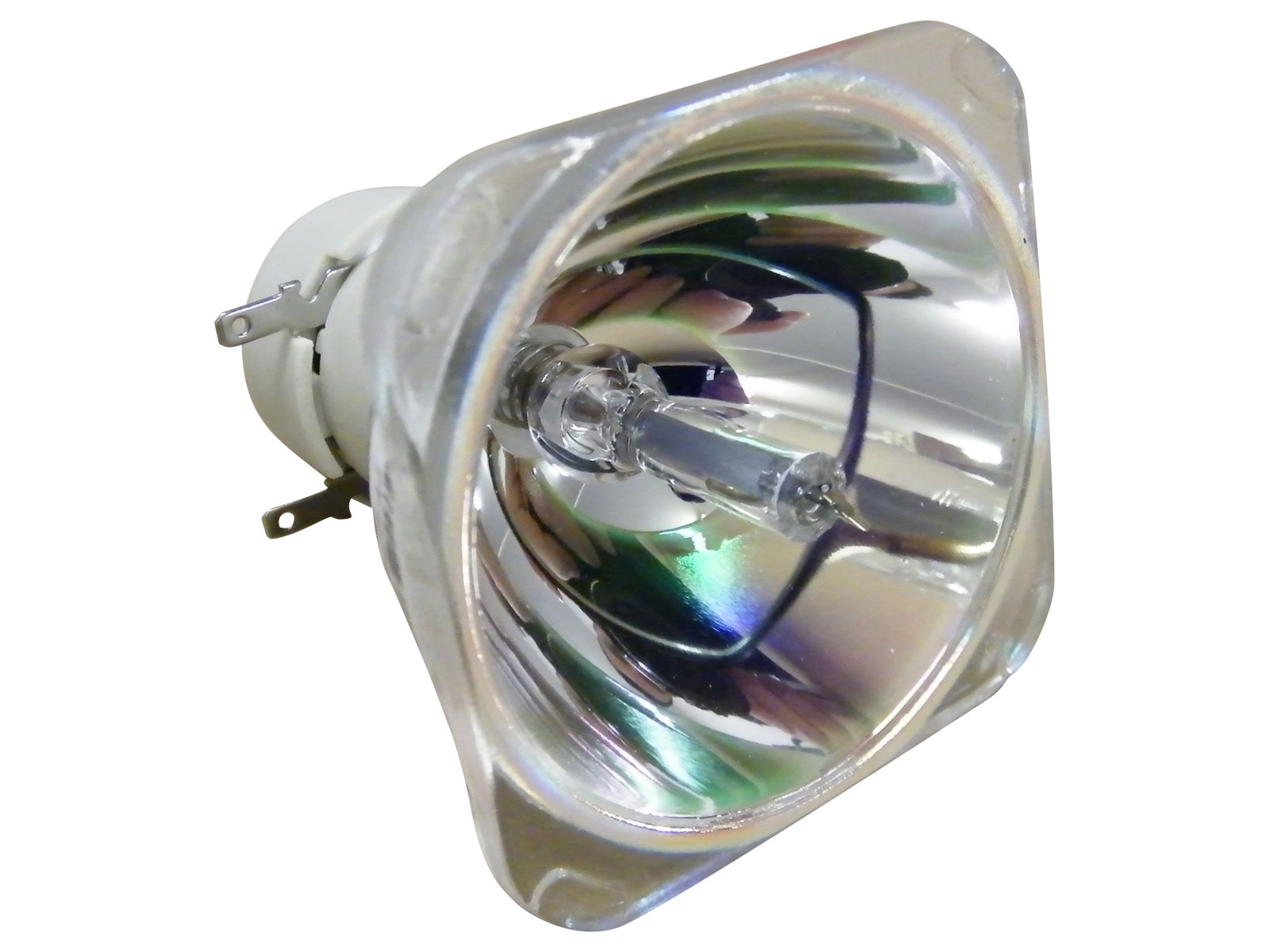

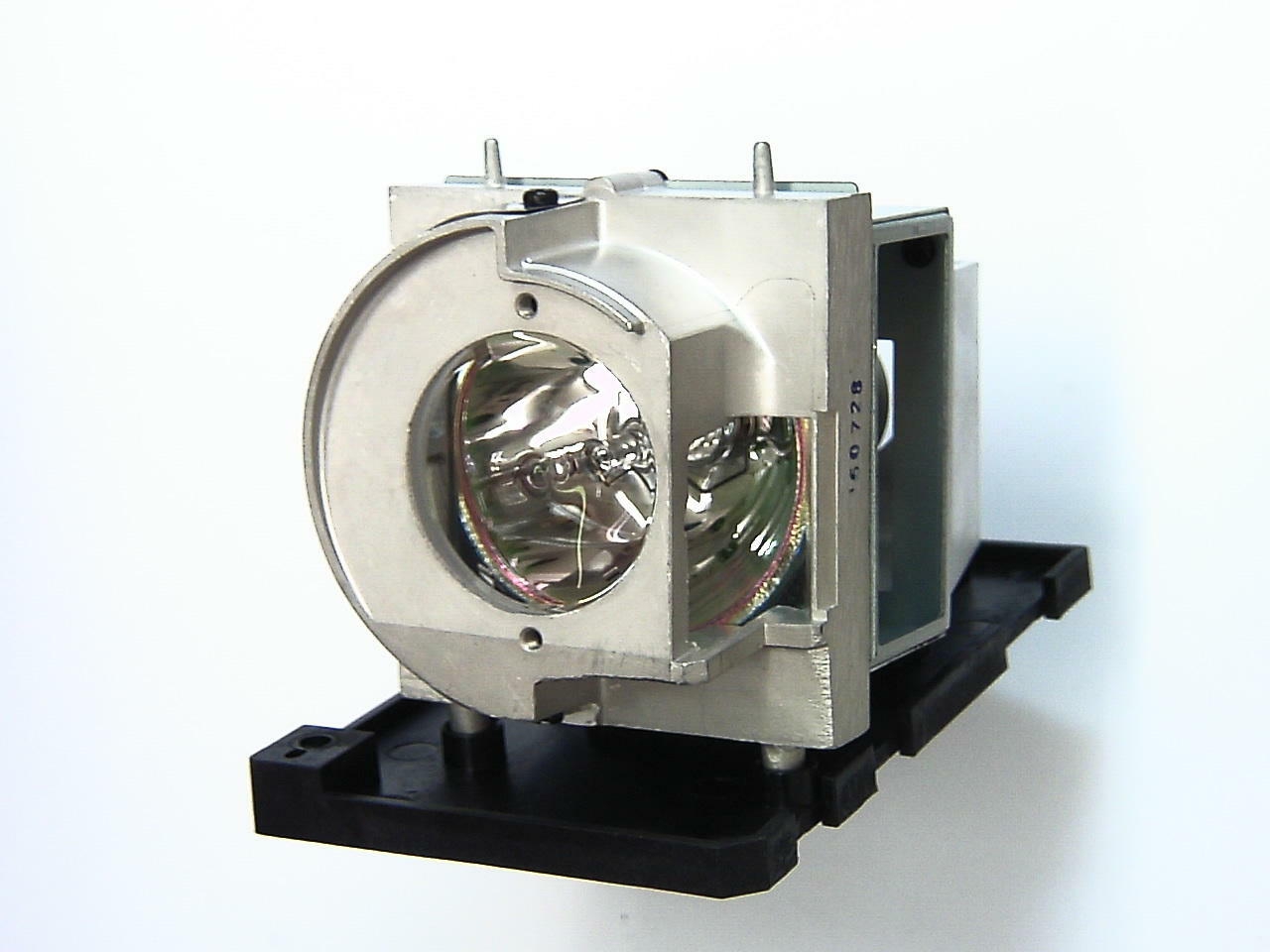

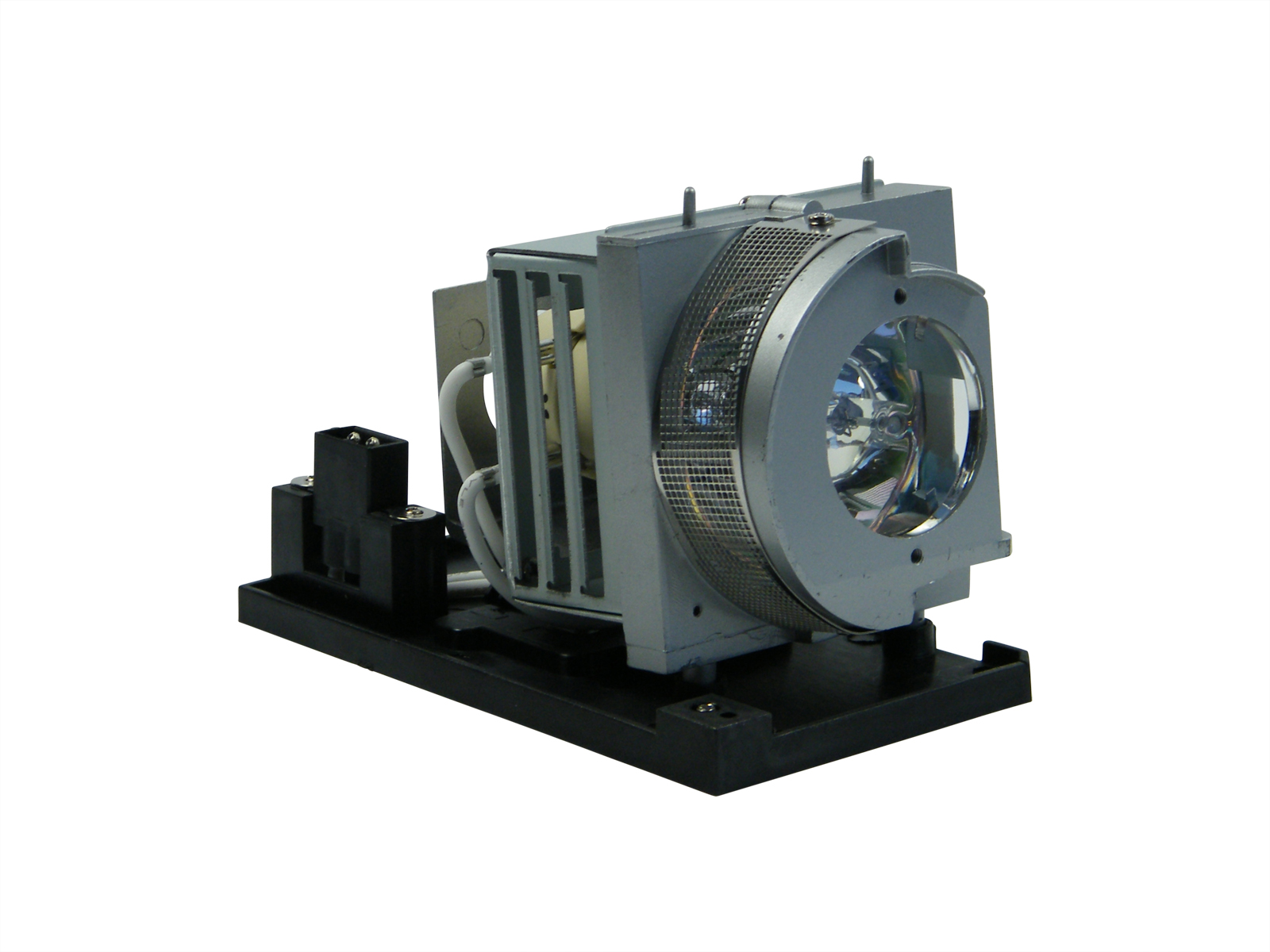

260W Lamp
Article Nr.: SP.72701GC01
|
|
| Light Life |
3000 h. 6500 h. in Eco Mode |
| Operating Costs |
-
|
|
54 cm (no Zoom)
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 81 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,4 f=3,72mm |
| Throw Ratio |
0,27:1 |
| Audio |
16W |

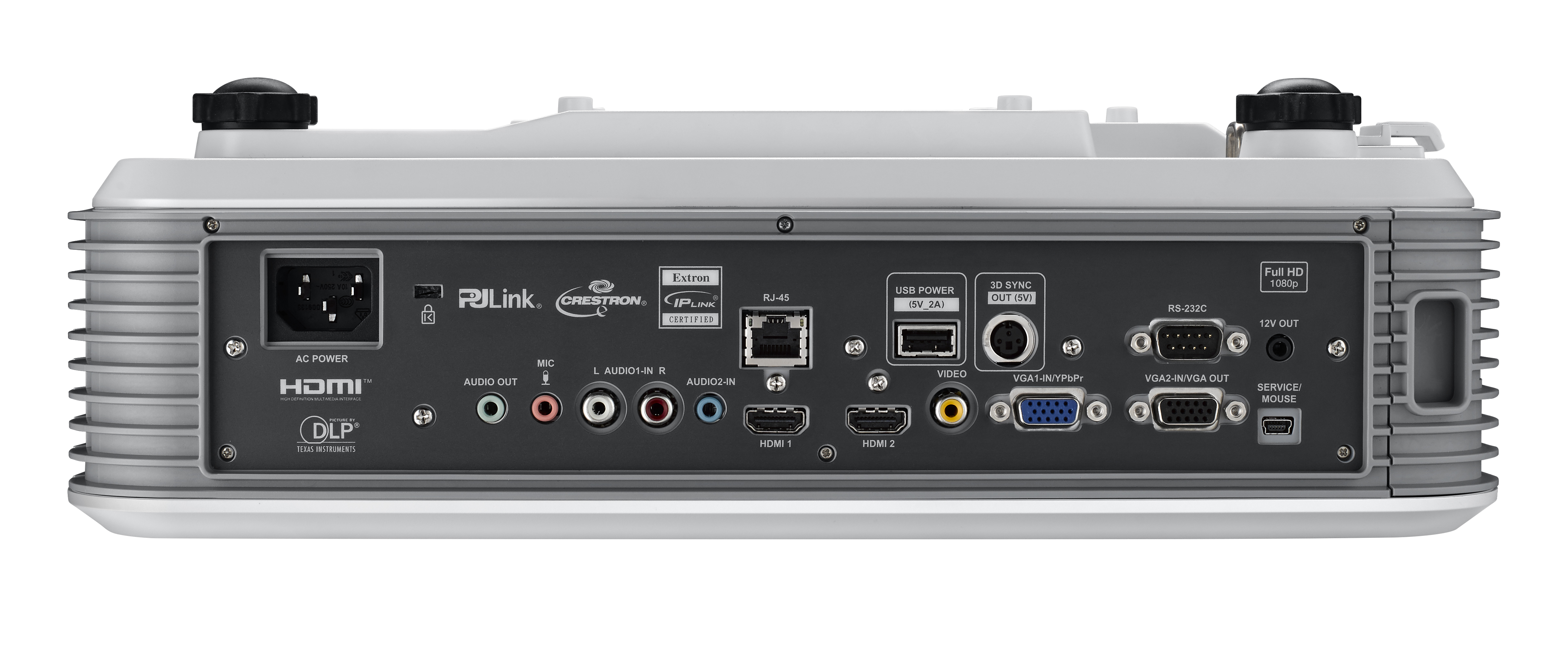

| Connections |
HDMI 1.4a in
2 x D-sub 15pin in 1 x out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
Mikrofon in
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
310 / 260W in Eco Mode |
| Size WxHxD |
385 x 120 x 310 mm (15,2"x4,7"x12,2") 14,32 L/dm³
|
| Operating Noise |
28 dB in Eco Mode |
|
| Weight |
4,85 kg / 10,69 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,37-91,1 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
149 fL
/ max. 643 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
PJLink™
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
Whiteboard function.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma W320USTi compared to others not current "Whiteboard" projectors. |
| Ansi-Lumen: |
|
60 |
Weight: |
|
67 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
97 |
Power cons.: |
|
60 |
| Picture Total Points: | 53 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
34 |
| Ranking: |
92 (From: 297) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-08-04
