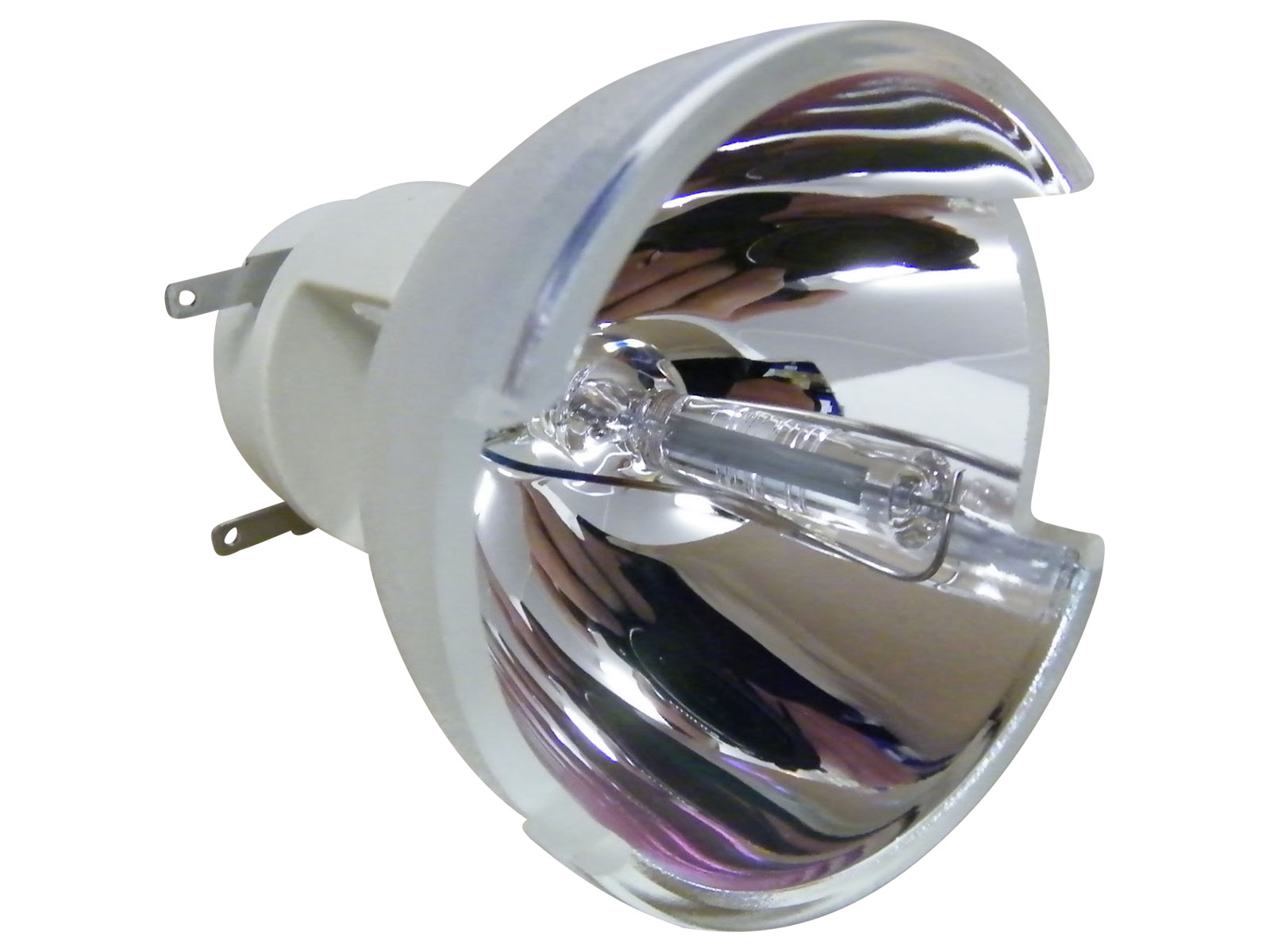

Known as the W505, this 3D-DLP projector by Optoma features basic specs of 5200 ANSI lumens, a contrast of 2000:1 at a WXGA 1280 x 800 resolution. In operating mode, the installed projector lamp offers a lifespan of 1500 hours. The presence of a lens shift function enables flexible vertical or horizontal positioning of the projector. The achievable distances are shown in the Distance Calculator. A look at the light output reveals: The 5200 ANSI lumens are sufficient to illuminate an image width of up to 733 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 489 cm. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Since entering the market in 2013, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2080 Lux
Contrast:
2000:1
Candela pro m²:
661 cd/m²
Foot-Lamberts:
193 fL
88 cm
•
Focus
Powered
Zoom
Powered
Objective
optional
Throw Ratio
optional
Audio
2 x 3W
Connections
HDMI in
DVI-D in
2 x D-sub 15pin in 1 x out
5 x BNC RGBHV in
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
12V Trigge rout
Lens shift Funktion
