Brief Introduction
Beta 2.5 |

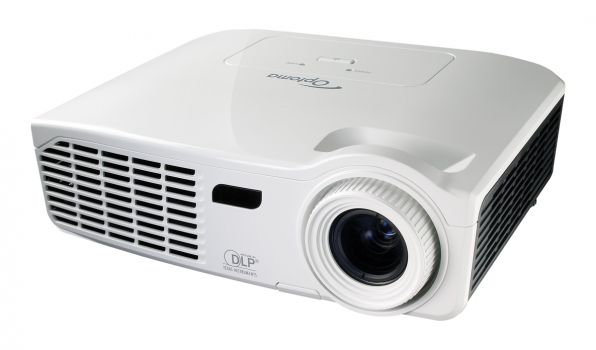

The ES515 3D BrilliantColor DLP projector from Optoma has 2600 Ansi-Lumen, a contrast of 4000:1 and a SVGA 800 x 600 resolution. The projector will be able to illuminate a 444 cm image width well. However, if room light is available, the picture width should ideally not exceed 296 cm. The model is also Full HD 1080P compatible. The model built in 2010 is no longer offered by Optoma.
|
| Display Type |
1 x 0,55" DC3 DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2600 |
Screen |
867 Lux (200 cm Screen width) |
| Contrast |
4000:1 full on/off |
4000:1 full on/off
|
| Black Level |
0,6500 min. Lumen |
0,217 min. Lumen |
| Offset |
69% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
180W Lamp
Article Nr.: DE.5811116320-SOT
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
396 cm (no Zoom)
|
 |
|
Lux: |
867 Lux |
|
Room light max.: |
173 Lux |
|
Candela pro m²: |
278 cd/m² |
|
Foot-Lamberts: |
81 fL |
|
 |
| 104 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,5 |
| Throw Ratio |
1,98:1 |
| Audio |
1 x 2W |
| Connections |
D-sub 15 pin in
Cinch Video in
Mini Jack Audio
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
230 / 205W in Eco Mode |
| Size WxHxD |
263,8 x 78,7 x 189 mm (10,4"x3,1"x7,4") 3,88 L/dm³
|
| Operating Noise |
31 / 28 dB in Eco Mode |
|
| Weight |
1,90 kg / 4,19 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
80% |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 43-120 Hz
|
| Foot-Lamberts |
81 fL
/ max. 444 cm screen width |
| Candela m² |
278 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Digital image shift
Password protection
BrilliantColor™
Overscan adjustable
|
|
- |
In Comparison
The Optoma ES515 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
31 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
46 |
| Black level: |
|
98 |
Power cons.: |
|
98 |
| Picture Total Points: | 43 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4712 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
