Optoma HD83

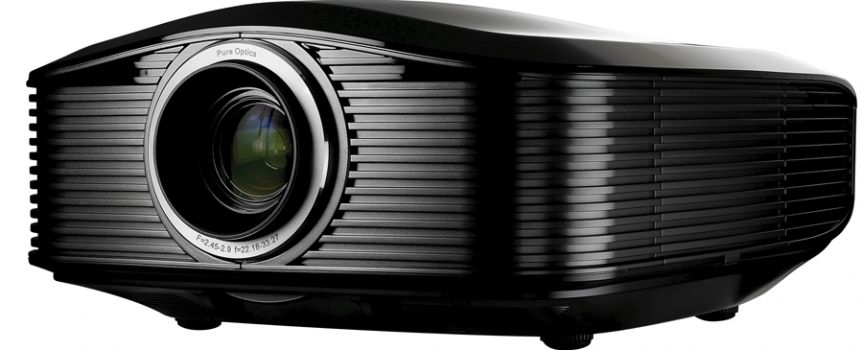

Image Optoma HD83
Customer review
5 from 5 Stars 2 Reviews
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on DLP technology, the Optoma HD83 projects images in a High-End Homecinema environment, with technical specs listing 1500 ANSI lumens, a contrast of 50000:1 and a HDTV 1920 x 1080 resolution. In operating mode, the installed projector lamp offers a lifespan of 3000 hours.
Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Projection Calculator helps find the optimal installation dimensions.
Looking at practical performance, up to 393 cm can be illuminated with 1500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 262 cm.
For media input, video signals up to 1080P as well as 3D are supported.
A look at the data sheet confirms a very subtle fan noise for the projector at just 28 decibels. Since entering the market in 2011, production has been discontinued; the manufacturer no longer actively offers the model. In our projector directory, the device still generates high interest.
Display Type       1 x 0,65" DC3 DLP Chip
      HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1500
Screen
667 Lux (200 cm Screen width)
Contrast 50000:1 full on/off 50000:1 full on/off
Black Level 0,0300 min. Lumen 0,013 min. Lumen
Lens shift Vert.: +80% --55% Hori.: +/-15%
 Lens shift
25%  28cm
15%  30cm
15%  30cm
+ Projector 6 cm over screen top edge.
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray
3D Compatibility
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application High-End Homecinema | Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 280W P-VIP Lamp
Article Nr.: BL-FP280F
Order Lamp
102,66 102,66 €
Light Life 3000 h. 4000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
298 - 456 cm
Lux: 667 Lux
Contrast: 50000:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL
90 cm



Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,5
Objective F=2,45-2,9 f=22,18-33,27 mm
Throw Ratio 1,49-2,28:1 show
Audio Nein
Connections 2 x HDMI 1.4a in
DVI-D in
D-sub 15 pin in
YUV in
S-Video in
2 x 12V Trigger out
RS232 Din 9 pin
USB Typ B
VESA 3D Port
Ceiling Mounting Yes, is possible.
Power 375 / 315W in Eco Mode
Size WxHxD 490 x 194 x 372 mm (19,3"x7,6"x14,6") 35,36 L/dm³
Operating Noise 28 / 22 dB in Eco Mode
Key: 81 cm
Shift: 90 cm

Shift: 30 cm

Shift: 30 cm
Key: -29 cm
Shift: -62 cm

Weight 8,40 kg / 17,64 lbs.
Keystone Vert.: +/-5°
Illumination 85%
Frequenz H-sync: 15,3-91,1 kHz
V-sync: 24-85 Hz
Foot-Lamberts 62 fL / max. 393 cm screen width
Candela m² 212 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
Gamma correction
Digital image shift
BrilliantColor™
Remote control with backlight
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Optoma HD83 compared to others not current "High-End Homecinema" projectors.
Ansi-Lumen:
11 Weight:
88
Contrast:
3 dB:
69
Black level:
99 Power cons.:
87
Picture Total Points:38 Projector Total Points:81
Popularity Top 100
7 popularity points 24 popularity points 22 popularity points 5 popularity points 9 popularity points 15 popularity points
Points:
15
Ranking: 132 (From: 508)
In Test -
Optional accessories
Osram bulb only NLMP20581102,66 €
lamp OriginalBL-FP280F / SP.8LL01GC01EOL €
Universal Remote Fernb-uni-V322,31 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2011 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Optoma Website
Product Sheet english
Product Sheet english
Product Sheet english HC
Quick Start Guide
User Manual english (19.03 MB)


Popular Alternatives
1500   ANSI-Lumen
PF1500/GPF1000UTPF1000ULB-9500.fhd (NX-6111-919)FP-371B
Model PF1500/GPF1000UTPF1000ULB-9500.fhd (NX-6111-919)FP-371B
Ansi-Lumen 140010001000400216
Specifications HDTV LED 3D MPHDTV LED 0.29:1 Bluetooth 3D MPHDTV LED 0.29:1 Bluetooth 3D MPHDTV LED WLAN MPHDTV LED 0.2:1 LAN WLAN 3D
Compare CompareCompareCompareCompareCompare


All: 5 from 5 Stars 2 Reviews

Autor: 23.03.18
5 Stars Cool device
I recently got the device as a replacement for my HD151X. You can clearly see where the HD83 is located, namely in the high-end home cinema class, and that‘s where it really shines. In my opinion, the HD83‘s picture is on a par with a Mitsubishi HC5, HC9000 or HC7800, apart from the absolute black level, and subjectively better than a JVC DLA X30. The 3D reproduction via the Optoma RF glasses is second to none, no ghosting, absolutely top! The lens shift could certainly have been a little more generous, but in most cases that should be enough
My conclusion: if someone is looking for a top projector for little money - every now and then you can find very well-preserved specimens for little money - just go for it, you won‘t get the HD83 cinema picture any better or cheaper!
Autor: 15.12.11
5 Stars An absolutely great device
I recently got the new HD83 from Optoma including the 3D-RF glasses and am absolutely delighted with the great picture in 2D and 3D. The lens/shift is not very large but should be sufficient in most cases.
