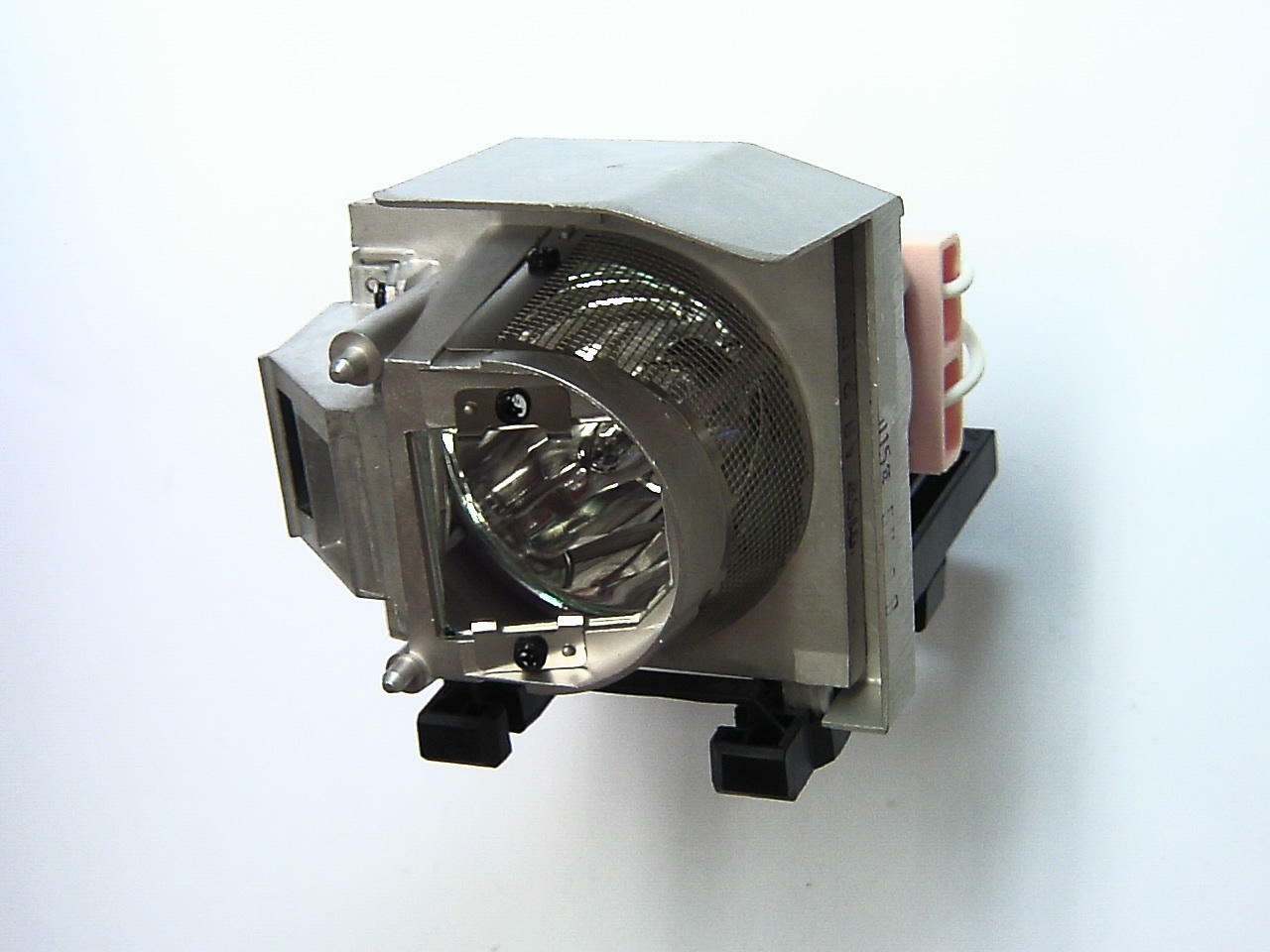

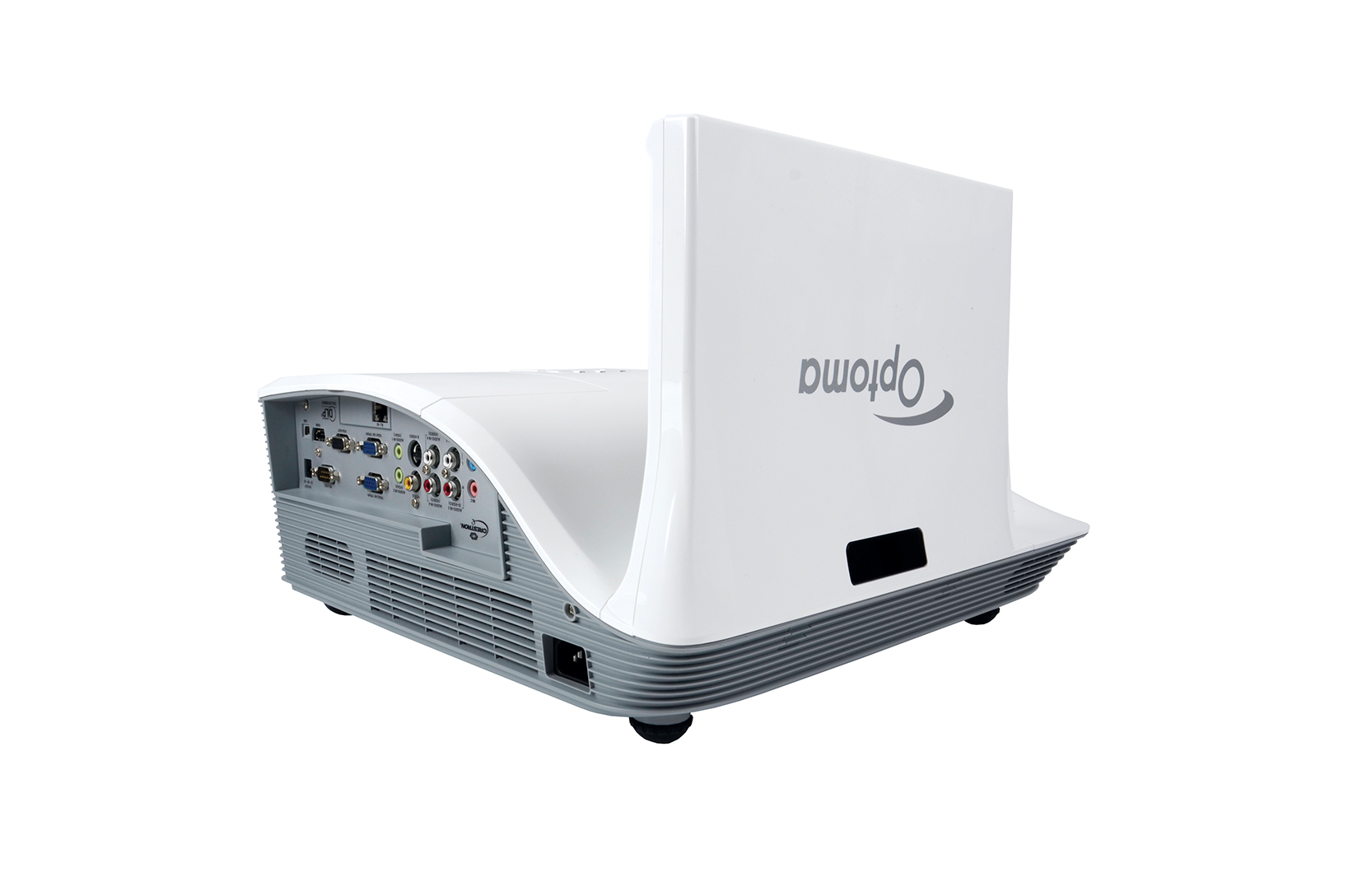

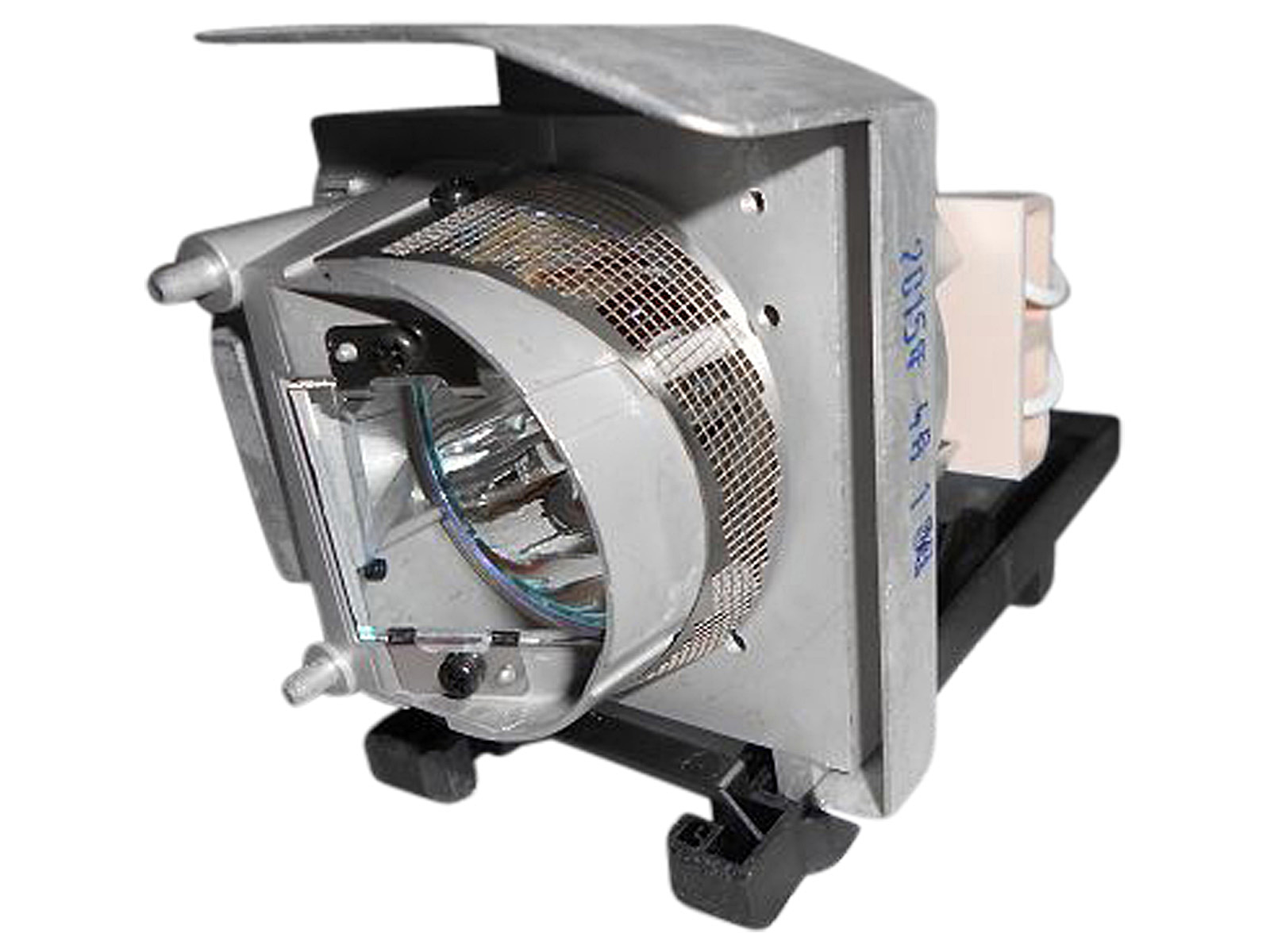

The projector W307UST by Optoma operates as a 3D-DLP device with 3300 ANSI lumens, a WXGA 1280 x 800 resolution and a contrast of 15000:1. In operating mode, the installed projector lamp offers a lifespan of 3000 hours. With its built-in wide-angle optics, the device belongs to the category of short-throw projectors. An image width of 2 meters is realized from a short distance of 70 cm. A look at the light output reveals: The 3300 ANSI lumens are sufficient to illuminate an image width of up to 584 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 389 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. This model dates back to 2013 and is no longer part of Optoma's current product range.
Display Type
1 x 0,65" DC3 DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3300
Screen
1320 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,2200 min. Lumen
0,088 min. Lumen
Offset
75% 32 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel UXGA 1600 x 1200 compressed
Calculated brightness quality The screen width may also be larger. Perfect
70 cm (no Zoom)
Lux:
1320 Lux
Contrast:
15000:1
Candela pro m²:
421 cd/m²
Foot-Lamberts:
123 fL
94 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,6 f=7,35mm
Throw Ratio
0,35:1
Audio
10W

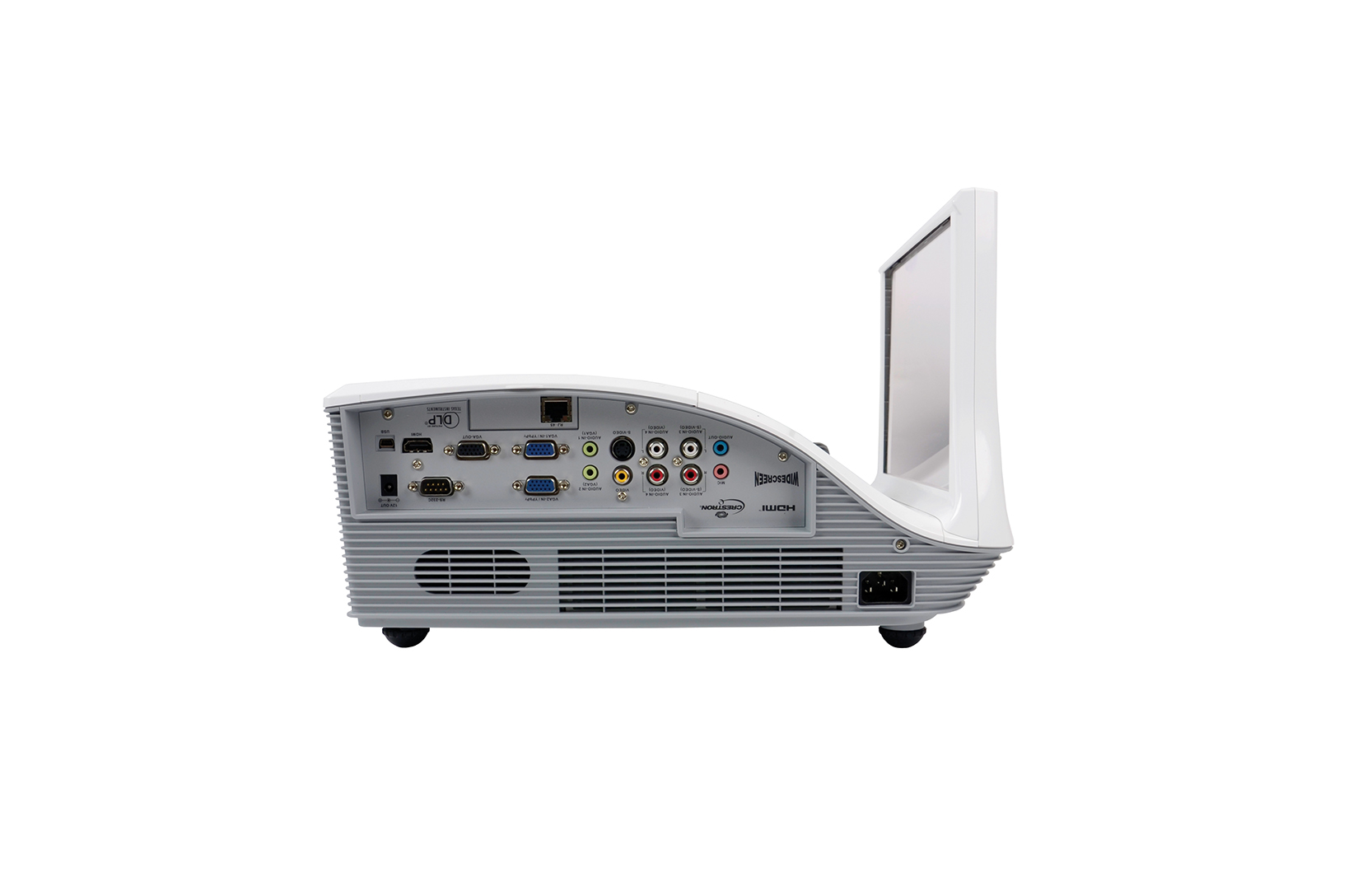

Connections
HDMI 1.4a in
2 x D-sun 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RJ45 in
RS232C Din 9 pin in
12V Trigger out
Mikrofon in

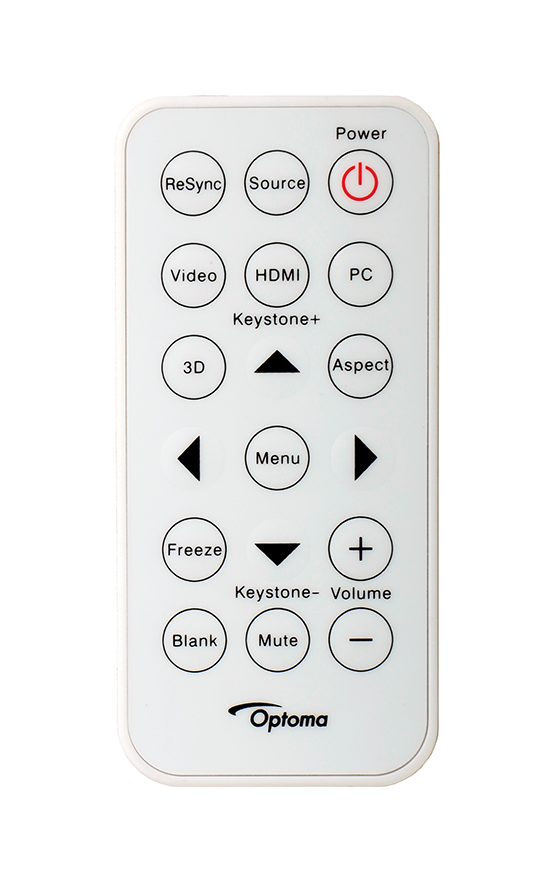

Real Full HD 3D Full HD 1080P compatible Eco Mode Kensington Slot Password protection Remote control with laser pointer Lan network compatible. Short-throw projector Crestron®-Software compatible.
Real Full HD 3D
