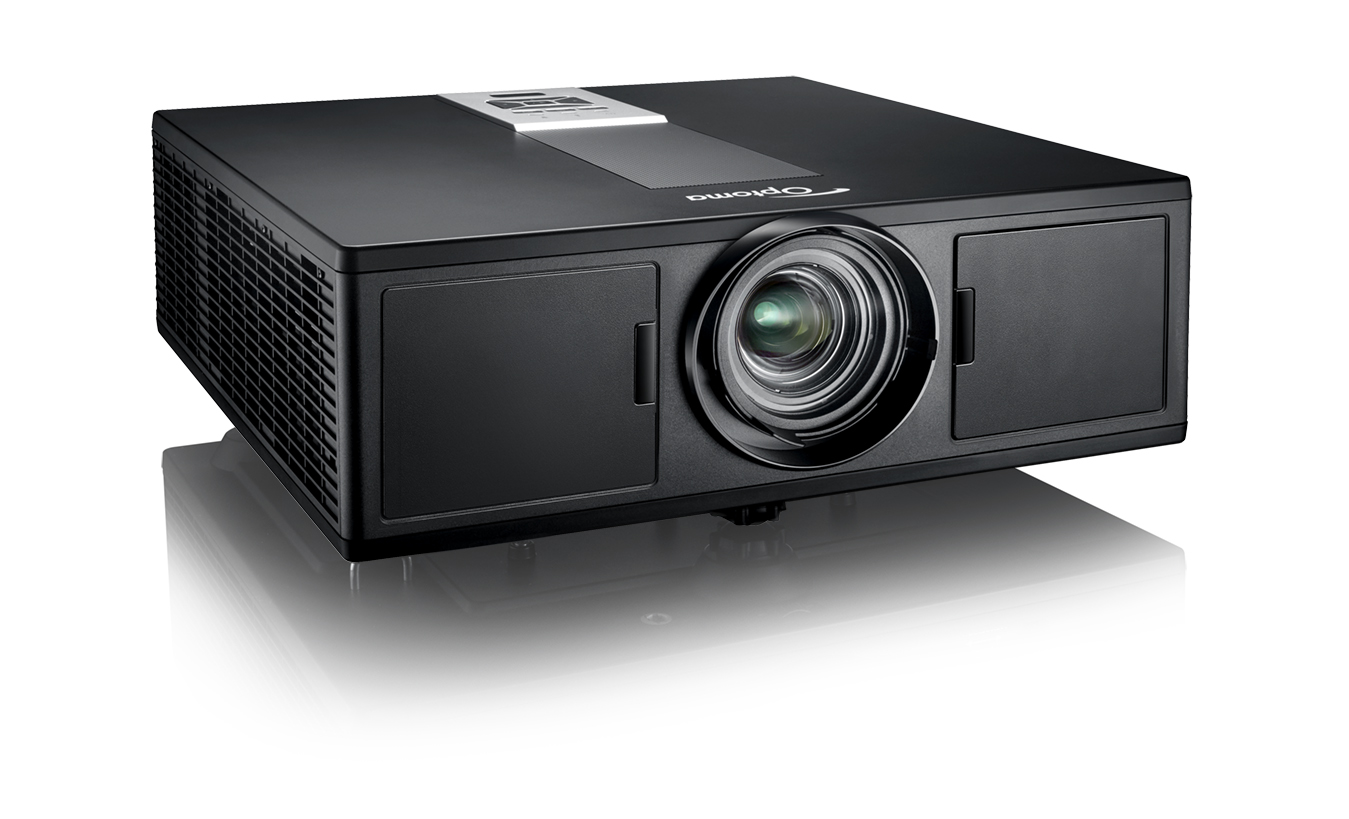

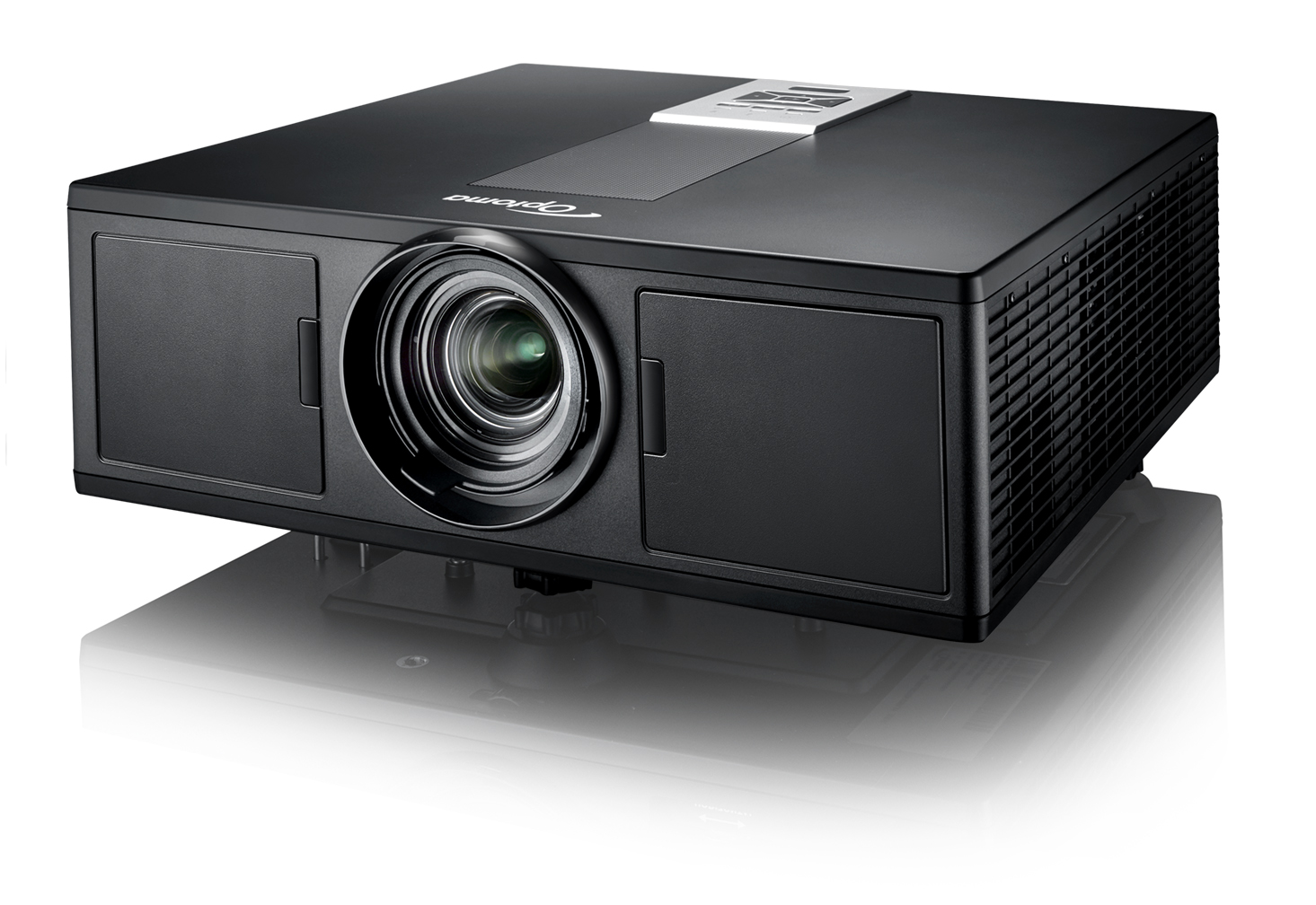

The hardware properties of the ZX500TST manufactured by Optoma include 5500 ANSI lumens, a XGA 1024 x 768 resolution and a contrast value of 300000:1. The manufacturer lists the lifespan for this model at 20000 hours – calculating to 13.7 years at four hours of use per day. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction. Precise setup distances can be determined in the Projector Calculator. A look at the light output reveals: The 5500 ANSI lumens are sufficient to illuminate an image width of up to 646 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 431 cm. For media input, video signals up to 1080P as well as 3D are supported, and also offers the technical capability for 360° projection. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. Regarding noise emissions, the model proves to be exceptionally quiet during operation, producing just 28 decibels. The projector was released in 2018 and is officially no longer distributed by Optoma.
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Calculated brightness quality The screen width may also be larger. Perfect
164 cm (no Zoom)
Lux:
1833 Lux
Contrast:
300000:1
Candela pro m²:
582 cd/m²
Foot-Lamberts:
170 fL
105 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,49 f=11,66mm
Throw Ratio
0,82:1
Audio
2 x 10W
Connections
2 x HDMI in (1 x MHL)
D-sub 15pin in und out
Microphone
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
HdBaseT
3D Syncout
Wired Remote
12V Out
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot 360° installable PJLink™ Lan network compatible. Short-throw projector Crestron®-Software compatible.
Real Full HD 3D
