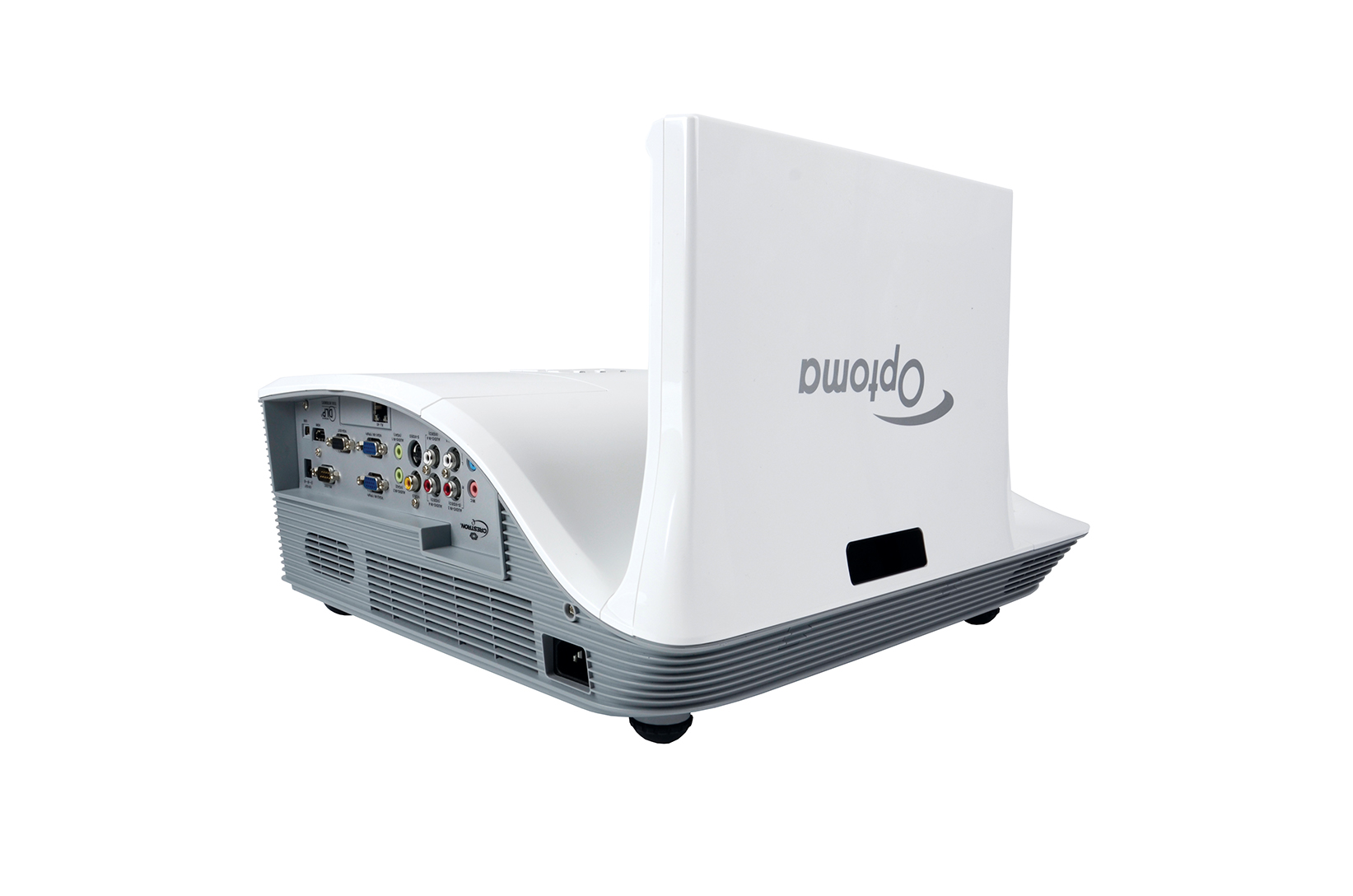

Behind the name X307UST is a 3D-DLP projector by Optoma, whose main features include 3100 ANSI lumens, a contrast of 15000:1 and a XGA 1024 x 768 resolution. According to Optoma, the included lamp lasts up to 3000 hours. With its built-in wide-angle optics, the device belongs to the category of short-throw projectors. An image width of 2 meters is realized from a short distance of 86 cm. A look at the light output reveals: The 3100 ANSI lumens are sufficient to illuminate an image width of up to 485 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 323 cm. For media input, video signals up to 1080P as well as 3D are supported. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. Since entering the market in 2013, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,55" DC3 DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3100
Screen
1033 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,2067 min. Lumen
0,069 min. Lumen
Offset
78% 42 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Calculated brightness quality The screen width may also be larger. Perfect
86 cm (no Zoom)
Lux:
1033 Lux
Contrast:
15000:1
Candela pro m²:
329 cd/m²
Foot-Lamberts:
96 fL
117 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,6 f=7,017mm
Throw Ratio
0,43:1
Audio
10W

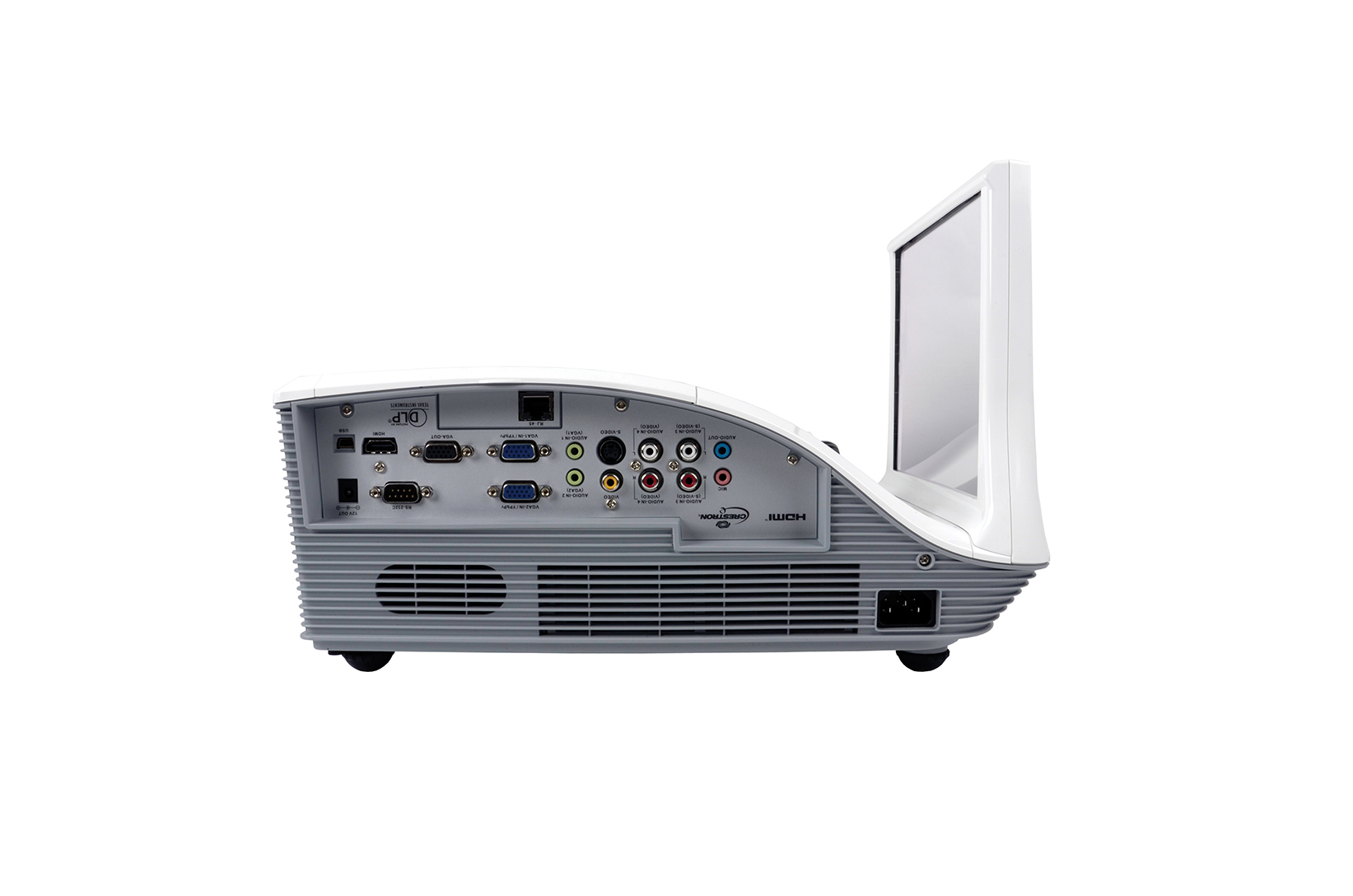

Connections
HDMI 1.4a in
2 x D-sun 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RJ45 in
RS232C Din 9 pin in
12V Trigger out
Mikrofon in
Real Full HD 3D Full HD 1080P compatible Eco Mode Kensington Slot Password protection Remote control with laser pointer Lan network compatible. Short-throw projector Crestron®-Software compatible.
Real Full HD 3D
