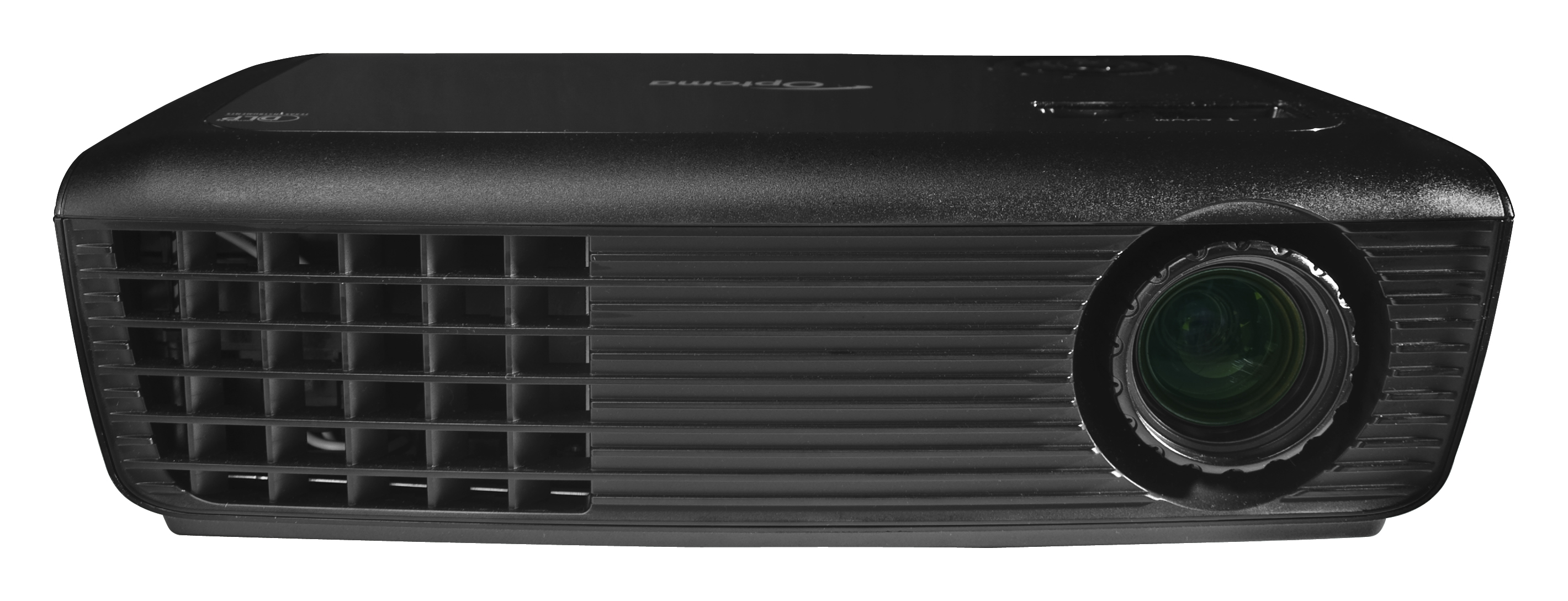

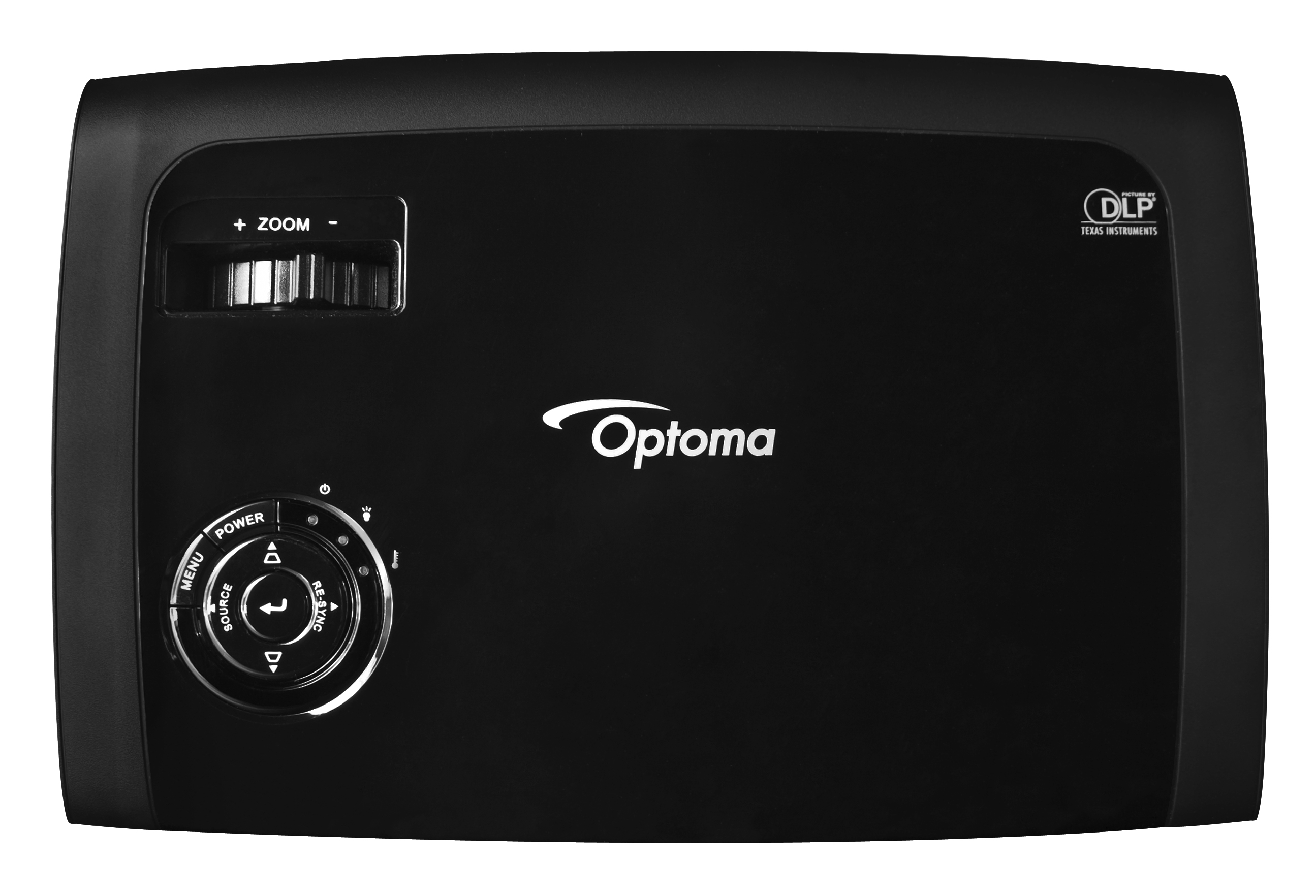

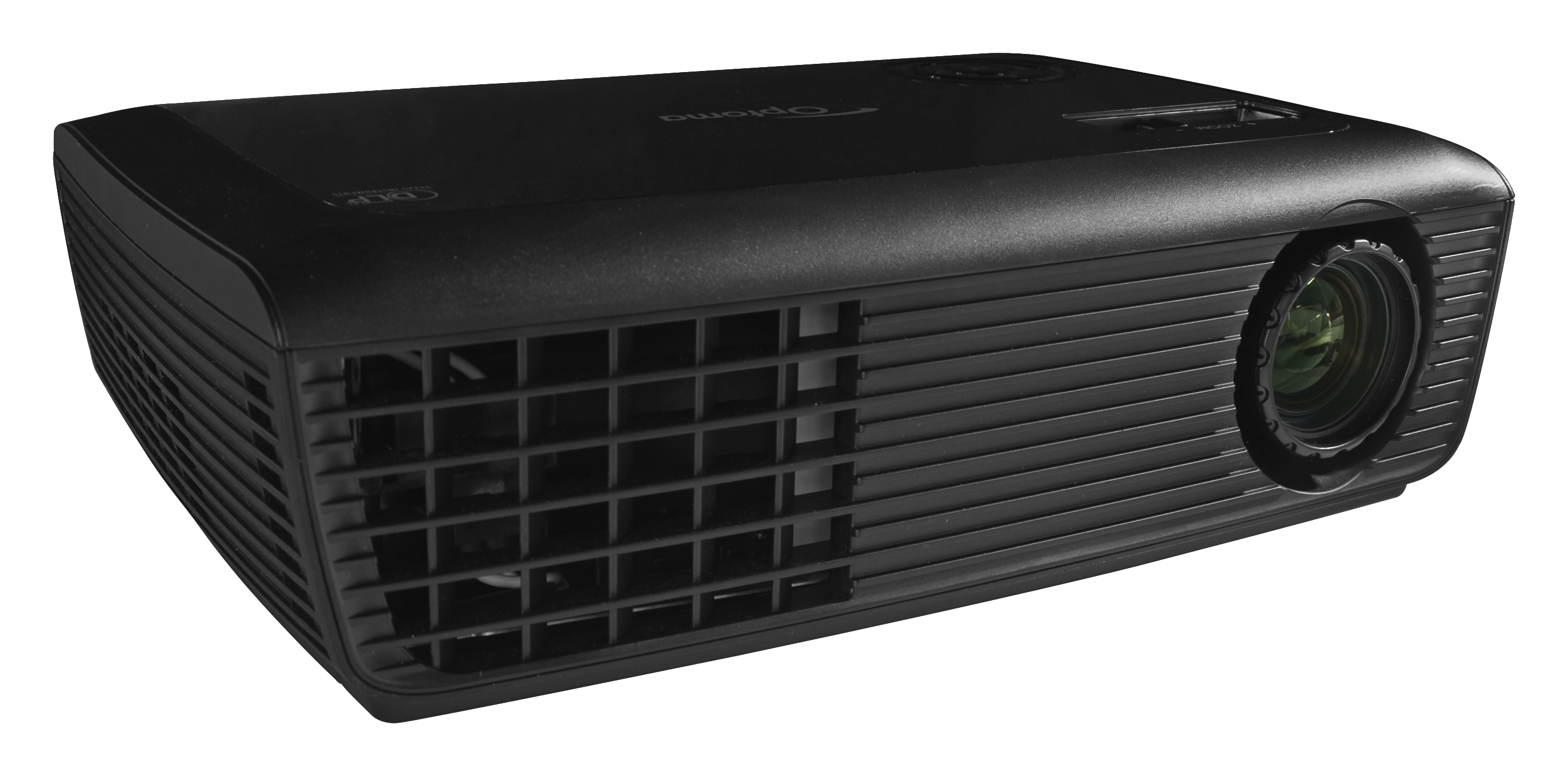

This projector is named DS323, originates from Optoma, and its data sheet shows 2800 ANSI lumens, a contrast of 3000:1 and a resolution of SVGA 800 x 600. According to Optoma, the lamp has a durability of 3000 hours. A look at the light output reveals: The 2800 ANSI lumens are sufficient to illuminate an image width of up to 461 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 307 cm. Regarding signal processing, the model is compatible with incoming 1080P content. A look at the data sheet confirms a very subtle fan noise for the projector at just 30 decibels. Since entering the market in 2011, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,55" DLP Chip SVGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2800
Screen
933 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
0,9333 min. Lumen
0,311 min. Lumen
Offset
65% 23 cm over screen top edge →
SCREEN
+Projector
Resolution
SVGA 800 x 600
480.000 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
