A projector from Christie is the MIRAGE WU3, whose 3D-DLP model delivers 3000 ANSI lumens, a resolution of WUXGA 1920 x 1200 and a contrast of 2000:1. The manufacturer lists the lamp life at 1500 hours. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Distance Calculator. Looking at practical performance, up to 556 cm can be illuminated with 3000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 371 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2009 and is officially no longer distributed by Christie.
Display Type
3 x 0,95" DC3 DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3000
Screen
1333 Lux (200 cm Screen width)
Contrast
1500-2000:1 full on/off / 450:1 nach ANSI
1500-2000:1 full on/off / 450:1 nach ANSI
Black Level
2,0000 min. Lumen
0,89 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel QXGA 2048 x 1536 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source

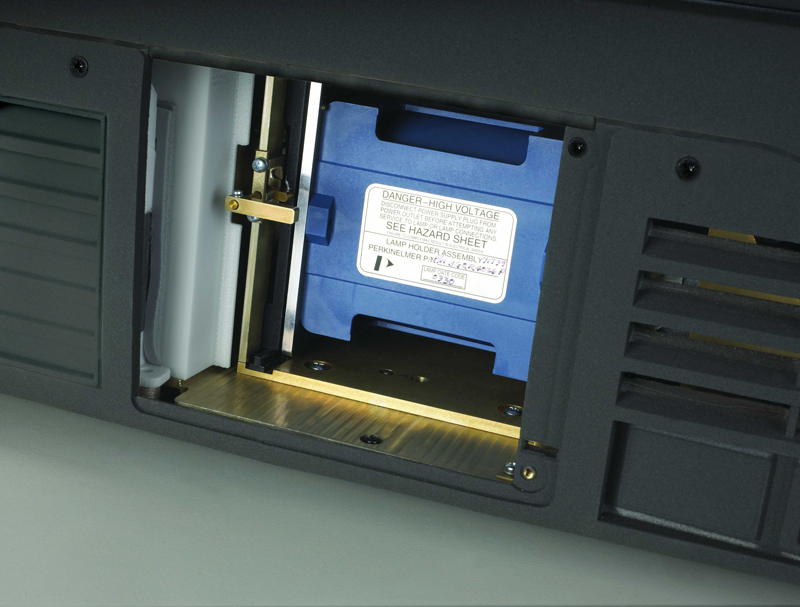

500W Lamp
Light Life
1500 h.
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
1333 Lux
Contrast:
1500-2000:1
Candela pro m²:
425 cd/m²
Foot-Lamberts:
124 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein

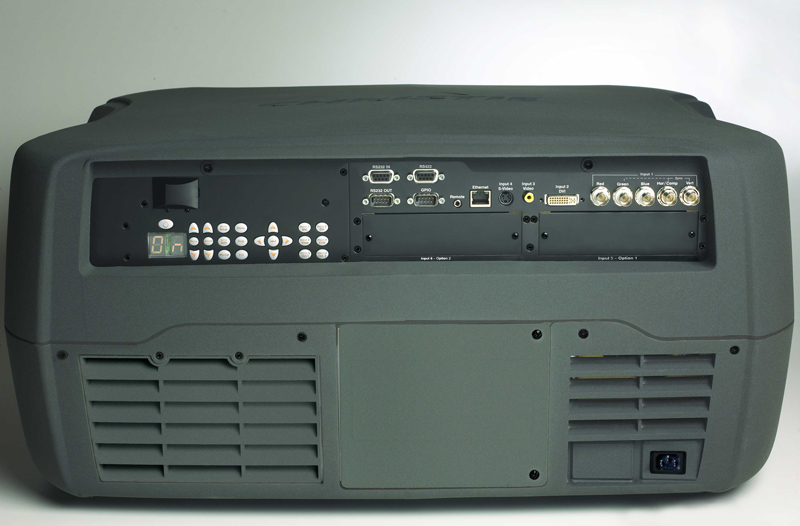

Connections
DVI-I in
5 x BNC RGBHV in
S-Video in
Cinch Video in
3 x RS232C in
RS422 in
RJ45
Full HD 1080P compatible Freeze Gamma correction Dynamic iris Edge Blending Picture-in-Picture Password protection Remote control with laser pointer Lan network compatible.
Full HD 1080P compatible
