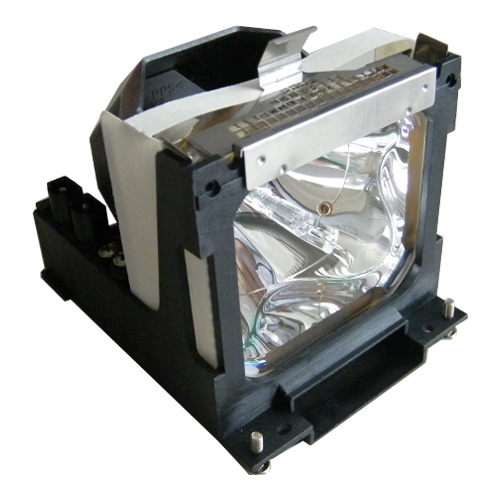

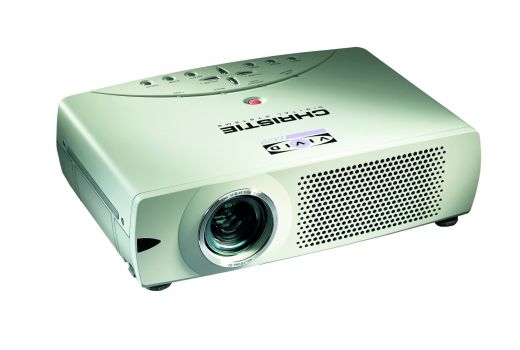

Based on LCD technology, the Christie Vivid LX20 projects images in a Standard-Portabel environment, with technical specs listing 2000 ANSI lumens, a contrast of 350:1 and a XGA 1024 x 768 resolution. According to Christie, the included lamp lasts up to 2000 hours. A look at the light output reveals: The 2000 ANSI lumens are sufficient to illuminate an image width of up to 389 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 259 cm. Since entering the market in 2002, production has been discontinued; the manufacturer no longer actively offers the model.
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Input 1:
Digital RGB (24 pin DVI-D) or Analog RGB (15pin D-sub). Audio Input (1 x 3.5 mini stereo)
Input 2 :
Composite (RCA), YPbPr und YUV video (3 RCA connectors). S-Video (4 pin mini - DIN). Audio Input (2x RCA L/R) Control Port Input: (mini DIN 8-pin x1, USB type B x 1)
Outputs
Single built in 1-way speaker Audio ouput RCA x2 (L/R)
Ceiling Mounting
Yes, is possible.
Power
300W
Size WxHxD
333 x 88,5 x 230 mm (13,1"x3,5"x9,1") 6,74 L/dm³
Operating Noise
37dB
Weight
3,90 kg / 8,6 lbs.
Keystone
-
Illumination
85%
Frequenz
H-sync: 15-100 kHz V-sync: 50-100 Hz Range max.: 140 MHz
Freeze
