Christie LW555

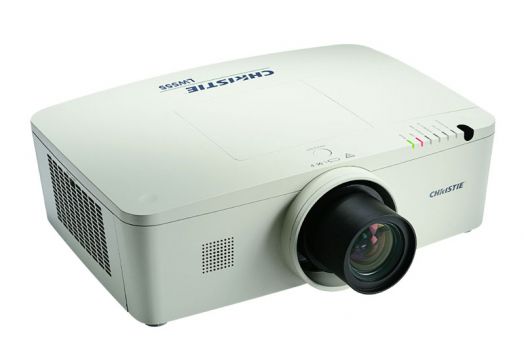

Image Christie LW555
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The Christie LW555 is a LCD projector offering 5500 ANSI lumens, a contrast of 800:1 and a resolution of WXGA 1280 x 800. The manufacturer rates the durability of the included lamp at 2000 hours.
To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projection Calculator.
Regarding projection size, the value of 5500 ANSI lumens allows for an image width of up to 753 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 502 cm.
Regarding signal processing, the model is compatible with incoming 1080P content. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
The projector was released in 2010 and is officially no longer distributed by Christie. This model continues to hold a solid place in our database search queries.
Display Type       3 x 0,75" LCD TFT Panel mit MLA
      WXGA 16/10 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
5500 / 4400 im Eco Mode
Screen
2200 Lux (200 cm Screen width)
Contrast 800:1 full on/off 800:1 full on/off
Black Level 6,8750 min. Lumen 2,759 min. Lumen
Lens shift Vert.: +/-70% Hori.: +/-10%
 Lens shift
70%  88cm
70%  88cm
10%  20cm
10%  20cm
+ Projector
Resolution WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 330W NSH Lamp
Article Nr.: 003-120507-01
Order Lamp
61,94 - 167,78 €
Light Life 2000 h. 3000 h. in eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
334 - 562 cm
Lux: 2200 Lux
Contrast: 800:1
Candela pro m²: 699 cd/m²
Foot-Lamberts: 204 fL
88 cm


Screen width:cm
          Room:
Focus Powered
Zoom Powered 1,69
Objective F=1,7-2,3 f=26,9-45,4 mm / L optional
Throw Ratio 1,67-2,81:1 show
Audio 7W Mono
Connections HDMI 1.3 in
5 x BNC RGBHC in
D-sub 15 pin in und out
YUV in
S-Video in
Cinch Video in
Mini Jack Audio in und out
USB Typ B
RJ45 in
Ceiling Mounting Yes, is possible.
Power 460 / 385W in Eco Mode
Size WxHxD 489,5 x 164 x 434,8 mm (19,3"x6,5"x17,1") 34,81 L/dm³
Operating Noise 38 / 31 dB in Eco Mode
Key: 280 cm
Shift: 88 cm
Key: 122 cm
Shift: 20 cm
Key: 122 cm
Shift: 20 cm
Key: 280 cm
Shift: 88 cm

Weight 8,90 kg / 19,62 lbs.
Keystone Vert.: +/-40°
Hori.: +/-20°
Illumination 90%
Frequenz H-sync: 15-100 kHz
V-sync: 48-100 Hz
Range max.: 140 MHz
Foot-Lamberts 204 fL / max. 753 cm screen width
Candela m² 699 cd/m²
Features Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion
Freeze
Blackboard Modus
User logo
Eco Mode
Kensington Slot
Gamma correction
Dynamic iris
Picture-in-Picture
Password protection
Control via web browser
Lan network compatible.
Digital Zoom and Picture-in-picture
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Christie LW555 compared to others not current "Stationary" projectors.
Ansi-Lumen:
54 Weight:
99
Contrast:
1 dB:
94
Black level:
79 Power cons.:
95
Picture Total Points:45 Projector Total Points:96
Popularity Top 100
14 popularity points 14 popularity points 13 popularity points 4 popularity points 14 popularity points 8 popularity points
Points:
8
Ranking: 90 (From: 2536)
Optional accessories

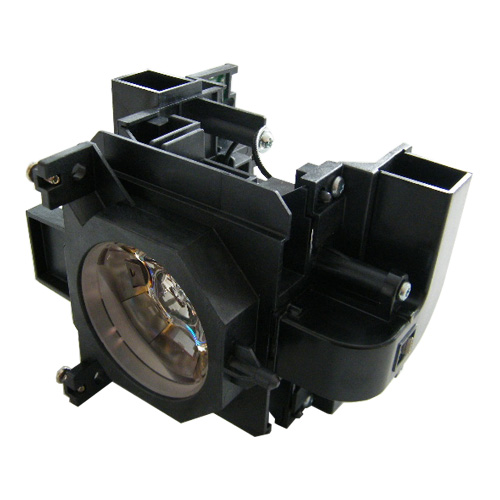

lamp ruby Ruby-LMP19476167,78 €
lamp Original003-120507-01EOL €
Compatible lamp LMP-K1947661,94 €
air filter compatible Alternative zu:003-003084-01 / POA-FIL-080 / 610-346-9034 / ET-SFYL08037,19 €
remote control Original645 103 0191 / MXAPEOL €
air filter Original003-003084-01 / POA-FIL-080 / 610-346-9034 / ET-SFYL080EOL €
Ceiling Mount 100-120 Halterung10047,86 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
Lens 4.60-7.36:1 Ultra Long 4.6-7.36:1 920-1472 m +/-70% +/-10% Powered
Lens 2.89-4.60 Long 2.89-4.6:1 578-920 m +/-70% +/-10% Powered
Lens 1.70-2.89:1 Standard 1.7-2.89:1 340-578 m +/-70% +/-10% Powered
Lens 1.25-1.70:1 Short 1.25-1.7:1 250-340 m +/-70% +/-10% Powered
0.8:1 Fixed 0.8:1 160 m 0.0% Fix No Zoom
0.98:1 Fixed 0.98:1 196 m 0.0% Fix No Zoom
Status 2010 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Christie Website
Product Sheet english
Product Sheet english HC
User Manual english (5.3 MB)
User Manual english Netzwerk (5.54 MB)
