The Matrix S+5K is a DLP projector by Christie, whose specifications list 5000 ANSI lumens, a contrast of 2000:1 and a SXGA+ 1400 x 1050 resolution. In operating mode, the installed projector lamp offers a lifespan of 1500 hours. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Lens Calculator. A look at the light output reveals: The 5000 ANSI lumens are sufficient to illuminate an image width of up to 616 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 411 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Since entering the market in 2008, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x 0,95" DLP Chip SXGA 4/3 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
1000W Xenon Lamp
Light Life
1500 h.
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
1667 Lux
Contrast:
1500-2000:1
Candela pro m²:
531 cd/m²
Foot-Lamberts:
155 fL
75 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein

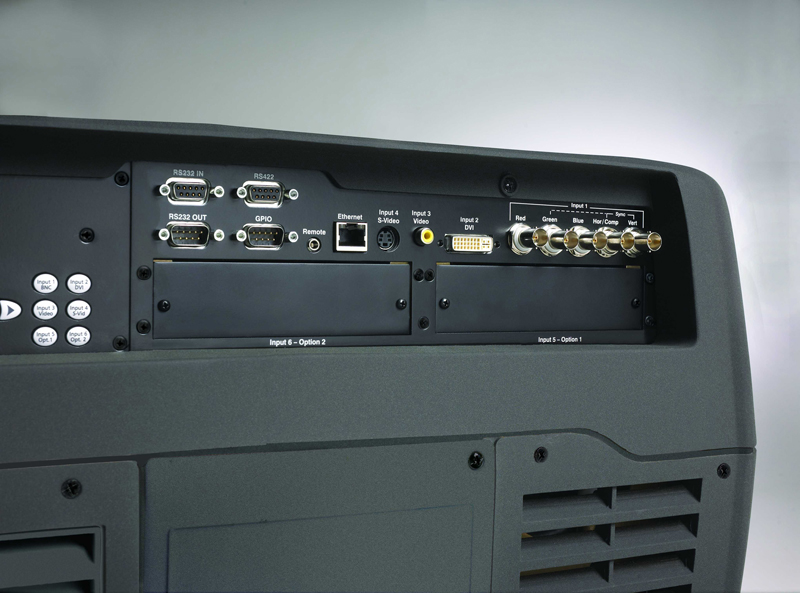

Connections
5 x BNC RGBHV in
DVI-I in
RS232C
RS422C
RJ45 in
weitere Anschlüsse Optional
Ceiling Mounting
Yes, is possible.
Power
1600W
Size WxHxD
660 x 313 x 566 mm (26"x12,3"x22,3") 116,92 L/dm³
Operating Noise
-
Shift: 75 cm
Shift: 50 cm
Shift: 50 cm
Shift: 75 cm
Weight
34,00 kg / 74,96 lbs.
Keystone
-
Illumination
90%
Frequenz
H-sync: 15-120 kHz V-sync: 23,97-150 Hz Range max.: 165 MHz
Lens shift Funktion motorisch
Christie Website
Product Sheet english HC
