Christie DWU1100-GS


Christie DWU1100A-GS (TAA) | | B

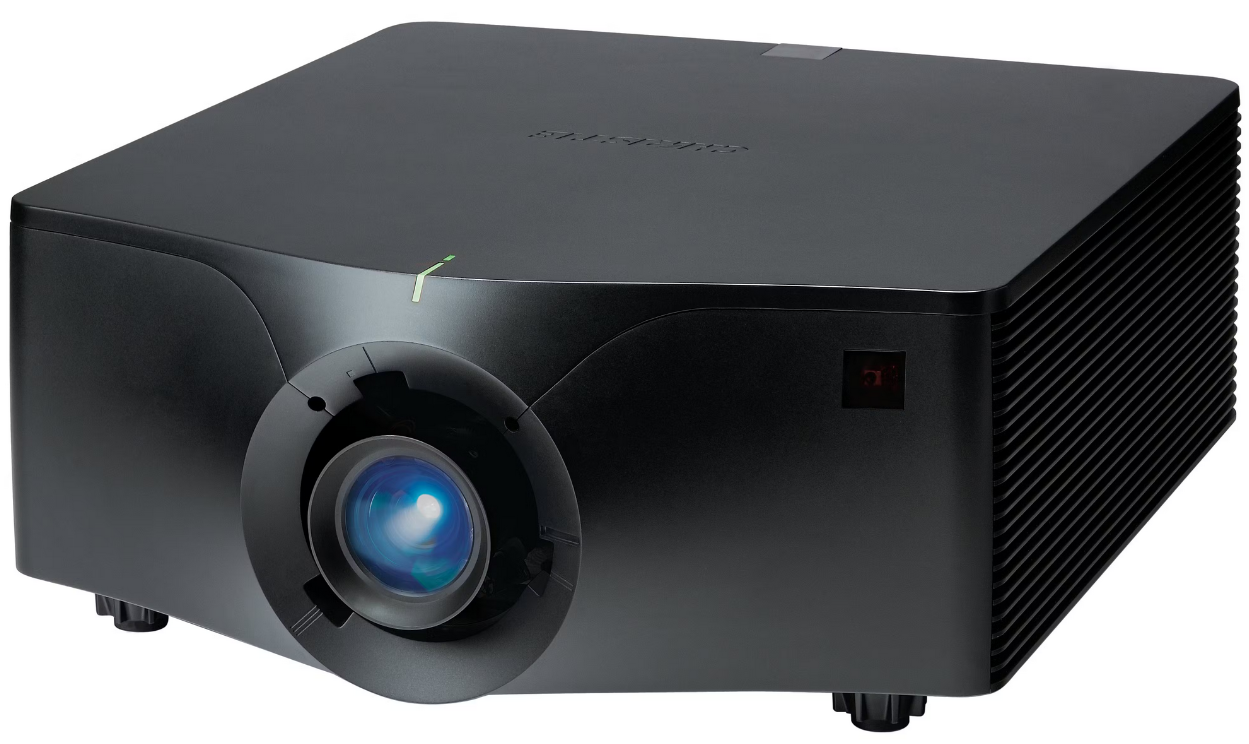

Image Christie DWU1100-GS
Customer review
Offer Ads
Discover the popular projector on Amazon.
Model Overview As a projector for the Stationary sector, the Christie DWU1100-GS is equipped with 9500 ANSI lumens, a WUXGA 1920 x 1200 resolution and a contrast of 3000000:1. The laser technology ensures a specified light source lifespan of up to 20000 hours, which translates to 13.7 years with 4 hours of daily use.
An integrated lens shift provides significant leeway for placement. The lens can be adjusted to precisely align the image even with off-center installations. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Distance Calculator.
A look at the light output reveals: The 9500 ANSI lumens are sufficient to illuminate an image width of up to 990 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 660 cm.
Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Display Type       1 x 0,67" DLP Chip
      WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
9500
Screen
4222 Lux (200 cm Screen width)
Contrast 3000000:1 full on/off 3000000:1 full on/off
Black Level 0,0032 min. Lumen 0,001 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-15%
 Lens shift
50%  56cm
50%  56cm
15%  30cm
15%  30cm
+ Projector
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser
Order Accessories
41,95 €
Light Life 20000 h.
Operating Costs 0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 4222 Lux
Contrast: 3000000:1
Candela pro m²: 1343 cd/m²
Foot-Lamberts: 392 fL
56 cm

Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio Nein

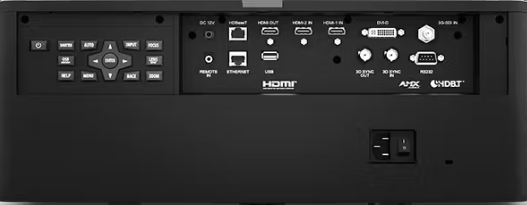

Connections 2 x HDMI 1.4 in
DVI-D in
D-sub 15pin in
Mini Jack Audio in und out
USB Typ A.B in
RS232C Din 9 pin in
HDBase​T in
RJ45 in
3GSDI in und out
RS232C
Ceiling Mounting Yes, is possible.
Power 850W
Size WxHxD 555 x 190 x 480 mm (21,9"x7,5"x18,9") 50,62 L/dm³
Operating Noise 37 / 35 dB in Eco Mode

Shift: 56 cm

Shift: 30 cm

Shift: 30 cm

Shift: 56 cm

Weight 22,20 kg / 48,5 lbs.
Keystone -
Illumination -
Frequenz H-sync: 15-91 kHz
V-sync: 24-120 Hz
Range max.: 162 MHz
Foot-Lamberts 392 fL / max. 990 cm screen width
Candela m² 1343 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Lan network compatible.
Picture-in-Picture Picture-by-Picture
4 segment (RGBY) – 3X speed colour wheel
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Christie DWU1100-GS compared to others current "Stationary" projectors.
Ansi-Lumen:
95 Weight:
82
Contrast:
60 dB:
52
Black level:
100 Power cons.:
61
Picture Total Points:85 Projector Total Points:65
Popularity Top 100
21 popularity points 16 popularity points 11 popularity points 16 popularity points 29 popularity points 23 popularity points
Points:
23
Ranking: 78 (From: 254)
Optional accessories
remote control OriginalIR108141,95 €
ceiling bracket white Halterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
140-107109-XX 2.9-5.5:1 580-1100 m +/-50% +/-15% Powered
140-102104-XX 1.52-2.92:1 304-584 m +/-50% +/-15% Powered
140-131106-XX 1.22-1.52:1 244-304 m +/-50% +/-15% Powered
140-101103-XX 0.95-1.22:1 190-244 m +/-50% +/-15% Powered
140-119102-XX 0.75-0.95:1 150-190 m +/-50% +/-15% Powered
140-143109-XX 0.65-0.75:1 130-150 m +/-50% +/-15% Powered
140-133108-XX 0.36:1 72 m +/-50% +/-10% No Zoom
Status 2022 Current model // Last update of the data: 2026-06-09
Created:
Data
Christie Website
Product Sheet english
Product Sheet english HC
User Manual english (4.44 MB)

Projektor Christie DWU1100-GS Projektor Christie DWU1100-GS
