Christie HD2Kc

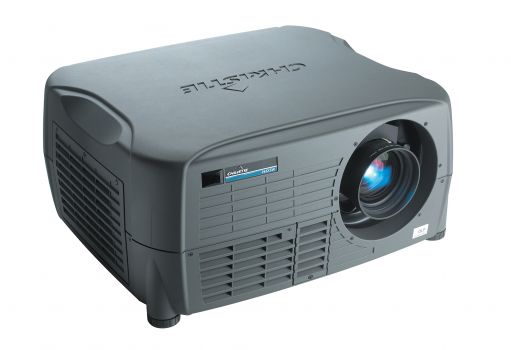

Image Christie HD2Kc
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Behind the name HD2Kc is a DLP projector by Christie, whose main features include 2300 ANSI lumens, a contrast of 2000:1 and a HDTV 1920 x 1080 resolution. According to Christie, the included lamp lasts up to 2000 hours.
The presence of a lens shift function enables flexible vertical or horizontal positioning of the projector without digital interference. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projection Calculator.
A look at the light output reveals: The 2300 ANSI lumens are sufficient to illuminate an image width of up to 487 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 325 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams.
For media input, video signals up to 1080P are supported. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
This model dates back to 2007 and is no longer part of Christie's current product range. Note: According to our information, replacement lamps (original or generic) are no longer available for this projector.
Display Type       3 x 0,95" DLP Chip
      HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2300
Screen
1022 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 1,1500 min. Lumen 0,512 min. Lumen
Lens shift Vert.: +/-59,5% Hori.: +/-21%
 Lens shift
59.5%  67cm
59.5%  67cm
21%  42cm
21%  42cm
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
QXGA 2048 x 1536 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 500W - 350W mit LiteLOC™ Lamp
Article Nr.: 003-120118-01 / 03-000832-01P
Order Lamp
Light Life 2000 h. 4000 h. mit LiteLOC™
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
Lux: 1022 Lux
Contrast: 2000:1
Candela pro m²: 325 cd/m²
Foot-Lamberts: 95 fL
67 cm


Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio -
Connections DVI-I mit HDCP in
5 x BNC RGBHV in
S-Video in
Cinch Video in
RS232C
RS422
RJ45
Weitere Anschlüsse optional.
Ceiling Mounting Yes, is possible.
Power 879W
Size WxHxD 660 x 313 x 566 mm (26"x12,3"x22,3") 116,92 L/dm³
Operating Noise -

Shift: 67 cm

Shift: 42 cm

Shift: 42 cm

Shift: 67 cm

Weight 32,10 kg / 70,77 lbs.
Keystone -
Illumination 90%
Frequenz H-sync: 15-120 kHz
V-sync: 23,97-150 Hz
Range max.: 210 MHz
Foot-Lamberts 95 fL / max. 487 cm screen width
Candela m² 325 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Freeze
Gamma correction
Warping
Edge Blending
Picture-in-Picture
Password protection
Remote control with laser pointer
Control via web browser
Lan network compatible.
Optional image warping
Screen Mirroring -
In Comparison
The Christie HD2Kc compared to others not current "Stationary" projectors.
Ansi-Lumen:
21 Weight:
86
Contrast:
1 dB: 0
Black level:
97 Power cons.:
88
Picture Total Points:40 Projector Total Points:0
Popularity Top 100
9 popularity points 10 popularity points 10 popularity points 1 popularity points 5 popularity points 4 popularity points
Points:
4
Ranking: 1070 (From: 2536)
Optional accessories
lamp Original003-120118-01 / 03-000832-01PEOL €
ceiling bracketHeavyDuty470,94 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
4.1-6.9:1 4.22-7.02:1 844-1404 m +/-59.5% +/-21% Powered
2.6-4.1:1 2.6-4.23:1 520-846 m +/-59.5% +/-21% Powered
1.8-2.6:1 1.85-2.55:1 370-510 m +/-59.5% +/-21% Powered
1.4-1.8:1 1.41-1.9:1 282-380 m +/-59.5% +/-21% Powered
0.73:1 0.73:1 146 m +/-23.5% +/-9.5% No Zoom
1.2:1 1.15:1 230 m +/-59.5% +/-21% No Zoom
Status 2007 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Christie Website
Product Sheet english
Product Sheet english HC
User Manual english (9.74 MB)
