The AL-DU935A model from Appotronics combines DLP technology in the Stationary sector with 9000 ANSI lumens, a contrast of 100000:1 and a native WUXGA 1920 x 1200 resolution. The laser technology ensures a specified light source lifespan of up to 25000 hours – equivalent to a usable life of 17.1 years at 4 hours a day. Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment without distortion. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projector Calculator. A look at the light output reveals: The 9000 ANSI lumens are sufficient to illuminate an image width of up to 964 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 643 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. An additional 360° projection capability allows the device to be oriented at almost any angle. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Thanks to support for Miracast and Airplay, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen.
Display Type
1 x 0,65" DMD DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser ALPD
Light Life
25000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
4000 Lux
Contrast:
100000:1
Candela pro m²:
1275 cd/m²
Foot-Lamberts:
372 fL
45 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-

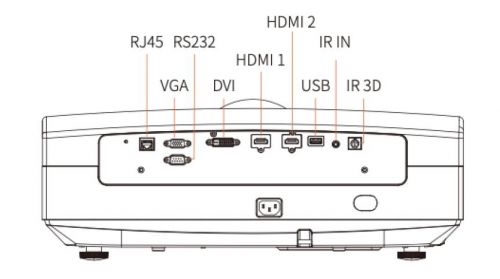

Connections
2x HDMI in
D-sub 15pin in und out
VGA in
IR 3D out
M3 in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
600W
Size WxHxD
490,2 x 160 x 353,1 mm (19,3"x6,3"x13,9") 27,68 L/dm³
Real Full HD 3D
