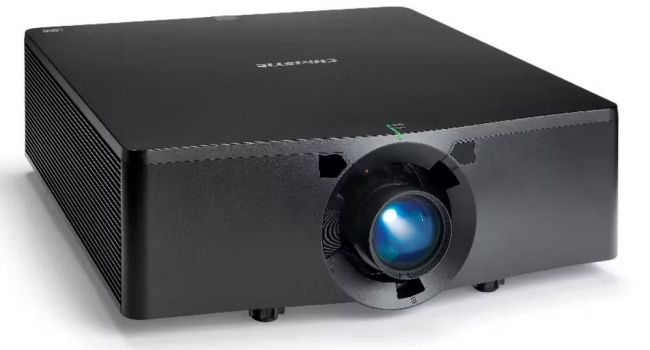

The DWU23-HS model is a 3D-LED-DLP projector from Christie, intended for Event applications, offering 21000 ANSI lumens, a contrast of 4000000:1 at WUXGA 1920 x 1200. The laser technology ensures a specified light source lifespan of up to 20000 hours, which translates to 13.7 years with 4 hours of daily use. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Distance Calculator. A look at the light output reveals: The 21000 ANSI lumens are sufficient to illuminate an image width of up to 1472 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 981 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable.
Display Type
1 x 0,96" DMD DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
9333 Lux
Contrast:
4000000:1
Candela pro m²:
2971 cd/m²
Foot-Lamberts:
867 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
HDMI 2.0b x 2 (HDCP 1.4/2.2) (one on rear panel, one on bottom) •
3G-SDI (BNC)
Displayport
USB (Type A)
HDBaseT (RJ45)
RS232
Built in Keyboard
Remote in: 3.5mm stereo female (provides serial
communications and power)
Loop out available for daisy chaining
DC JACK 12VDC, 200 mA
WiFi dongle (optional)
Real Full HD 3D Full HD 1080P compatible Eco Mode Warping Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. Optional: - Christie Twist™ Premium and Twist Pro - Christie Mystique™ automated camera-based alignment AMX
Real Full HD 3D
