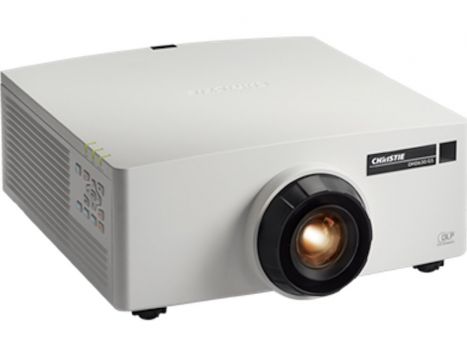

The basic data of the Christie DHD635-GS includes 5400 ANSI lumens, a resolution of HDTV 1920 x 1080 as well as a contrast of 4000000:1. Using this laser phosphor technology, the light source runtime is rated at 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. The presence of a lens shift function enables flexible vertical or horizontal positioning of the projector without digital interference. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projector Calculator. Regarding projection size, the value of 5400 ANSI lumens allows for an image width of up to 747 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 498 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2018 and is no longer part of Christie's current product range.
Display Type
1 x 0,65" DMD DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom |
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2400 Lux
Contrast:
4000000:1
Candela pro m²:
764 cd/m²
Foot-Lamberts:
223 fL
68 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
2 x HDMI
DVI-D in
D-sub 15pin in und out
RS232C Din 9 pin in
Display Port
USB
S-Video
3D Sync Out
HDBaseT in
RJ45 in
Wired remote control (3.5mm stereo)
Ceiling Mounting
Yes, is possible.
Power
650W
Size WxHxD
505 x 190 x 456 mm (19,9"x7,5"x18") 43,75 L/dm³
Operating Noise
36 / 34 dB in Eco Mode
Shift: 68 cm
Shift: 30 cm
Shift: 30 cm
Shift: 68 cm
Weight
15,85 kg / 34,94 lbs.
Keystone
-
Illumination
-
Frequenz
H-sync: 15-91 kHz V-sync: 24-120 Hz Range max.: 162 MHz
Real Full HD 3D
