Brief Introduction
Beta 2.5 |
The Epson USA PowerLite 830P LCD projector has 3000 Ansi lumens, a contrast of 600:1 and an XGA 1024 x 768 resolution. 3000 Ansi lumens ensure that a picture width of 477 cm is also possible. However, if room light is available, the picture should be max. 318 cm wide. The model was built by Epson USA in 2004 and is no longer current.
|
| Display Type |
3 x 0,8" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3000 / 2200 im Eco Mode |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
600:1 full on/off |
600:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
1,675 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
SECAM, NTSC, |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

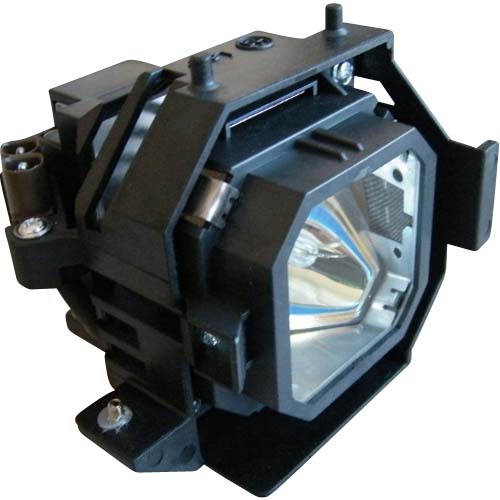

200W UHE Lamp
Article Nr.: ELPLP31
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
296 - 470 cm
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Automatic |
| Zoom |
Powered 1,59 |
| Objective |
F=1,75-2,42 f=24-38,2 mm |
| Throw Ratio |
1,48-2,35:1 show |
| Audio |
Built-in loudspeaker |
| Connections |
2 x D-sub 15pin in
S-Video in
Cinch Video in
Cinch Stereo in
RJ45
USB Typ B
RS232C Din9 pin
3 x Mini Jack in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
300W |
| Size WxHxD |
365 x 114 x 280 mm (14,4"x4,5"x11") 11,65 L/dm³
|
| Operating Noise |
34 / 28 dB in Eco Mode |
|
| Weight |
4,70 kg / 10,36 lbs. |
| Keystone |
Vert.: +/-45° automatisch
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-107 kHz
V-sync: 50-120 Hz
Range max.: 230 MHz |
| Foot-Lamberts |
93 fL
/ max. 477 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Freeze
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
sRGB
Picture-in-Picture
Password protection
Lan network compatible.
automatic image adjustment for keystone, focus
Digital Zoom
|
|
- |
In Comparison
The Epson USA PowerLite 830P compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
77 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
81 |
Power cons.: |
|
97 |
| Picture Total Points: | 39 |
Projector Total Points: | 71 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2330 (From: 7662) |
|
|
|
|
|
| Status |
2004 Discontinued (EOL) // Last update of the data: 2025-02-26
|
