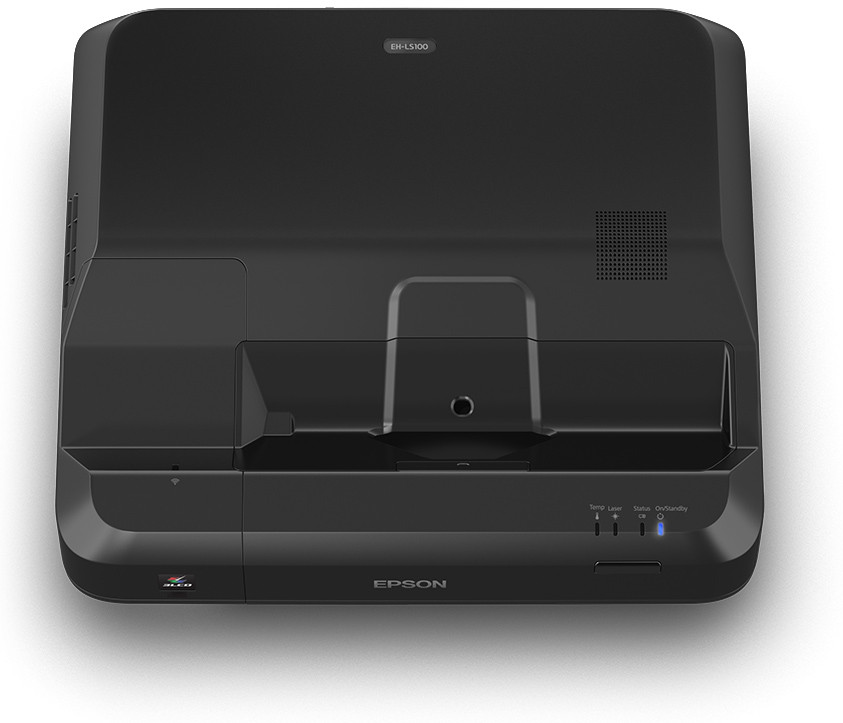

According to Epson USA, the Home Cinema LS100 model provides 4000 ANSI lumens, a contrast ratio of 2500000:1 alongside a WUXGA 1920 x 1200 resolution. With its laser unit, the projector offers a specified light lifespan of 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. With its built-in wide-angle optics, the device belongs to the category of short-throw projectors. An image width of 2 meters is realized from a short distance of 54 cm. A look at the light output reveals: The 4000 ANSI lumens are sufficient to illuminate an image width of up to 643 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 429 cm. As an additional feature, an integrated media player enables the direct playback of files without an external source device. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2017 and is no longer part of Epson USA's current product range. As an archive device, the projector remains highly relevant in our database.
Display Type
3 x LCD TFT Panel WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
4000
Screen
1778 Lux (200 cm Screen width)
Contrast
2500000:1 full on/off
2500000:1 full on/off
Black Level
0,0016 min. Lumen
0,001 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p Media player formats: Image (.JPEG)
Image (.bmp)
Image (.gif )
Image (.png)
Motion JPEG
movie (.avi)
Disc Recognition
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray
Application
Short Distance | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
54 cm (no Zoom)
Lux:
1778 Lux
Contrast:
2500000:1
Candela pro m²:
565 cd/m²
Foot-Lamberts:
165 fL
•
Focus
Manual
Zoom
No Zoom
Objective
F=1,6 f=4,2mm
Throw Ratio
0,27:1
Audio
16W
Connections
3 x HDMI mit MHL in
DVI in
D-sub 15pin in und out
Cinch Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
448 / 348W in Eco Mode
Size WxHxD
492,8 x 172,7 x 436,9 mm (19,4"x6,8"x17,2") 36,9 L/dm³
Integrated Mediaplayer
