Brief Introduction
Beta 2.5 |

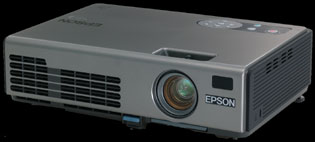

A brief introduction to the Epson USA PowerLite 740C. The standard portable LCD projector has an XGA 1024 x 768 resolution and a contrast of 400:1. An image width of up to 435 cm is possible as the projector has 2500 Ansi lumens. However, if room light is available, the image should be max. 290 cm wide. This model is no longer offered by Epson USA.
|
| Display Type |
3 x 0,7" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
2500 / 2000 im Eco Mode |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
400:1 full on/off |
400:1 full on/off
|
| Black Level |
6,2500 min. Lumen |
2,098 min. Lumen |
| Offset |
36% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, EDTV HDTV 720p, |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

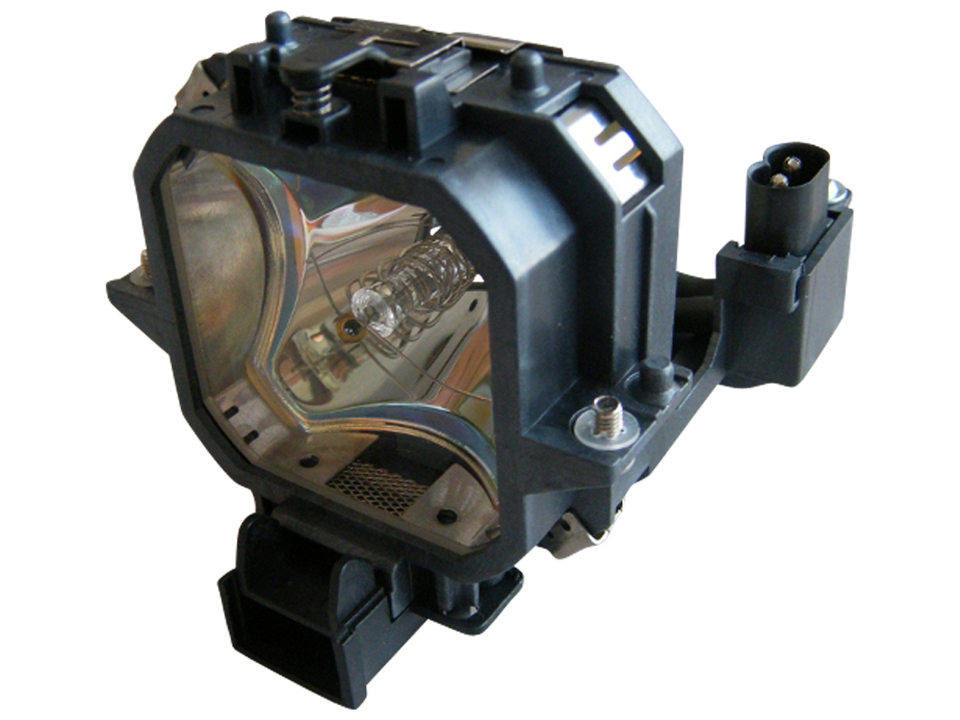

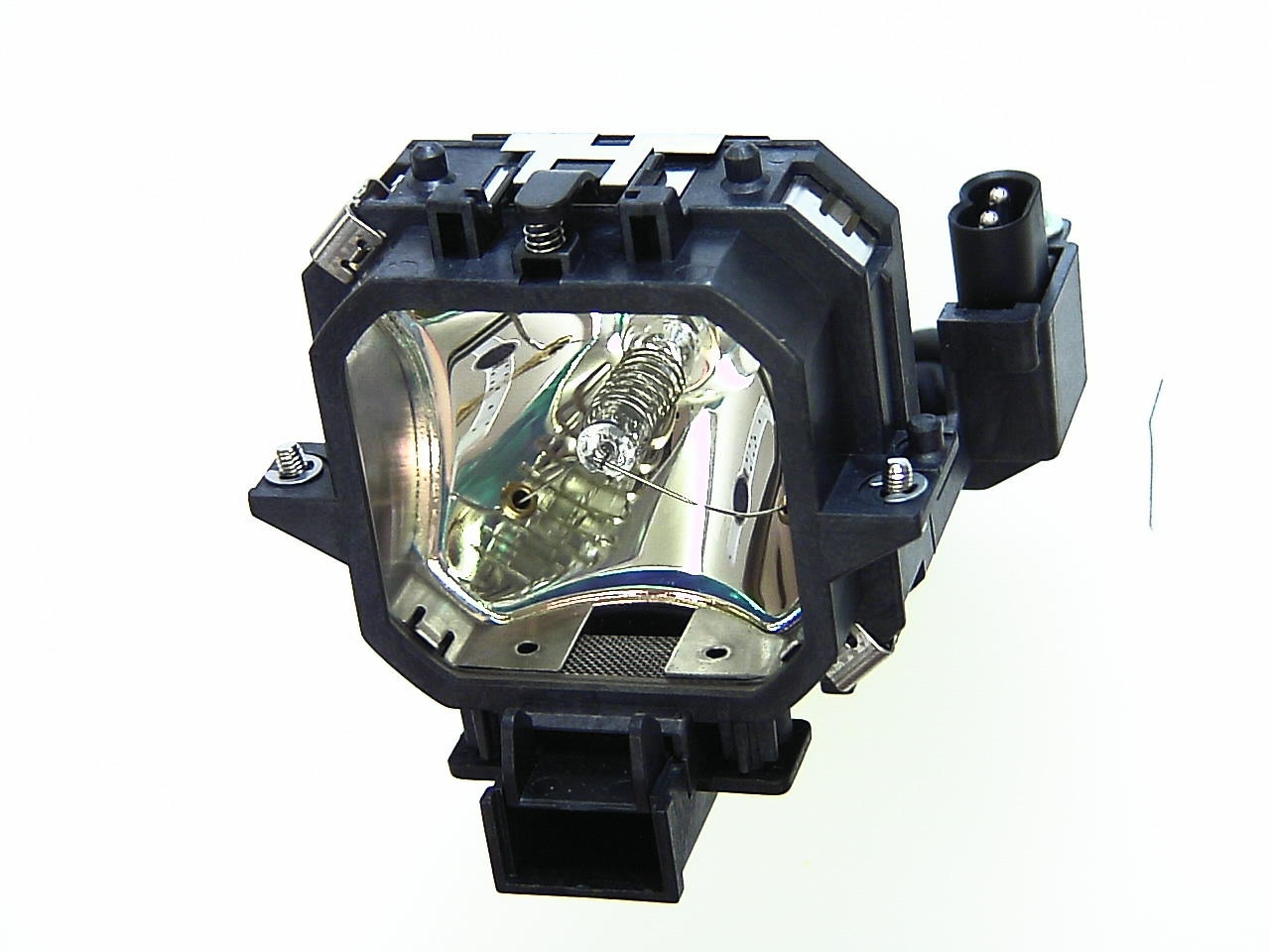

170W UHE Lamp
Article Nr.: ELPLP32
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
334 - 400 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
| 54 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,6-1,8 f=23,7-28,5 mm |
| Throw Ratio |
1,67-2:1 show |
| Audio |
1W Mono |
| Connections |
D-sub 15pin in
Cinch Video in
Mini Jack in
USB Typ B
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
240W |
| Size WxHxD |
276 x 70 x 193 mm (10,9"x2,8"x7,6") 3,73 L/dm³
|
| Operating Noise |
- |
|
| Weight |
1,70 kg / 3,75 lbs. |
| Keystone |
Vert.: +/-15° automatisch
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 50-85 Hz
Range max.: 162 MHz |
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Freeze
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Password protection
Panelgröße 0,8 im Prospekt deutsch stimmt nicht.
Ratio im Prospekt USA stimmt nicht.
|
|
- |
In Comparison
The Epson USA PowerLite 740C compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
92 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
77 |
Power cons.: |
|
98 |
| Picture Total Points: | 36 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
2809 (From: 7662) |
|
|
|
| Please note |
Screen size 0.8 in the German brochure is incorrect.
Ratio in the US brochure is incorrect.
|
|
|
| Status |
2004 Discontinued (EOL) // Last update of the data: 2023-08-04
|
