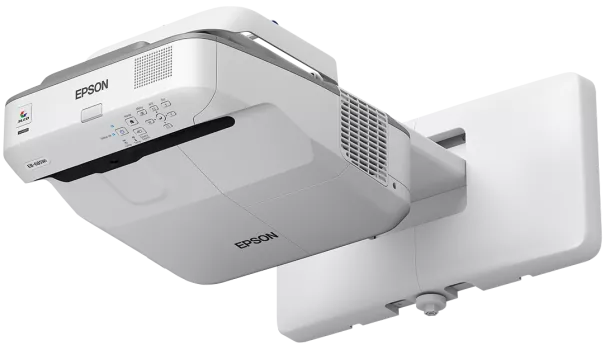

This projector is named BrightLink 685Wi, originates from Epson USA, and its data sheet shows 3500 ANSI lumens, a contrast of 14000:1 and a resolution of WXGA 1280 x 800. In operating mode, the installed projector lamp offers a lifespan of 5000 hours, achieving a lifespan of 6.8 years when used for 2 hours a day. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. Looking at practical performance, up to 601 cm can be illuminated with 3500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 401 cm. Also on board is a local media player that allows reading and playing content directly from storage media. Thanks to MHL support, screen content from mobile devices can be transmitted via cable, including charging power for the device. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Specifically for the educational or business sector, an interactive whiteboard function is also integrated. Equipped with a microphone jack and built-in speakers (16W), audio signals during presentations can be played back directly without an external audio system.
Display Type
3 x 0,59" D9 LCD TFT Panel mit MLA WXGA 16/10 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3500 / 2900 im Eco Mode
Screen
1400 Lux (200 cm Screen width)
Contrast
14000:1 full on/off
14000:1 full on/off
Black Level
0,2500 min. Lumen
0,1 min. Lumen
Offset
35,71% 18 cm under screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p Media player formats: .JPEG
.bmp
.gif
.png
.avi
(Motion-
JPEG)
Application
Whiteboard | Training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Integrated Mediaplayer
Epson USA Website
Product Sheet english HC
