Brief Introduction
Beta 2.5 |

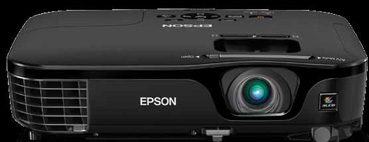

A brief introduction to the EX5210: The Epson USA LCD projector offers 2800 Ansi lumens, a contrast of 3000:1 and an XGA 1024 x 768 resolution. The lamp life is up to 4000 hours, which is over 5.5 years if enjoyed for two hours a day. The projector also offers an integrated media player that can be used to play files directly. Thanks to the horizontal and vertical keystone correction, the projector can be positioned very freely. An image width of up to 461 cm is possible as the projector has 2800 Ansi lumens. However, if there is room light, the picture should be max. 307 cm wide. The model is also Full HD 1080P compatible. This model is no longer offered by Epson USA.
|
| Display Type |
3 x 0,55" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2800 |
Screen |
933 Lux (200 cm Screen width) |
| Contrast |
3000:1 full on/off |
3000:1 full on/off
|
| Black Level |
0,9333 min. Lumen |
0,311 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA+ 1400 x 1050 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: JPEG BMP GIF PNG |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
200W UHE Lamp
Article Nr.: ELPLP67 / V13H010L67
|
|
| Light Life |
4000 h. 5000 h. in eco Mode |
| Operating Costs |
-
|
|
296 - 354 cm
|
 |
|
Lux: |
933 Lux |
|
Room light max.: |
187 Lux |
|
Candela pro m²: |
298 cd/m² |
|
Foot-Lamberts: |
87 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,18 |
| Objective |
F=1,58-1,72 f=16,9-20,28 mm |
| Throw Ratio |
1,48-1,77:1 show |
| Audio |
1 x 2W Mono |
| Connections |
HDMI in
D-sub 15 pin in
S-Video in
Cinch Video in
Cinch Stereo in
USB Typ A, B in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
283 / 234W in Eco Mode |
| Size WxHxD |
295 x 77 x 228 mm (11,6"x3"x9") 5,18 L/dm³
|
| Operating Noise |
- |
Key: 171 cm |
Key: 171 cm | | Key: 171 cm |
| |
|
|
| Weight |
2,30 kg / 5,07 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-69 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
87 fL
/ max. 461 cm screen width |
| Candela m² |
298 cd/m² |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Password protection
Remote control with mouse control
Overscan adjustable
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson USA EX5210 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
33 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
97 |
Power cons.: |
|
97 |
| Picture Total Points: | 44 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
726 (From: 7662) |
|
|
|
|
|
| Status |
2011 Discontinued (EOL) // Last update of the data: 2023-08-04
|
