Brief Introduction
Beta 2.5 |

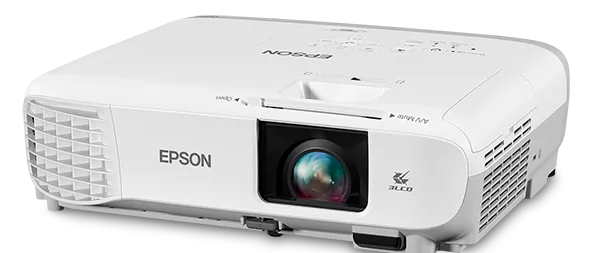

The Epson USA model Powerlite 109W is an LCD projector with XGA 1024 x 768 resolution and a contrast of 15000:1. The lamp life is up to 12000 hours, which is equivalent to over 16.4 years at 2 hours of use. The projector is equipped with an integrated media player, so direct playback of files will not be a problem. The horizontal and vertical keystone correction provides leeway when setting up. As the Powerlite 109W is equipped with a microphone jack plug and 16W speakers, no additional audio system is required for presentations or training courses. 3500 Ansi lumens ensure that a screen width of 515 cm is also possible. The projector manages rooms with residual light with a smaller image width, we recommend a maximum of 343 cm. It is also Full HD 1080P compatible. This model is no longer offered by Epson USA.
|
| Display Type |
3 x 0,55" LCD TFT
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3500 |
Screen |
1167 Lux (200 cm Screen width) |
| Contrast |
15000:1 |
15000:1
|
| Black Level |
0,2333 min. Lumen |
0,078 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Media player formats: Image (.jpg)
Image (.bmp)
Image (.gif )
Image (.png)
Motion JPEG
movie (.avi) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
210W UHE Lamp
Article Nr.: ELPLP96 / V13H010L96
|
|
| Light Life |
6000 h. / 12000 h. in Eco Mode |
| Operating Costs |
|
|
296 - 354 cm
|
 |
|
Lux: |
1167 Lux |
|
Room light max.: |
233 Lux |
|
Candela pro m²: |
370 cd/m² |
|
Foot-Lamberts: |
108 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,49-1,72 f=16,9-20,28 mm |
| Throw Ratio |
1,48-1,77:1 show |
| Audio |
16W |

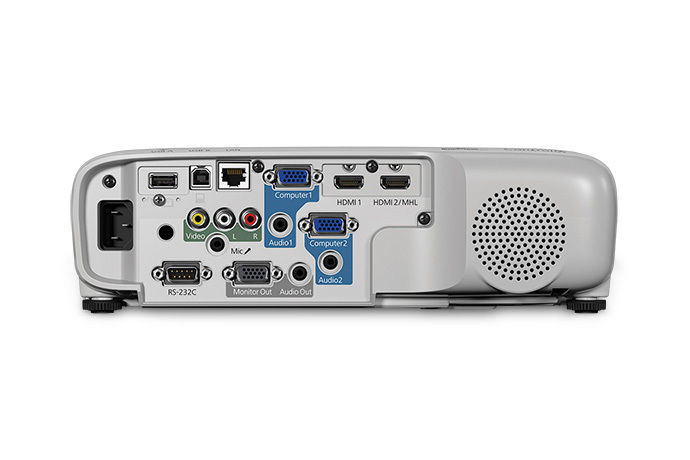

| Connections |
2 x HDMI in
2 x D-sub 15pin in und 1 x out
Cinch Video in
Cinch Stereo in
Microphone
Mini Jack Audio 2x in und out
USB in
RS232C Din 9 pin in
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
326 / 227W in Eco Mode |
| Size WxHxD |
294,6 x 88,9 x 246,4 mm (11,6"x3,5"x9,7") 6,36 L/dm³
|
| Operating Noise |
37 / 28 dB in Eco Mode |
Key: 171 cm |
Key: 171 cm | | Key: 171 cm |
| |
|
|
| Weight |
2,80 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-30° automatisch
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
V-sync: 50-85 Hz
|
| Foot-Lamberts |
108 fL
/ max. 515 cm screen width |
| Candela m² |
370 cd/m² |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Password protection
Optional Wi-Fi network compatible.
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson USA Powerlite 109W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
31 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 47 |
Projector Total Points: | 72 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
1902 (From: 7662) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2023-08-30
Created: 2019-08-07 18:50:37
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (11.39 MB)

|
Epson USA Website
