Brief Introduction
Beta 2.5 |
With the PowerLite 685W, manufacturer Epson USA offers a short-throw LCD projector with WXGA 1280 x 800 resolution and a contrast of 14000:1. The lamp life is specified by the manufacturer as 10000 hours, which converts to over 13.7 years at 2 hours per day. Includes an integrated media player that can be used to play files directly. Thanks to the horizontal and vertical keystone correction, the projector can be positioned very freely. Thanks to the short-throw projection ratio of just 0.28:1, the projector does not stand in the room. For a 2m wide image, the projector only needs to be 56 cm away from the screen. The model offers a microphone jack plug and 16W speakers, so no additional audio devices are required for presentations or training courses. A smartphone with MHL connection can be connected directly to the MHL/HDMI port for 1080p / 60 Hz image mirroring (screen mirroring).
|
| Display Type |
3 x 0,59" D9 LCD TFT Panel mit MLA
WXGA 16/10 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3500 / 2900 im Eco Mode |
Screen |
1400 Lux (200 cm Screen width) |
| Contrast |
14000:1 full on/off |
14000:1 full on/off
|
| Black Level |
0,2500 min. Lumen |
0,1 min. Lumen |
| Offset |
35,71% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Media player formats: .jpg
.bmp
.gif
.png
.avi
(Motion-
JPEG) |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

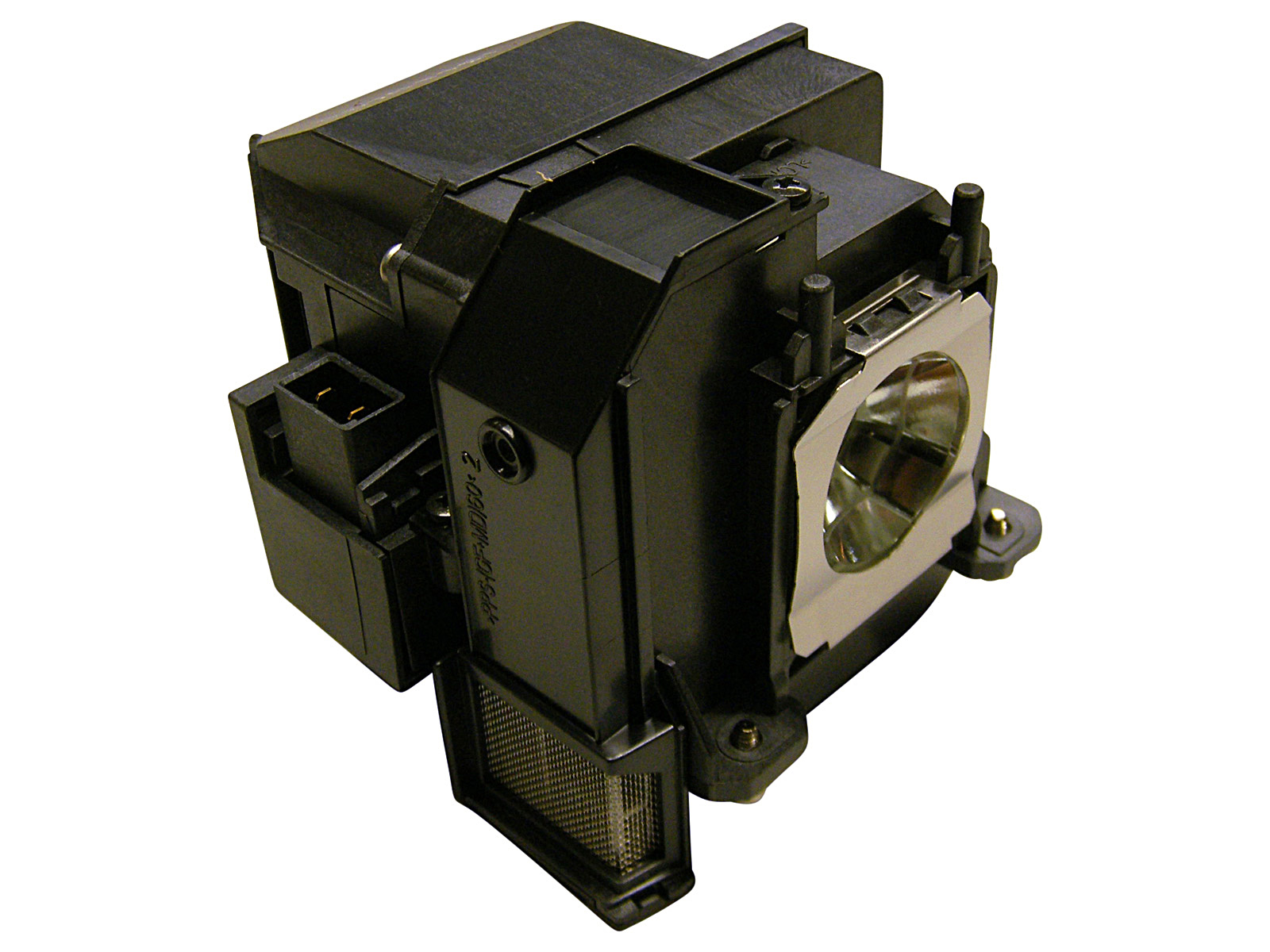

250W Lamp
Article Nr.: ELPLP91 / V13H010L91
|
|
| Light Life |
5000 h. 10000 h. in Eco Mode |
| Operating Costs |
-
|
|
56 cm (no Zoom)
|
 |
|
Lux: |
1400 Lux |
|
Room light max.: |
280 Lux |
|
Candela pro m²: |
445 cd/m² |
|
Foot-Lamberts: |
130 fL |
|
 |
| 45 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=1,6 f=3,76mm |
| Throw Ratio |
0,28:1 |
| Audio |
16W |
| Connections |
3 x HDMI mit MHL in
2 x D-sub 15pin in und out
USB Typ A,B
RS232C Din 9 pin in
Mini Jack Audio in und out
RJ45 in
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
354 / 310W ImEco Mode |
| Size WxHxD |
367 x 149 x 400 mm (14,4"x5,9"x15,7") 21,87 L/dm³
|
| Operating Noise |
35 / 28 dB in Eco Mode |
Key: 48 cm |
Key: 3 cm |
| Key: 3 cm |
| |
|
|
| Weight |
5,70 kg / 11,02 lbs. |
| Keystone |
Vert.: +/-3°
Hori.: +/-3°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
130 fL
/ max. 601 cm screen width |
| Candela m² |
445 cd/m² |
| Features |
 Integrated Mediaplayer
User logo
Eco Mode
Kensington Slot
sRGB
Password protection
Optional Wi-Fi network compatible.
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
Digital zoom
|
|
über HDMI MHL |
In Comparison
The Epson USA PowerLite 685W compared to others current "Short Distance" projectors. |
| Ansi-Lumen: |
|
41 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
40 |
| Black level: |
|
97 |
Power cons.: |
|
70 |
| Picture Total Points: | 46 |
Projector Total Points: | 70 |
|
| Popularity Top 100 |
|
| Points: |
|
14 |
| Ranking: |
73 (From: 313) |
|
|
|
|
|
| Status |
2016 Current model // Last update of the data: 2024-11-01
