Brief Introduction
Beta 2.5 |

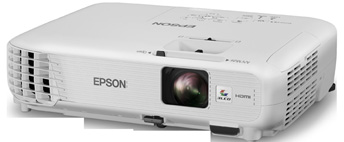

A brief introduction to the Epson USA Home Cinema 740HD. The LCD projector has a WXGA 1280 x 800 resolution and a contrast of 15000:1. Manufacturer Epson USA specifies the lamp life as 10000 hours, which converts to over 13.7 years at 2 hours per day. The integrated media player allows files to be played directly. Horizontal and vertical keystone correction makes setting up the picture childs play. 556 cm picture width, the projector will be able to illuminate well. However, if room light is available, the picture width should ideally not exceed 371 cm. The model is also Full HD 1080P compatible. The projector was launched in 2015 and is no longer sold by the manufacturer.
|
| Display Type |
3 x LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1200 Lux (200 cm Screen width) |
| Contrast |
15000:1 full on/off |
15000:1 full on/off
|
| Black Level |
0,2000 min. Lumen |
0,08 min. Lumen |
| Offset |
-
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: .jpg
.bmp
.gif
.png
.avi |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
200W UHE Lamp
|
|
| Light Life |
5000 h. 10000 h. in Eco Mode |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,58-1,72 f=16,9-20,28 mm |
| Throw Ratio |
- |
| Audio |
1W Mono |
| Connections |
HDMI in
D-sub 15pin in
Cinch Video in
Cinch Stereo in
USB Typ A,B in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
291 / 214W in Eco Mode |
| Size WxHxD |
-
|
| Operating Noise |
37 / 28 dB in Eco Mode |
|
| Weight |
- |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
111 fL
/ max. 556 cm screen width |
| Candela m² |
380 cd/m² |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
Eco Mode
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson USA Home Cinema 740HD compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
0 |
| Contrast: |
|
1 |
dB: |
|
31 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 45 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
1539 (From: 7662) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-08-30
