Brief Introduction
Beta 2.5 |

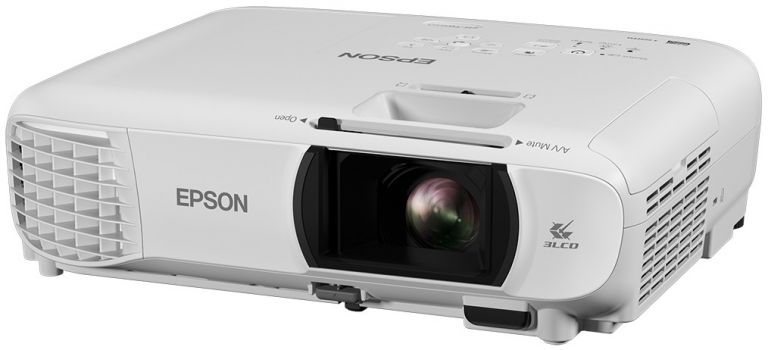

The Epson USA model Home Cinema 760 is an LCD projector with WXGA 1280 x 800 resolution and a contrast of 15000:1. The lamp life is up to 10,000 hours, which is equivalent to over 13.7 years at 2 hours of use. As the projector has horizontal and vertical keystone correction, the projector can be set up with plenty of free space in the room. An image width of up to 584 cm is possible. However, the image should be smaller in room light. We recommend max. 389 cm. It is also Full HD 1080P compatible. It was launched in 2017 and is no longer offered by the manufacturer Epson USA.
|
| Display Type |
3 x 0,61" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3300 |
Screen |
1320 Lux (200 cm Screen width) |
| Contrast |
15000:1 full on/off |
15000:1 full on/off
|
| Black Level |
0,2200 min. Lumen |
0,088 min. Lumen |
| Offset |
-
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
210W UHE Lamp
Article Nr.: ELPLP96 / V13H010L96
|
|
| Light Life |
6000 h. 10000 h. in Eco Mode |
| Operating Costs |
|
|
260 - 312 cm
|
 |
|
Lux: |
1320 Lux |
|
Room light max.: |
264 Lux |
|
Candela pro m²: |
421 cd/m² |
|
Foot-Lamberts: |
123 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,49-1,72 f=16,9-20,28 mm |
| Throw Ratio |
1,30-1,56:1 show |
| Audio |
2W |
| Connections |
HDMI
D-sub 15pin in
Cinch Video in
Cinch Audio in
USB Typ A,B in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
315W |
| Size WxHxD |
302 x 87 x 249 mm (11,9"x3,4"x9,8") 6,54 L/dm³
|
| Operating Noise |
37 / 28 dB in Eco Mode |
Key: 150 cm |
Key: 150 cm | | Key: 150 cm |
| |
|
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vert.: +/-30° automatisch
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
123 fL
/ max. 584 cm screen width |
| Candela m² |
421 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Eco Mode
Automatic and manual vertical keystone correction
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson USA Home Cinema 760 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
31 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
43 |
| Black level: |
|
98 |
Power cons.: |
|
93 |
| Picture Total Points: | 43 |
Projector Total Points: | 79 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
538 (From: 984) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2017-09-16 13:43:44
|
