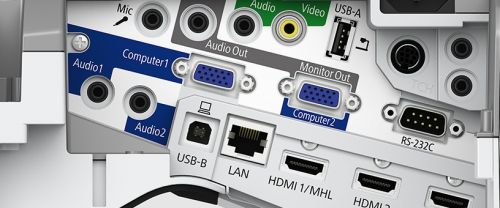

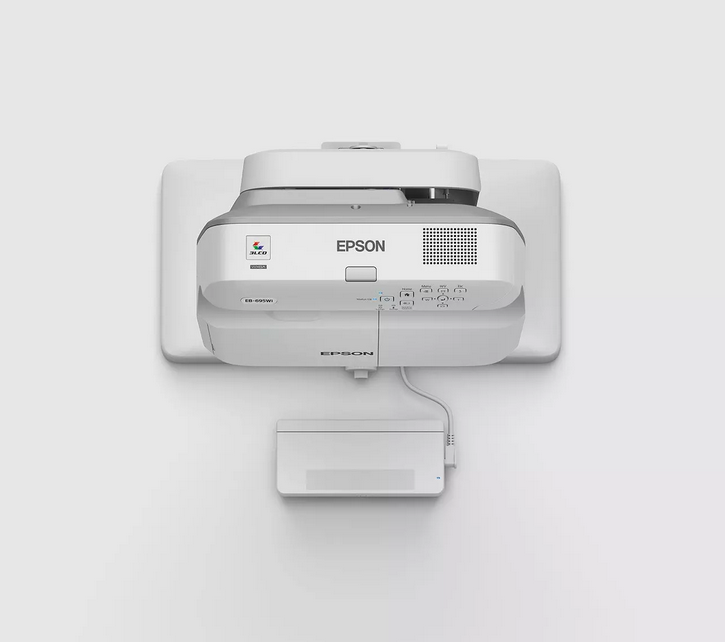

A projector from Epson USA is the BrightLink 695Wi, whose LCD model delivers 3500 ANSI lumens, a resolution of WXGA 1280 x 800 and a contrast of 14000:1. The runtime of the lamp in this model is estimated at 5000 hours before a replacement is necessary – mathematically sufficient for 6.8 years based on two hours of use per day. To ensure a rectangular image even with asymmetrical placement, the projector includes digital keystone correction for both the horizontal and vertical axes. Looking at practical performance, up to 601 cm can be illuminated with 3500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 401 cm. Also on board is a local media player that allows reading and playing content directly from storage media. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Specifically for the educational or business sector, an interactive whiteboard function is also integrated. Equipped with a microphone jack and built-in speakers (16W), audio signals during presentations can be played back directly without an external audio system.
Display Type
3 x 0,59" D9 LCD TFT Panel mit MLA WXGA 16/10 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3500 / 2900 im Eco Mode
Screen
1400 Lux (200 cm Screen width)
Contrast
14000:1 full on/off
14000:1 full on/off
Black Level
0,2500 min. Lumen
0,1 min. Lumen
Offset
35,71% 18 cm under screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p Media player formats: .JPEG
.bmp
.gif
.png
.avi
(Motion-
JPEG)
Application
Whiteboard | Training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Integrated Mediaplayer User logo Eco Mode Kensington Slot sRGB Password protection Optional Wi-Fi network compatible. Lan network compatible. Short-throw projector Crestron®-Software compatible. Digital Zoom Whiteboard function. Fingertouch function and two pens: make annotations directly on the projected image using gesture control.
Integrated Mediaplayer
