Brief Introduction
Beta 2.5 |
Brief introduction of the Epson USA BrightLink Pro 1470Ui. The whiteboard LCD laser projector has a WUXGA 1920 x 1200 resolution and a contrast of 2500000:1. The manufacturer specifies a laser life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. As the projector has horizontal and vertical keystone correction, the projector can be set up with plenty of free space in the room. The model offers a microphone jack plug and 16W speakers, so no additional audio devices are required for presentations or training courses. The projector can illuminate images up to 643 cm wide thanks to its 4000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 429 cm. The projector offers an interactive whiteboard function for interactive training courses and presentations. The model recognizes Miracast screen mirroring signals, so it is possible to play videos with high resolution and surround sound directly via WLAN from a smartphone, tablet or PC (Android, Windows and iOS). The projector can also play 1080P without any problems. It was launched in 2017 and is no longer offered by the manufacturer Epson USA.
|
| Display Type |
3 x 0,67" LCD TFT Panel mit MLA
WUXGA 16/9 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1778 Lux (200 cm Screen width) |
| Contrast |
2500000:1 full on/off |
2500000:1 full on/off
|
| Black Level |
0,0016 min. Lumen |
0,001 min. Lumen |
| Offset |
35,29% show
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Whiteboard | Training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser
|
|
| Light Life |
20000 h. 30000 h. in Eco Mode |
| Operating Costs |
0,00 € Laser
|
|
54 - 74 cm
|
 |
|
Lux: |
1778 Lux |
|
Room light max.: |
356 Lux |
|
Candela pro m²: |
565 cd/m² |
|
Foot-Lamberts: |
165 fL |
|
 |
| 40 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom 1,35 |
| Objective |
F=1,6 f=4,2mm |
| Throw Ratio |
0,27-0,37:1 show |
| Audio |
16W |

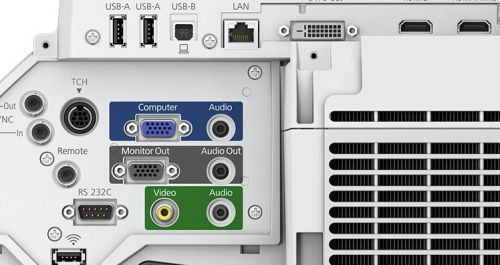

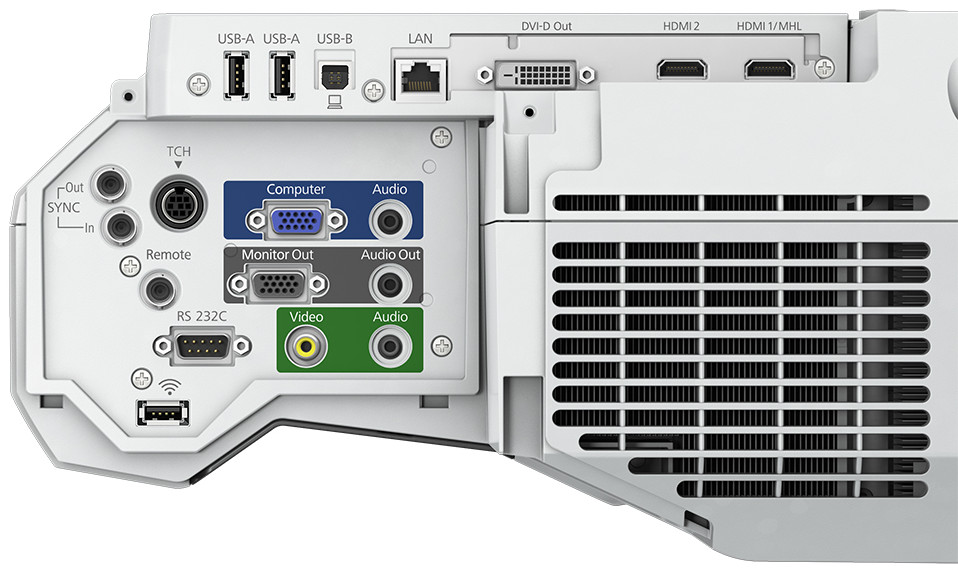

| Connections |
2 x HDMI mit MHL in
DVI
D-Sub 15 pin in und out
Mini Jack Audio in und out
Mikrofon in
RS232C
RJ45 in
USB Typ A,B
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
448 / 332W in Eco Mode |
| Size WxHxD |
494 x 172 x 437 mm (19,4"x6,8"x17,2") 37,13 L/dm³
|
| Operating Noise |
38 / 27 dB in Eco Mode |
Key: 43 cm |
Key: 3 cm |
| Key: 3 cm |
| |
|
|
| Weight |
11,40 kg / 24,25 lbs. |
| Keystone |
Vert.: +/-3°
Hori.: +/-3°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
165 fL
/ max. 643 cm screen width |
| Candela m² |
565 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Blackboard Modus
User logo
Eco Mode
Kensington Slot
sRGB
Password protection
Remote control with mouse control
Wi-Fi network compatible.
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
Whiteboard function with pen and gesture control.
|
|
Miracast |
In Comparison
The Epson USA BrightLink Pro 1470Ui compared to others not current "Whiteboard" projectors. |
| Ansi-Lumen: |
|
|
Weight: |
|
|
| Contrast: |
|
|
dB: |
|
|
| Black level: |
|
|
Power cons.: |
|
|
| Picture Total Points: | |
Projector Total Points: | |
|
| Popularity Top 100 |
|
| Points: |
|
29 |
| Ranking: |
137 (From: 297) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2024-10-02
Created: 2024-07-18 09:52:59
|
| Data |
 Product Sheet english HC

|
Epson USA Website
