Barco UDX-4K40
Artikelnummer: R9008949

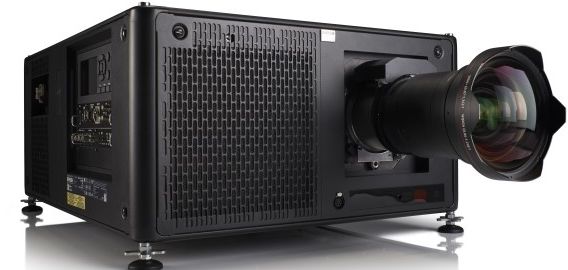

Image Barco UDX-4K40
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover the popular projector on Amazon.
Model Overview The Barco UDX-4K40 is a 3D-Laser-DLP projector offering 36500 ANSI lumens, a contrast of 2000:1 and a resolution of WQXGA 2560 x 1600. The manufacturer lists the lifespan for this model at 20000 hours. Daily use of 4 hours makes an operational lifespan of over 13.7 years possible.
For precise setup, the device features a lens shift mechanism that allows for purely optical image shifting. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projection Calculator.
Looking at practical performance, up to 1664 cm can be illuminated with 36500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 1109 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams.
For media input, video signals up to 1080P and 4K as well as 3D are supported, and also offers the technical capability for 360° projection. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs.
Display Type       3 x 0,9" DMD Chip
      WQXGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 36500 / 35500 4K UHD
Screen
 12167 Lux (200 cm Screen width)
Contrast 2000:1 2000:1
Black Level 18,2500 min. Lumen 6,093 min. Lumen
Lens shift Vert.: +130% -100% Hori.: +/-40%
 Lens shift
 		130%  195cm
100%  150cm
40%  80cm
40%  80cm
+ Projector
Resolution WQXGA 2560 x 1600
4.096.000 Pixel
UHD (4K2K+) 3840 x 2400 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser
Order Accessories
185,58 €
Light Life 20000 h.
Operating Costs 0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux: 12167 Lux
Contrast: 2000:1
Candela pro m²: 3872 cd/m²
Foot-Lamberts: 1130 fL
195 cm



Screen width:cm
          Room:
•
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio -
Connections Single HDBaseT
HDMI 2.0 (HDCP 2.2); DP 1.2 (HDCP 1.3)
Quad 3G/12G SDI
BarcoLink Ultra
RJ-45 connection
Ceiling Mounting Yes, is possible.
Power 3750W
Size WxHxD 660 x 350 x 830 mm (26"x13,8"x32,7") 191,73 L/dm³
Operating Noise 58dB

Shift: 195 cm

Shift: 80 cm

Shift: 80 cm

Shift: 150 cm
Weight 92,00 kg / 202,83 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 1130 fL / max. 1664 cm screen width
Candela m² 3872 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
360° installable
Edge Blending
Optional Wi-Fi network compatible.
Lan network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Barco UDX-4K40 compared to others current "Event" projectors.
Ansi-Lumen:
56 Weight:
54
Contrast:
1 dB:
30
Black level:
32 Power cons.:
33
Picture Total Points:30 Projector Total Points:39
Popularity Top 100
6 popularity points 67 popularity points 53 popularity points 6 popularity points 8 popularity points 13 popularity points
Points:
13
Ranking: 31 (From: 168)
Optional accessories
object lens OriginalR98030724.007,07 €
object lens OriginalR98030713.526,11 €
object lens OriginalR980172416.167,44 €
object lens OriginalR98017245.254,21 €
object lens OriginalR980172013.748,18 €
object lens OriginalR980172113.748,18 €
lens OriginalR98620404.861,51 €
lens OriginalR98620304.861,51 €
lens OriginalR98620206.403,85 €
lens OriginalR98620106.403,85 €
lens OriginalR986200511.605,10 €
lens OriginalR98022328.133,09 €
lens OriginalR940973016.558,66 €
object lens OriginalR980178518.396,53 €
object lens OriginalR98017841.008,00 €
object lens OriginalR98023652.058,13 €
object lens OriginalR98023601.690,48 €
object lens OriginalR98023003.770,99 €
object lens OriginalR98021889.117,05 €
object lens OriginalR98021879.860,09 €
object lens OriginalR98021865.255,52 €
object lens OriginalR98021855.413,14 €
object lens OriginalR98021834.872,73 €
object lens OriginalR9802182EOL €
object lens OriginalR98021815.413,14 €
object lens OriginalR98018402.368,92 €
object lens OriginalR980183213.969,30 €
object lens OriginalR9801211 / EN44EOL €
object lens OriginalR98017857.095,75 €
object lens OriginalR980172215.548,26 €
object lens OriginalR98017224.729,71 €
object lens OriginalR9801314EOL €
object lens OriginalR9801313EOL €
object lens OriginalR9832743EOL €
object lens OriginalR9832781EOL €
object lens OriginalR98327782.368,92 €
object lens OriginalR98327562.368,92 €
object lens OriginalR9832755EOL €
object lens OriginalR9801315 / EN56EOL €
object lens OriginalR9801312 / EN54EOL €
object lens OriginalR9801310 / EN51EOL €
object lens OriginalR9801249 / EN16EOL €
object lens OriginalR9801230 / EN43EOL €
object lens OriginalR9801228 / EN13EOL €
object lens OriginalR9801225 / EN15EOL €
object lens OriginalR9801221 / EN46EOL €
object lens OriginalR9801218 / EN12EOL €
object lens OriginalR9801216 / EN41EOL €
object lens OriginalR9801214 / EN11EOL €
object lens OriginalR9801209 / EN14EOL €
remote control OriginalR9803002185,58 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
R9862040 4.42-7.46:1 884-1492 m 50-65% +/-15% Powered
R9862030 2.74-4.43:1 548-886 m 50-65% +/-15% Powered
R9862020 2.02-2.73:1 404-546 m 50-65% +/-15% Powered
R9862010 1.49-2.03:1 298-406 m 50-65% +/-15% Powered
R9829997 7.41-11.03:1 1482-2206 m 50-65% +/-15% Powered
R9862005 1.25-1.6:1 250-320 m 50-65% +/-15% Powered
R9801414 0.93-1.33:1 186-266 m +/-50% +/-15% Powered
R9862001 0.71-0.93:1 142-186 m 50-55% +/-5% Powered
R9801661 0.42:1 84 m 50-65% 5-10%
Status 2018 Current model // Last update of the data: 2026-06-09
Created:
Data
Barco Website
Product Sheet english HC
User Manual english (16.71 MB)
