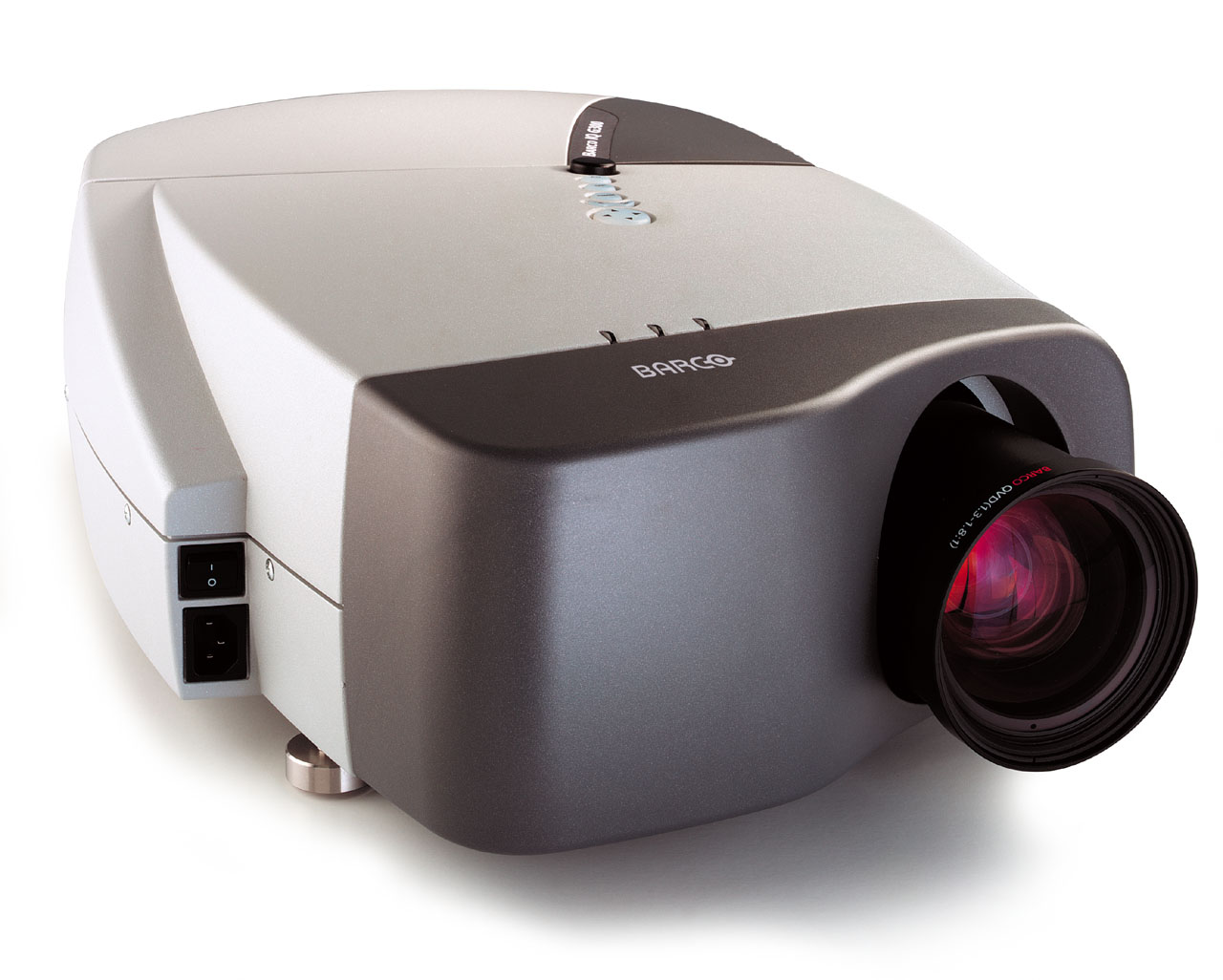

The hardware properties of the IQ Pro G300 manufactured by Barco include 3500 ANSI lumens, a XGA 1024 x 768 resolution and a contrast value of 400:1. The manufacturer rates the durability of the included lamp at 1500 hours. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projector Calculator. Regarding projection size, the value of 3500 ANSI lumens allows for an image width of up to 515 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 343 cm. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Equipped with a microphone jack and built-in speakers, audio signals during presentations can be played back directly without an external audio system. This model dates back to 2002 and is no longer part of Barco's current product range.
Display Type
3 x 1,3" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3500
Screen
1167 Lux (200 cm Screen width)
Contrast
400:1 full on/off
400:1 full on/off
Black Level
8,7500 min. Lumen
2,939 min. Lumen
Lens shift
Vert.: +60% --15% motorisch
Lens shift
45%
68cm
+
Projector 52 cm under screen top edge
Resolution
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes
NTSC, PAL, SECAM, NTSC 4.43, 1080i, 720p
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
1167 Lux
Contrast:
400:1
Candela pro m²:
370 cd/m²
Foot-Lamberts:
108 fL
90 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
nein
Connections
5 x BNC RGBHV in
Composite Video,
S-Video,
YUV in,
1x VGA (D15-Buchse)
1x DVI (Digital Visual Interface)
1x D9-Buchse für RS232C ein/aus
PCMCIA in
4 x USB in
RJ45 in
Mikrofon in
Ceiling Mounting
Yes, is possible.
Power
520W
Size WxHxD
415 x 195 x 590 mm (16,3"x7,7"x23,2") 47,75 L/dm³
Operating Noise
37dB
Shift: 90 cm
Shift: -23 cm
Weight
12,50 kg / 27,56 lbs.
Keystone
-
Illumination
95%
Frequenz
H-sync: 15-110 kHz V-sync: 25-150 Hz Range max.: 160 MHz
Lens shift Funktion motorisch Freeze User logo Gamma correction Digital image shift Picture-in-Picture Password protection Remote control with mouse control Remote control with backlight Optional Wi-Fi network compatible. Lan network compatible. Single lamp mode smooth image transition 4 x digital zoom, Pentium III 1.2 GHz, 256 MB RAM, 10 GB hard disc
Lens shift Funktion motorisch
