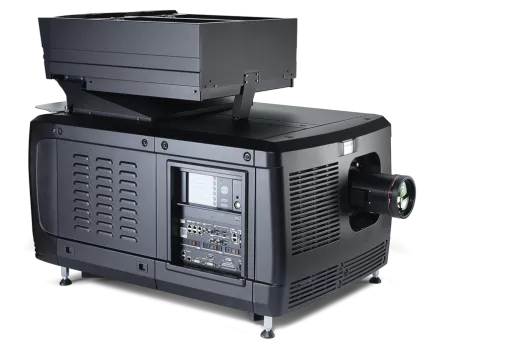

The Prometheus III model from Barco combines DLP technology in the Event sector with 11500 ANSI lumens, a contrast of 600:1 and a native UHD (4K+2K) 4096 x 2160 resolution. The laser technology ensures a specified light source lifespan of up to 30000 hours – calculating to 20.5 years at four hours of use per day. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Lens Calculator. Regarding projection size, the value of 11500 ANSI lumens allows for an image width of up to 1016 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 677 cm. For media input, video signals up to 1080P and 4K are supported. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2019, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
3 x 1,38" DLP Chip UHD 19/10 Ti Digital Light Processing Chip
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser
Light Life
30000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
5452 Lux
Contrast:
600:1
Candela pro m²:
1734 cd/m²
Foot-Lamberts:
506 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2 x HDMI2.0a (bis zu 4K 2D 60 fps)
2 x 3G-SDI-Eingänge
16 x AES/EBU-Audiokanäle (2 x RJ45)
8 x GPI
8 x GPO (4 x RJ45)
2 x Gbe für Content Connectivity und Einspielung
2 x vorderseitige USB 3.0-Anschlüsse für schnelle Einspielung
2 x vorderseitige USB 2.0-Anschlüsse
RS232
TCP/IP
Ceiling Mounting
Yes, is possible.
Power
3300W
Size WxHxD
754 x 604 x 1129 mm (29,7"x23,8"x44,4") 514,16 L/dm³
Full HD 1080P compatible
Barco Website
Product Sheet english HC
