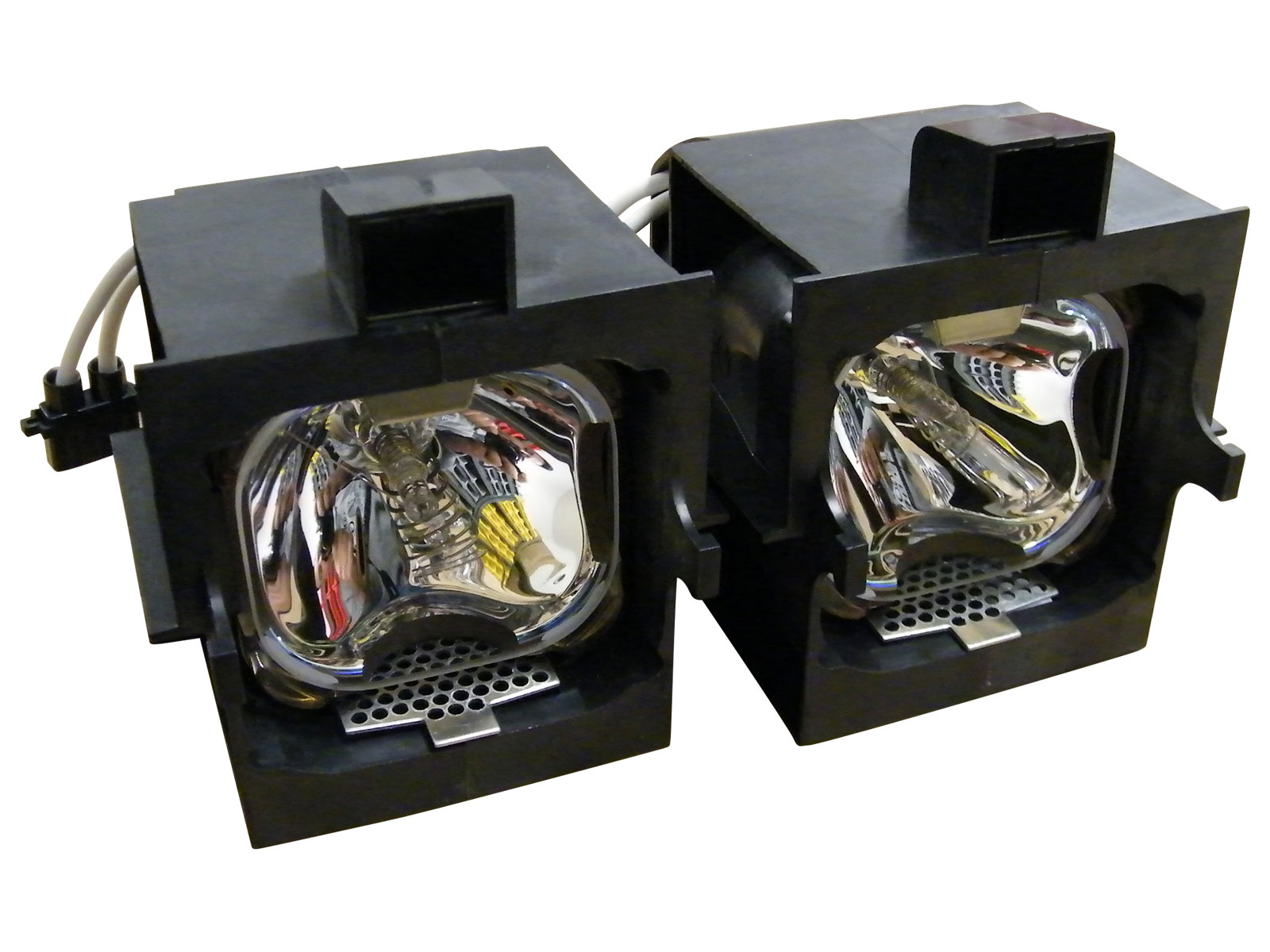

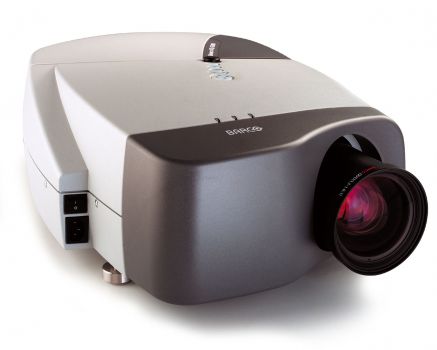

As a projector for the Stationary sector, the Barco IQ Pro G500 is equipped with 5000 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 800:1. The runtime of the lamp in this model is estimated at 1000 hours before a replacement is necessary. For precise setup, the device features a lens shift mechanism that allows for purely optical image shifting. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Lens Calculator. A look at the light output reveals: The 5000 ANSI lumens are sufficient to illuminate an image width of up to 616 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 411 cm. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2003 and is no longer part of Barco's current product range.
Display Type
3 x 1,4" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
5000
Screen
1667 Lux (200 cm Screen width)
Contrast
800:1 full on/off
800:1 full on/off
Black Level
6,2500 min. Lumen
2,092 min. Lumen
Lens shift
Vert.: +60% --15% motorisch
Lens shift
45%
68cm
+
Projector 52 cm under screen top edge
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Video Modes
NTSC, PAL, SECAM, NTSC 4.43, 1080i, 720p
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
1667 Lux
Contrast:
800:1
Candela pro m²:
531 cd/m²
Foot-Lamberts:
155 fL
90 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
nein
Connections
5 x BNC RGBHV in
Composite Video,
S-Video,
YUV in,
1x VGA (D15-Buchse)
1x DVI (Digital Visual Interface)
1x D9-Buchse für RS232C ein/aus
PCMCIA in
4 x USB in
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
650W
Size WxHxD
415 x 195 x 590 mm (16,3"x7,7"x23,2") 47,75 L/dm³
Operating Noise
38dB
Shift: 90 cm
Shift: -23 cm
Weight
20,00 kg / 44,09 lbs.
Keystone
-
Illumination
95%
Frequenz
H-sync: 15-110 kHz V-sync: 25-150 Hz Range max.: 160 MHz
Lens shift Funktion motorisch Freeze User logo Gamma correction Digital image shift Picture-in-Picture Password protection Remote control with mouse control Remote control with backlight Control via web browser Optional Wi-Fi network compatible. Lan network compatible. Singel Lamp mode smooth picture transition 4 x digital zoom, integrated server platform Pentium III 1.2 GHz processor, 256 MB RAM, 40 GB hard disk
Lens shift Funktion motorisch
