Designed for the Event sector, the PX2000UL model from Nec features 18000 ANSI lumens, a native WUXGA 1920 x 1200 resolution and a contrast ratio of 10000:1. The laser technology ensures a specified light source lifespan of up to 20000 hours, which translates to 13.7 years with 4 hours of daily use. Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment without distortion. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Lens Calculator. Regarding projection size, the value of 18000 ANSI lumens allows for an image width of up to 1363 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 909 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. An additional 360° projection capability allows the device to be oriented at almost any angle. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. This model dates back to 2019 and is no longer part of Nec's current product range.
Display Type
1 x DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
8000 Lux
Contrast:
10000:1
Candela pro m²:
2546 cd/m²
Foot-Lamberts:
743 fL
17 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-

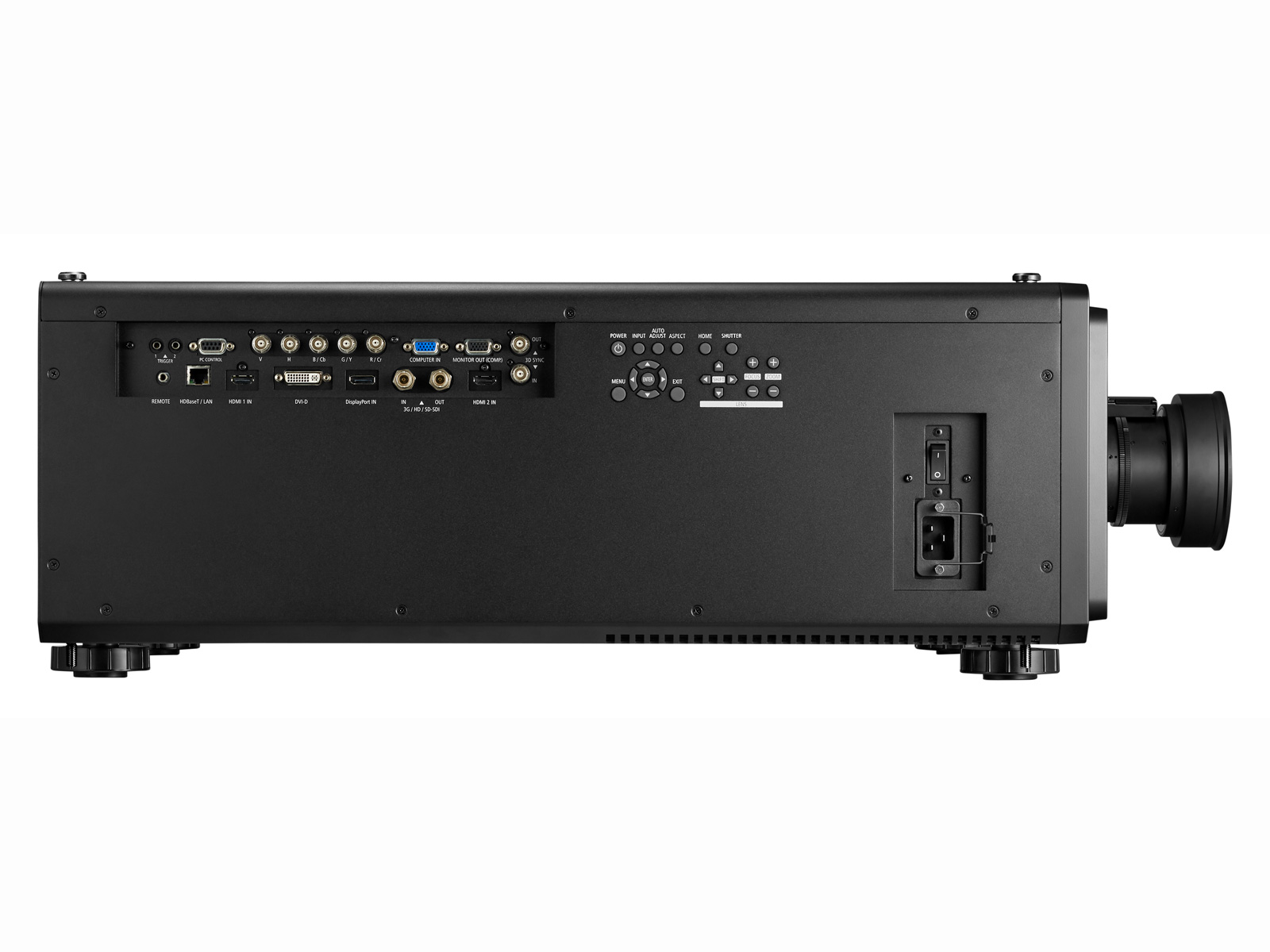

Connections
2 x HDMI in
1 x 3G-SDI in und out
1 x DVI-D
HDBaseT
DisplayPort-Ausgang mit HDCP
D-sub 15pin in und out
USB in
1 x3d Sync BNC IN und OUT
RS232C Din 9 pin in
RJ45 in
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot 360° installable 24/7 continuous operation capable Edge Blending PJLink™ Lan network compatible. Crestron®-Software compatible. Dicom
Real Full HD 3D
Nec Website
Product Sheet english HC
