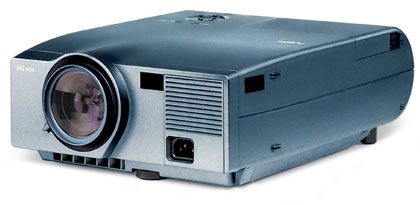

Based on LCD technology, the Nec MT1056 projects images in a Standard-Portabel environment, with technical specs listing 3000 ANSI lumens, a contrast of 450:1 and a XGA 1024 x 768 resolution. The manufacturer lists the lamp life at 1500 hours. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projection Calculator. Looking at practical performance, up to 477 cm can be illuminated with 3000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 318 cm. As an additional feature, an integrated media player enables the direct playback of files without an external source device. This model dates back to 2002 and is no longer part of Nec's current product range.
Display Type
3 x 1,3" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3000 / 1500 im Eco Mode
Screen
1000 Lux (200 cm Screen width)
Contrast
450:1 full on/off
450:1 full on/off
Black Level
6,6667 min. Lumen
2,237 min. Lumen
Offset
45% 7 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM, NTSC 4.43, Pal 60 Media player formats: txt, idx, HTML, JPEG und BMP
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Integrated Mediaplayer Freeze Blackboard Modus Eco Mode Kensington Slot sRGB Gamma correction Remote control with laser pointer und mouse control Crestron®-Software compatible. digital Zoom bis 400 Advanced AccuBlend™
Integrated Mediaplayer
