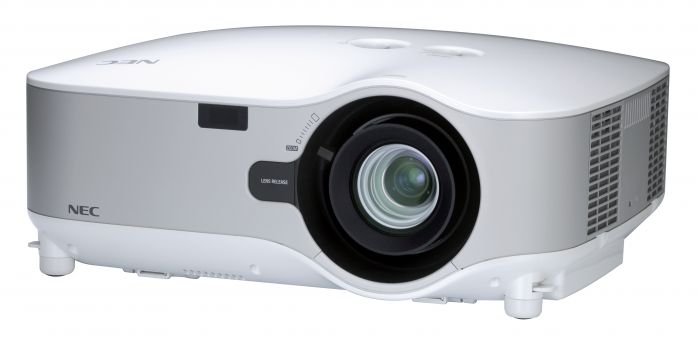

The hardware properties of the NP1000 manufactured by Nec include 3500 ANSI lumens, a XGA 1024 x 768 resolution and a contrast value of 800:1. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment without distortion. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Lens Calculator. A look at the light output reveals: The 3500 ANSI lumens are sufficient to illuminate an image width of up to 515 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 343 cm. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2006 and is officially no longer distributed by Nec.
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Video Modes
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p Media player formats: JPEG BMP PNG GIF Index
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
DVI-D mit HDCP in
D-sub 15pin in und out
5 x BNC RGBHV in
YUV in
S-Video in
Cinch Video in
2 x Cinch Stereo in 1 x out
RJ45in
PCMCIA Slot Type-2
RS232C D-sub15pin
USB Typ A
Mini Jack in
Direkt Power Off Lens shift Funktion manuell Integrated Mediaplayer Freeze Blackboard Modus Eco Mode Kensington Slot sRGB Gamma correction Warping Password protection Remote control with laser pointer und mouse control Optional Wi-Fi network compatible. Lan network compatible. Auto Colour Correction, Remote Control with Mouse Function, 3-Step Security System, 4x Digital Zoom,

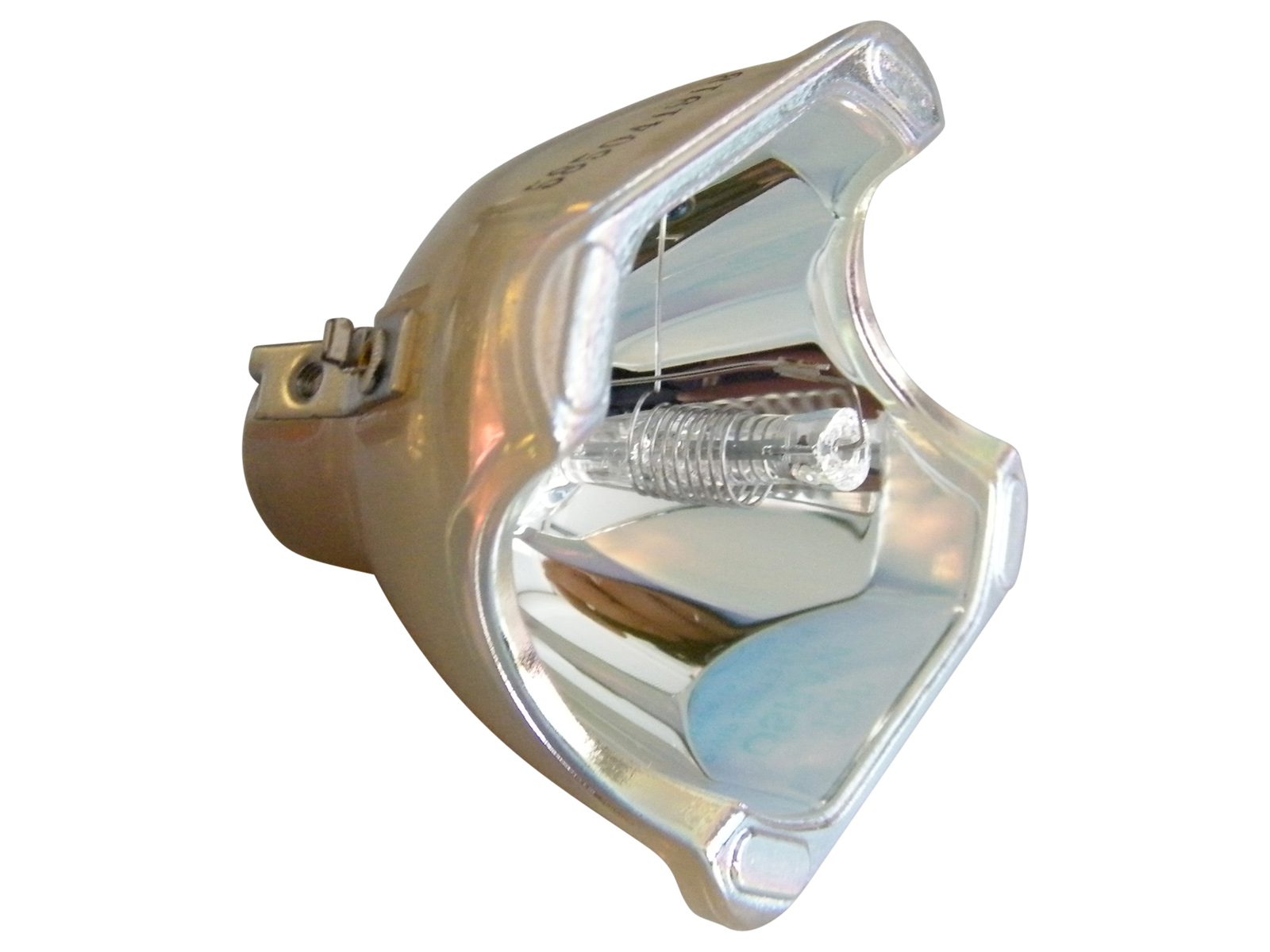

the beamer is absolutely top class. unfortunately mine is defective. it comes on normally but switches off again after a few seconds. 5x flashing red = lamp fault according to the description. Can anyone help? lamp defective? ballast unit?
