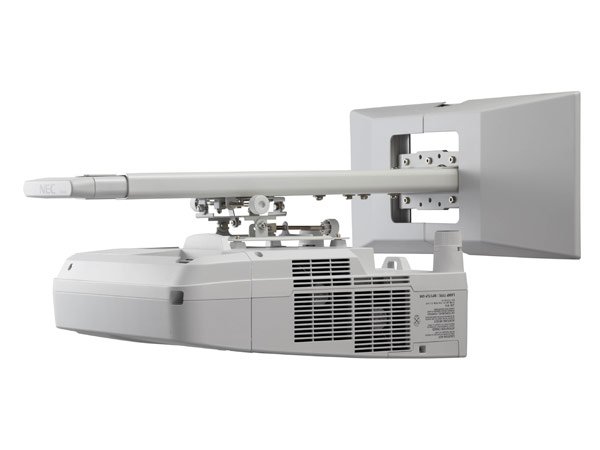

With the UM330X, Nec offers a Laser-LCD projector that features 3300 ANSI lumens, a contrast of 3000:1 and a resolution of XGA 1024 x 768. The manufacturer lists the lamp life at 3000 hours. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 72 cm. A look at the light output reveals: The 3300 ANSI lumens are sufficient to illuminate an image width of up to 500 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 333 cm. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2012 and is officially no longer distributed by Nec.
Display Type
3 x 0,63" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3300
Screen
1100 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
1,1000 min. Lumen
0,367 min. Lumen
Offset
76% 39 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel WUXGA 1920 x 1200 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p Media player formats: JPEG
Disc Recognition
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
Application
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Direkt Power Off Integrated Mediaplayer Blackboard Modus User logo Eco Mode Password protection PJLink™ Optional Wi-Fi network compatible. Lan network compatible. Short-throw projector Crestron®-Software compatible. Offset und Projektionsverhältnis sind nach Objektivmitte.
Direkt Power Off
