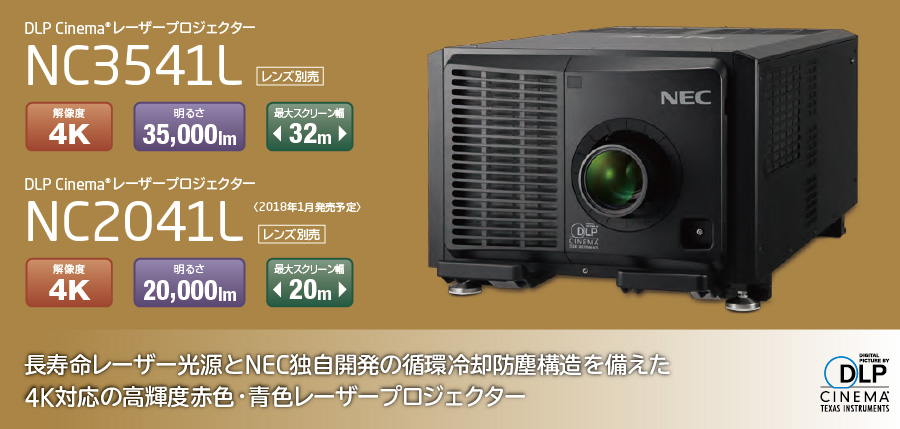

Designed for the E-Cinema sector, the NC3541L model from Nec features 35000 ANSI lumens, a native UHD (4K+2K) 4096 x 2160 resolution and a contrast ratio of 2000:1. Using this laser phosphor technology, the light source runtime is rated at 30000 hours, which translates to 20.5 years with 4 hours of daily use. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Projector Calculator. Looking at practical performance, up to 1582 cm can be illuminated with 35000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 1055 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Display Type
3 x 1,38" DLP Chip UHD 19/10 Ti Digital Light Processing Chip
E-Cinema | Digital Cinema (D-Cinema) in the movie theater. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
RB-Lasertechnologie
Light Life
30000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
16593 Lux
Contrast:
2000:1
Candela pro m²:
5283 cd/m²
Foot-Lamberts:
1542 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
1 x GPIO (3D) (D-sub 15 pin female); 1 x GPIO (D-sub 0 pin female); 1 x RJ45 100Base-T
2 x RJ45 (4 GPI and 6 GPO) external controls
2 x RJ45 Gigabit Ethernet
2 x RJ45 (16-channel AES3-EBU Digital Audio) out
1 x USB Type 2.0
2 x 3GSDI bidirectional (input and output)
2 x USB Type 3.0
eSATA
HDMI
Ceiling Mounting
Yes, is possible.
Power
4885W
Size WxHxD
697 x 455 x 1180 mm (27,4"x17,9"x46,5") 374,22 L/dm³
Real Full HD 3D
Nec Website
Product Sheet english
