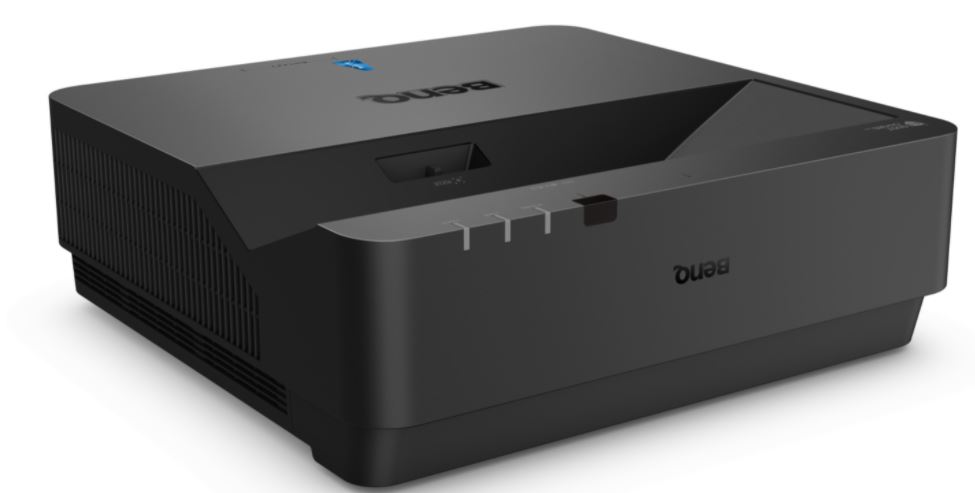

Known as the LU960UST, this 3D-DLP projector by Benq features basic specs of 5200 ANSI lumens, a contrast of 3000000:1 at a WUXGA 1920 x 1200 resolution. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 50 cm. A look at the light output reveals: The 5200 ANSI lumens are sufficient to illuminate an image width of up to 733 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 489 cm. Regarding signal processing, the model is compatible with incoming 1080P content, and also offers the technical capability for 360° projection. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. Since entering the market in 2021, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,48" DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Short Distance | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
Laser
Light Life
20000 h. / 38000 h. in Eco Mode
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
50 cm (no Zoom)
Lux:
2311 Lux
Contrast:
3000000:1
Candela pro m²:
737 cd/m²
Foot-Lamberts:
215 fL
69 cm
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
0,25:1
Audio
10W
Connections
2x HDMI in
HDMI out
Display Port
D-sub 15pin in und out
3D Sync in und out
HDBaseT
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
Wired Remote
12V Trigger out
Ceiling Mounting
Yes, is possible.
Power
450W / 339W in Eco Mode
Size WxHxD
480 x 157,4 x 473 mm (18,9"x6,2"x18,6") 35,65 L/dm³
Full HD 1080P compatible
