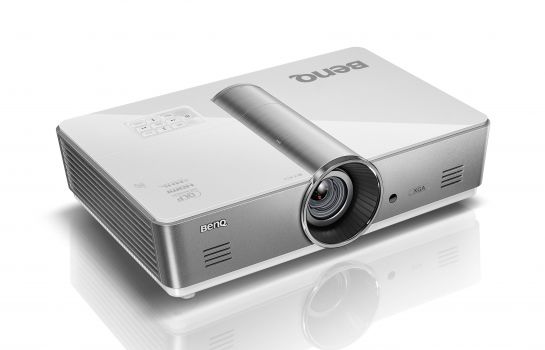

Known as the SX920+, this 3D-DLP projector by Benq features basic specs of 5200 ANSI lumens, a contrast of 3000:1 at a XGA 1024 x 768 resolution. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Lens Shift Calculator helps find the optimal installation dimensions. Looking at practical performance, up to 628 cm can be illuminated with 5200 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 419 cm. For media input, video signals up to 1080P as well as 3D are supported. Thanks to MHL support, screen content from mobile devices can be transmitted via cable, including charging power for the device. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since entering the market in 2018, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5200
Screen
1733 Lux (200 cm Screen width)
Contrast
3000:1 full on/off
3000:1 full on/off
Black Level
1,7333 min. Lumen
0,578 min. Lumen
Lens shift
Vert.: +80% --65% Hori.: +/-2,5%
Lens shift
15%
23cm
2.5%
5cm
2.5%
5cm
+
Projector 23 cm over screen top edge.
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
2 x HDMI 1.4 mit MHL in
DVI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
Ceiling Mounting
Yes, is possible.
Power
594 / 400W in Eco Mode
Size WxHxD
411,4 x 118,4 x 267,5 mm (16,2"x4,7"x10,5") 12,95 L/dm³
Real Full HD 3D
