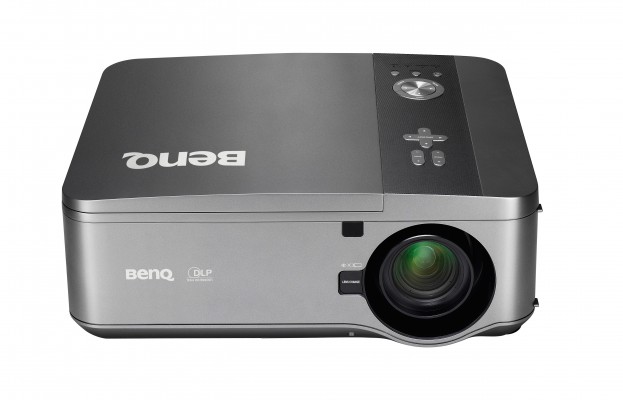

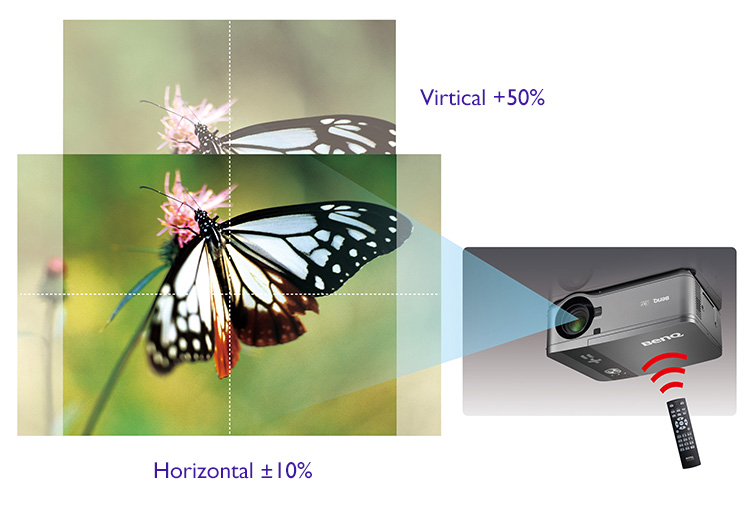

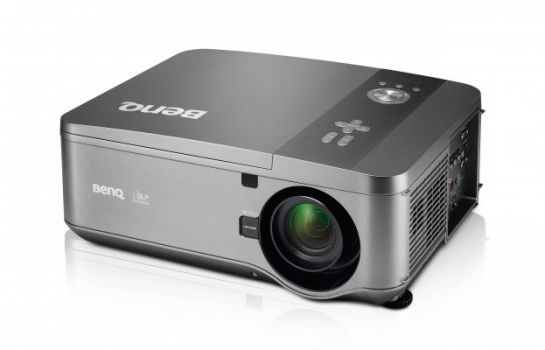

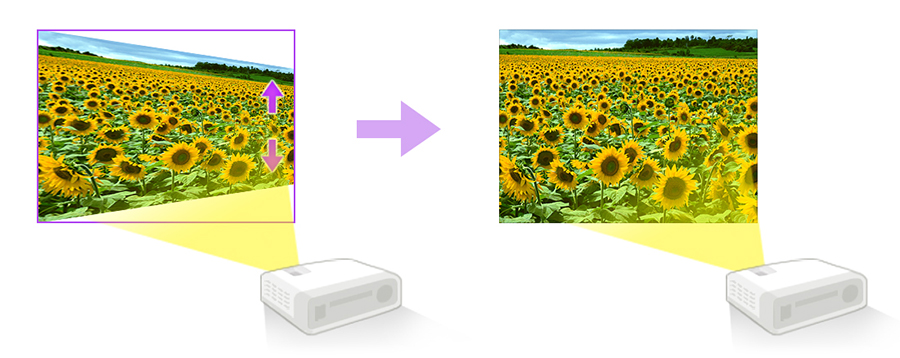

Based on DLP technology, the Benq PX9510 projects images in a Stationary environment, with technical specs listing 6500 ANSI lumens, a contrast of 2800:1 and a XGA 1024 x 768 resolution. The runtime of the lamp in this model is estimated at 3000 hours before a replacement is necessary. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projection Calculator. Looking at practical performance, up to 702 cm can be illuminated with 6500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 468 cm. Regarding signal processing, the model is compatible with incoming 1080P content, and also offers the technical capability for 360° projection. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. The projector was released in 2015 and is officially no longer distributed by Benq.
Display Type
1 x DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2167 Lux
Contrast:
2800:1
Candela pro m²:
689 cd/m²
Foot-Lamberts:
201 fL
75 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
HDMI in
DVI-D in
D-sub 15pin in und out
5 x BNC RGBHV in
YUV in
Cinch Video in
S-Video in
USB Typ B in
RS232C Din 9 pin in
RJ45 mit HDBaseT in
12V Trigger out
Full HD 1080P compatible
Benq Website
Product Sheet english
