Brief Introduction
Beta 2.5 |

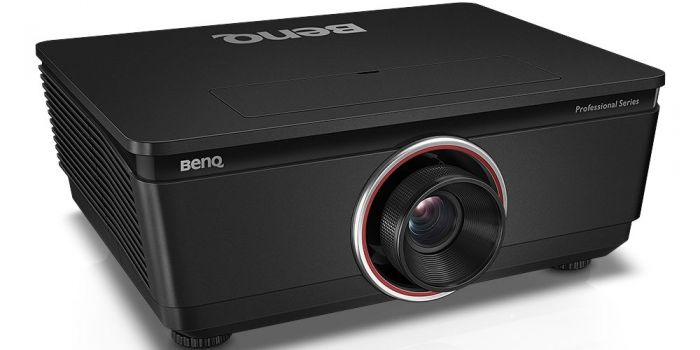

A brief introduction to the Benq PX9230. The large-screen DLP projector has an XGA 1024 x 768 resolution and a contrast of 6000:1. The projector also offers a lens shift function, which makes image adjustment childs play. An image width of up to 675 cm is possible as the projector has 6000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 450 cm. It is also Full HD 1080P and 3D compatible. Even projection onto the ceiling is possible thanks to the 360° projection. The projector was launched in 2018 and is no longer sold by the manufacturer, but is still very popular in our projector database.
|
| Display Type |
1 x 0,7" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
6000 |
Screen |
2000 Lux (200 cm Screen width) |
| Contrast |
6000:1 |
6000:1
|
| Black Level |
1,0000 min. Lumen |
0,334 min. Lumen |
| Lens shift |
Vert.: +50% -10% Hori.: +/-5%
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
-
Article Nr.: 5J.JHC05.001
|
|
| Light Life |
3000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
2000 Lux |
|
Room light max.: |
400 Lux |
|
Candela pro m²: |
637 cd/m² |
|
Foot-Lamberts: |
186 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
HDMI in
Display Port
DVI in
3D Sync in und out
D-sub 15pin 2x in und out
Cinch Video in
Cinch Stereo in
Wired Remote
12 V Trigger out
S-Video in
Mini Jack Audio 2x in und out
USB in Type A und B
RS232C Din 9 pin in
RJ45 in HDBaseT
Component
PR Y PB M v
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
480 / 355W in Eco Mode |
| Size WxHxD |
431 x 167 x 320 mm (17"x6,6"x12,6") 23,03 L/dm³
|
| Operating Noise |
38 / 35 dB in Eco Mode |
Shift: 75 cm
|
Shift: 10 cm
|
|
Shift: 10 cm
|
| |
|
|
| Weight |
8,60 kg / 18,96 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-102 kHz
V-sync: 23-120 Hz
|
| Foot-Lamberts |
186 fL
/ max. 675 cm screen width |
| Candela m² |
637 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
360° installable
PJLink™
Lan network compatible.
Crestron®-Software compatible.
AMX
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Benq PX9230 compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
4 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
79 |
| Black level: |
|
98 |
Power cons.: |
|
97 |
| Picture Total Points: | 34 |
Projector Total Points: | 92 |
|
| Popularity Top 100 |
|
| Points: |
|
47 |
| Ranking: |
82 (From: 576) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2018-10-28 14:02:12
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (18.16 MB)

|
Benq Website
