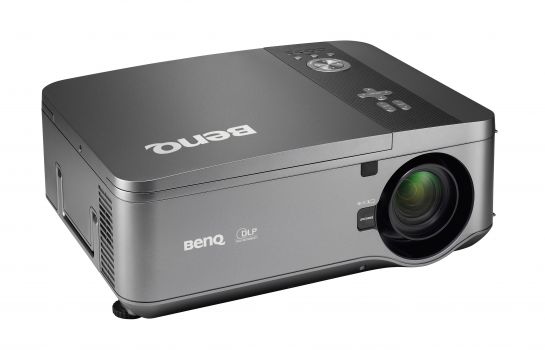

The projector PU9530 by Benq utilizes DLP technology and, according to the spec sheet, achieves 6000 ANSI lumens, a contrast of 2800:1 at a resolution of WUXGA 1920 x 1200. According to Benq, the lamp has a durability of 2500 hours. Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment without distortion. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projection Calculator. Regarding projection size, the value of 6000 ANSI lumens allows for an image width of up to 787 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 525 cm. For media input, video signals up to 1080P are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. The projector was released in 2015 and is officially no longer distributed by Benq.
Display Type
1 x DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
2667 Lux
Contrast:
2800:1
Candela pro m²:
850 cd/m²
Foot-Lamberts:
248 fL
56 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
HDMI 1.4 in
DVI-D mit HDCP in
D-sub 15pin in und out
5 x BNC RGBHV in
YUV in
Cinch Video in
S-Video in
USB Typ B in
RS232C Din 9 pin in
RJ45 mit HDBaseT in
12V Trigger out
Full HD 1080P compatible
