Brief Introduction
Beta 2.5 |

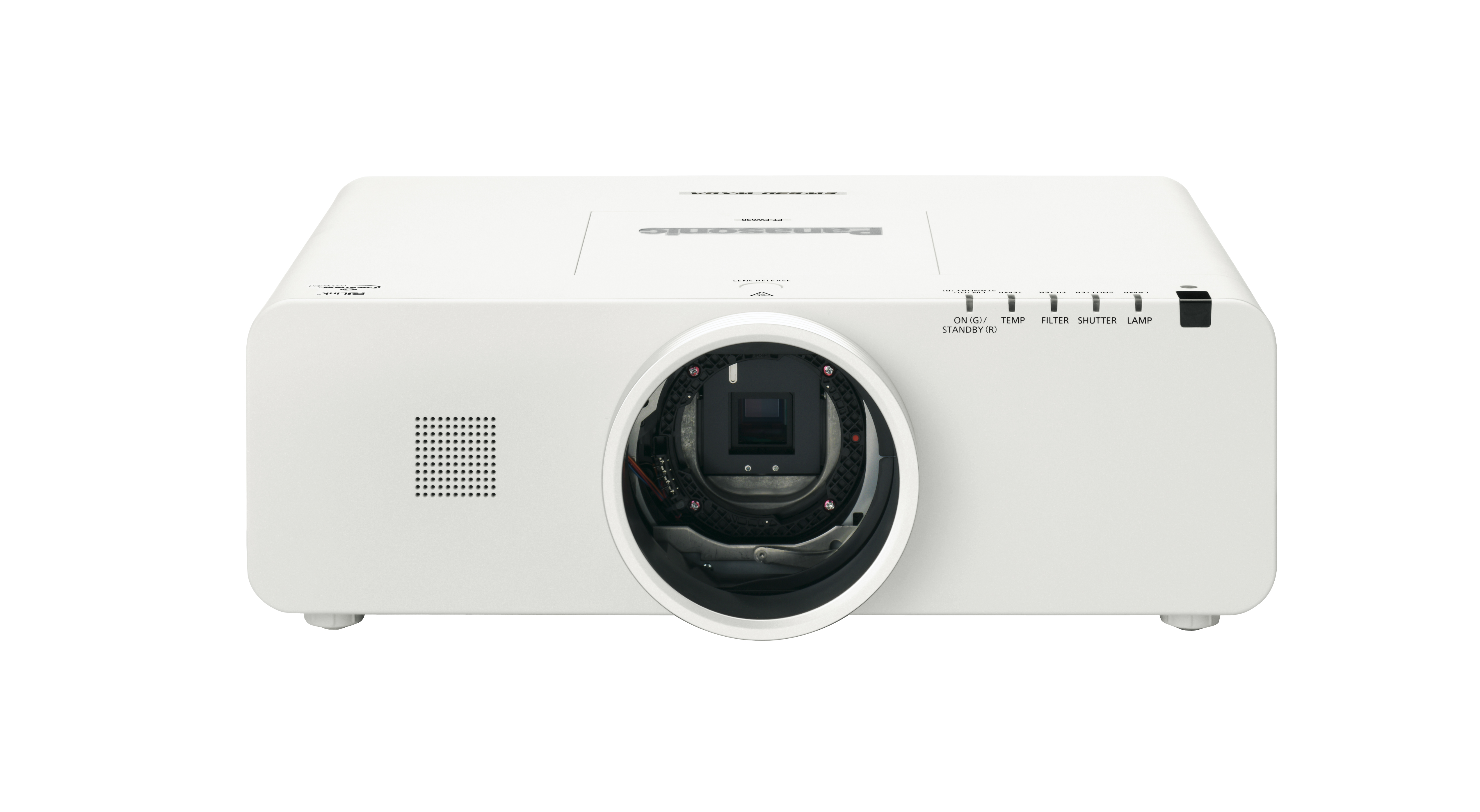

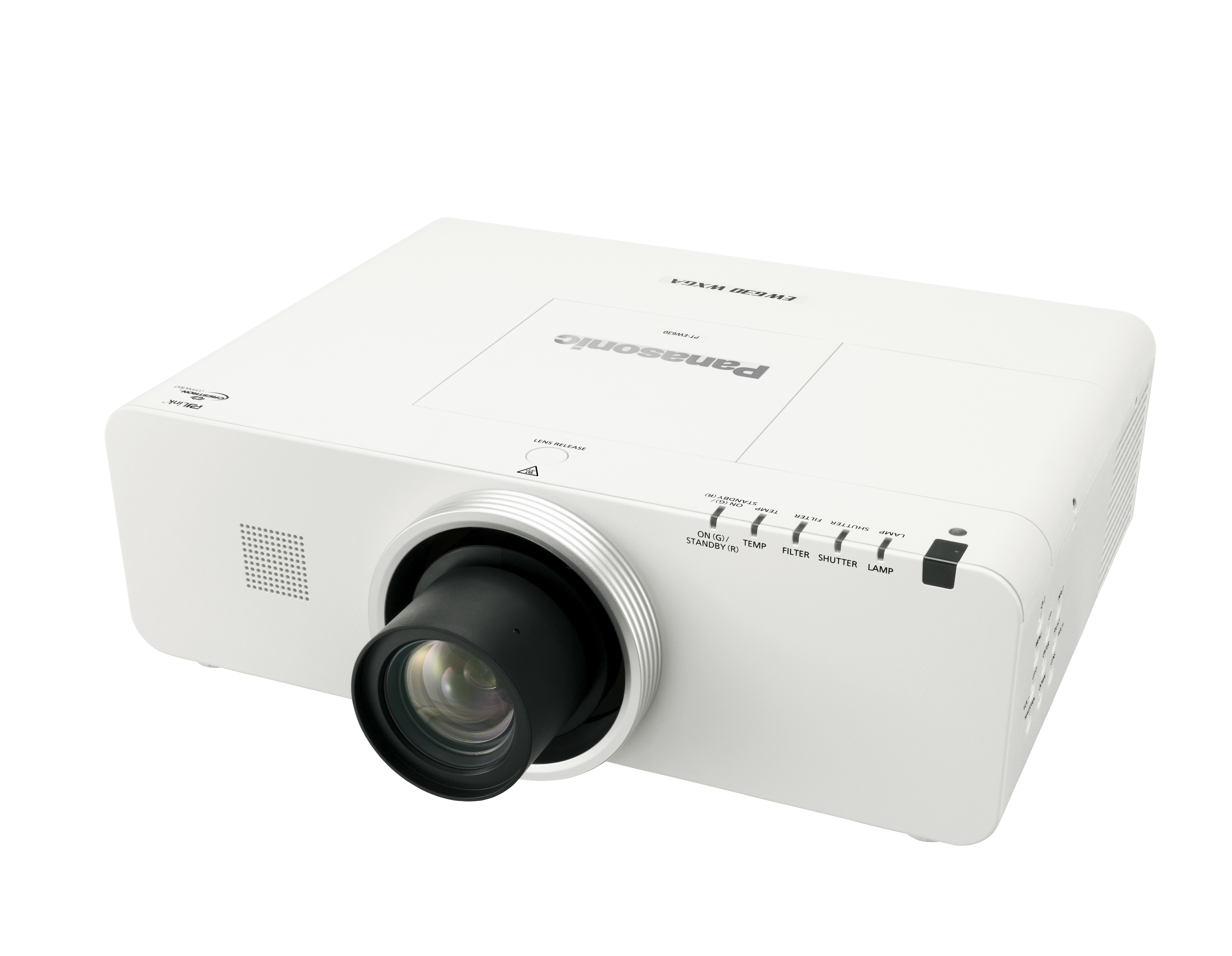

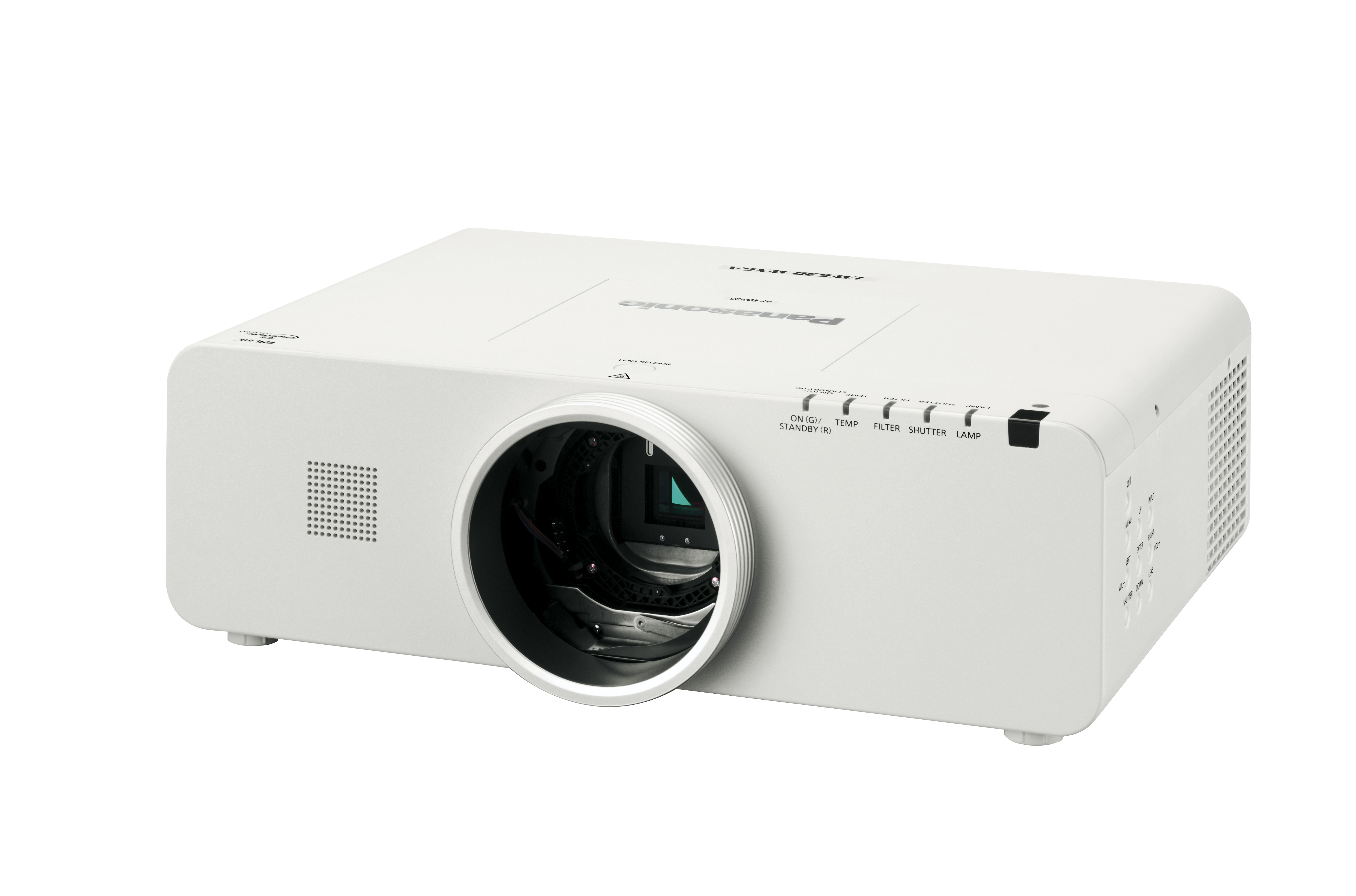

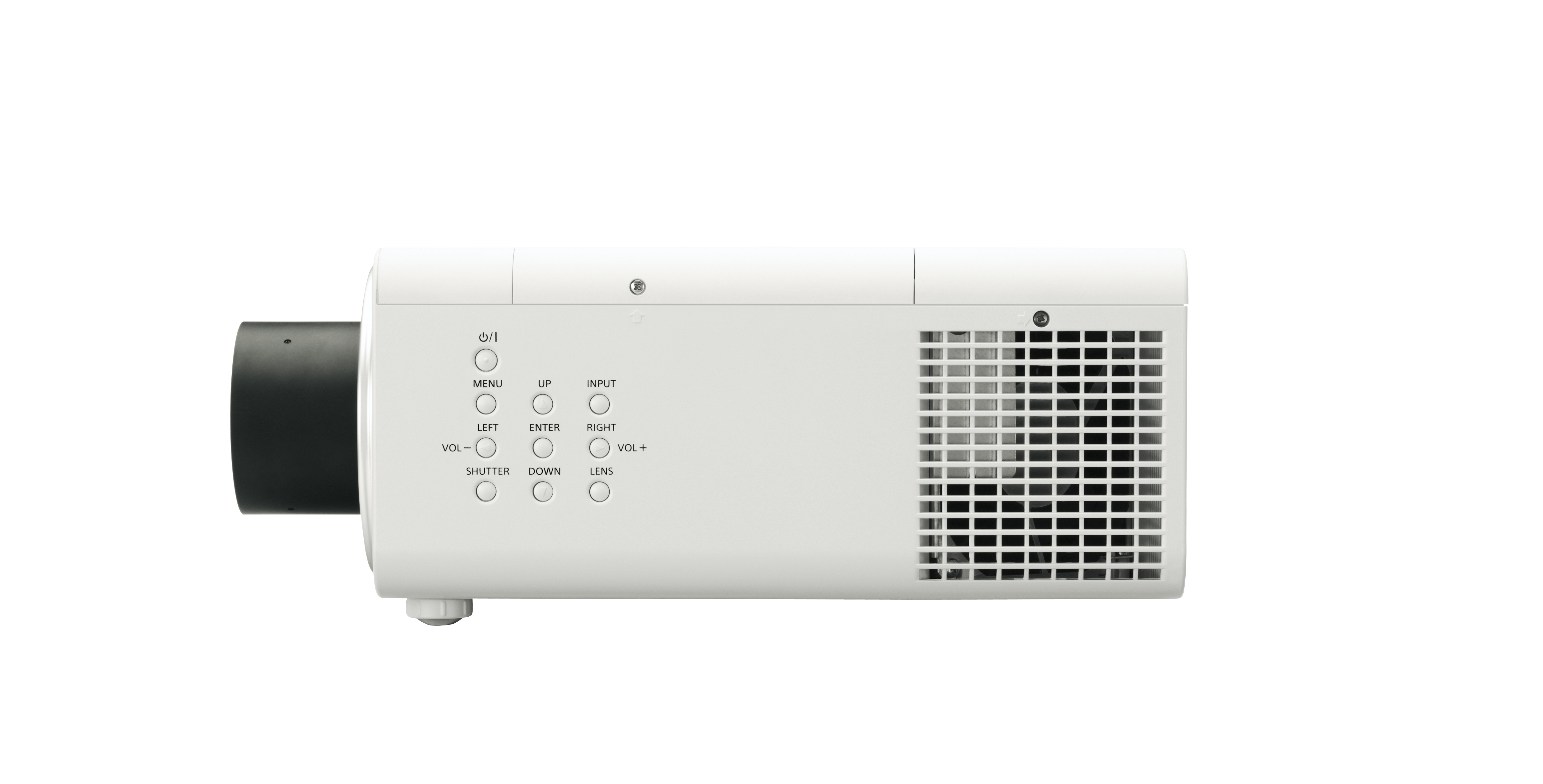

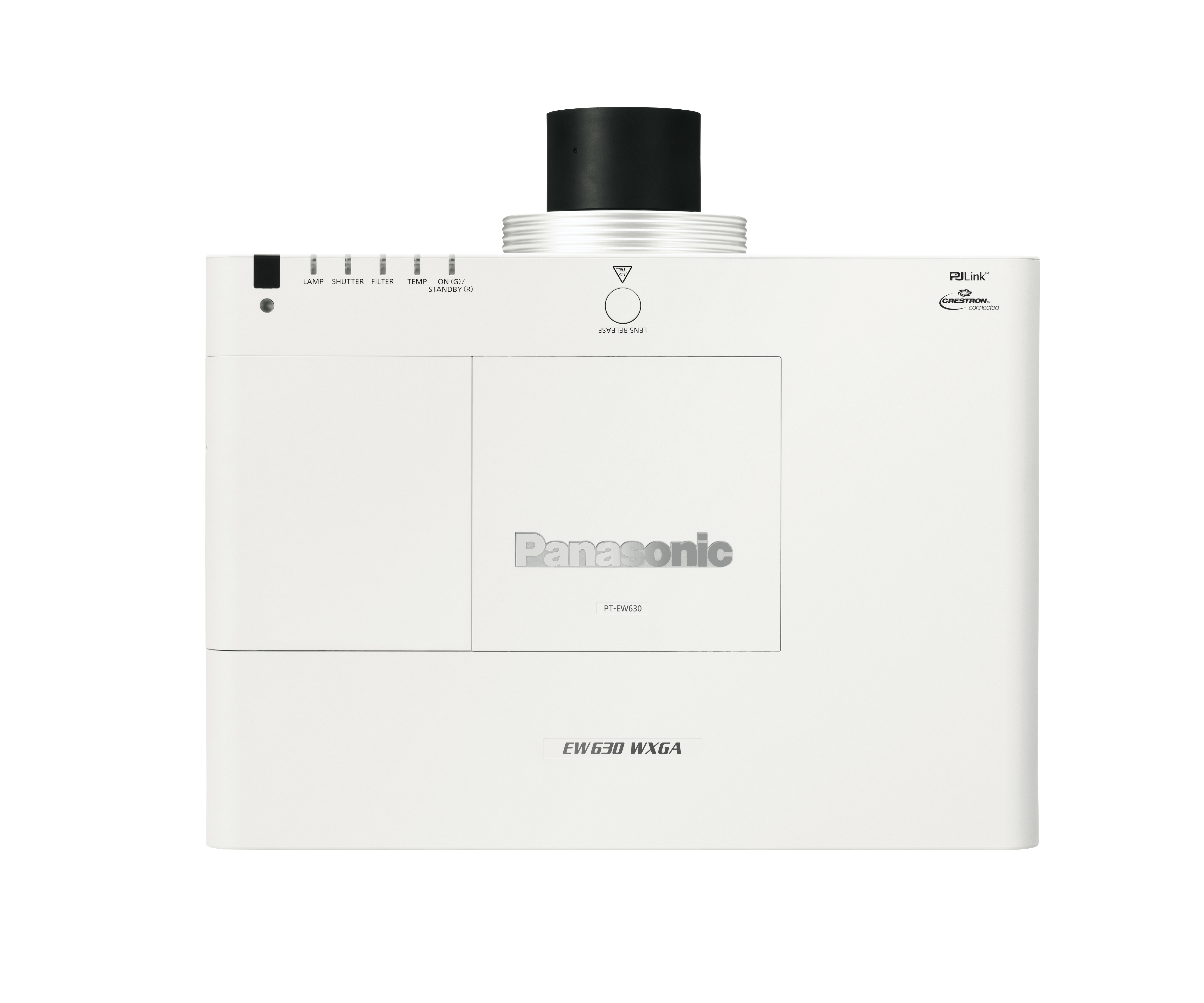

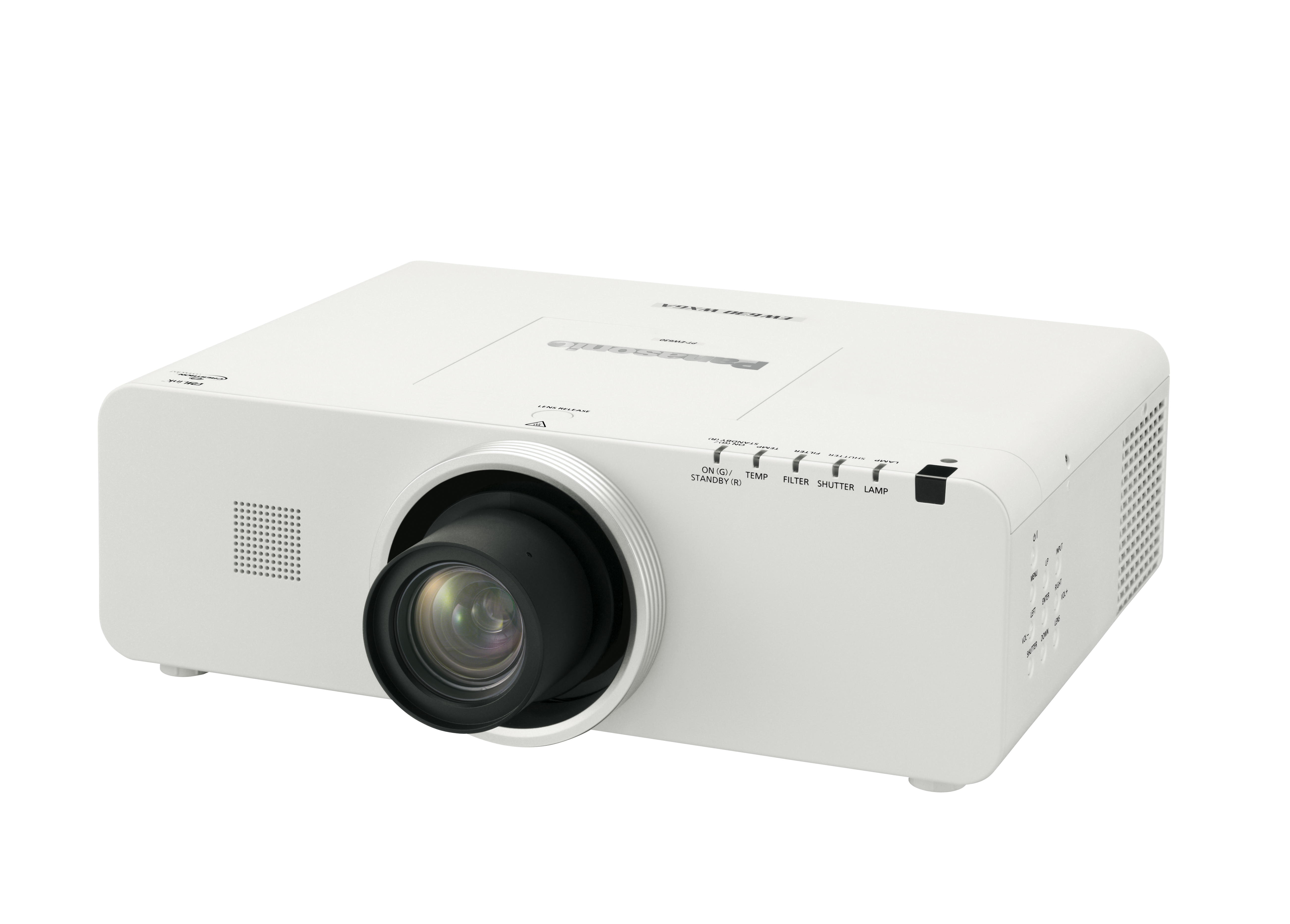

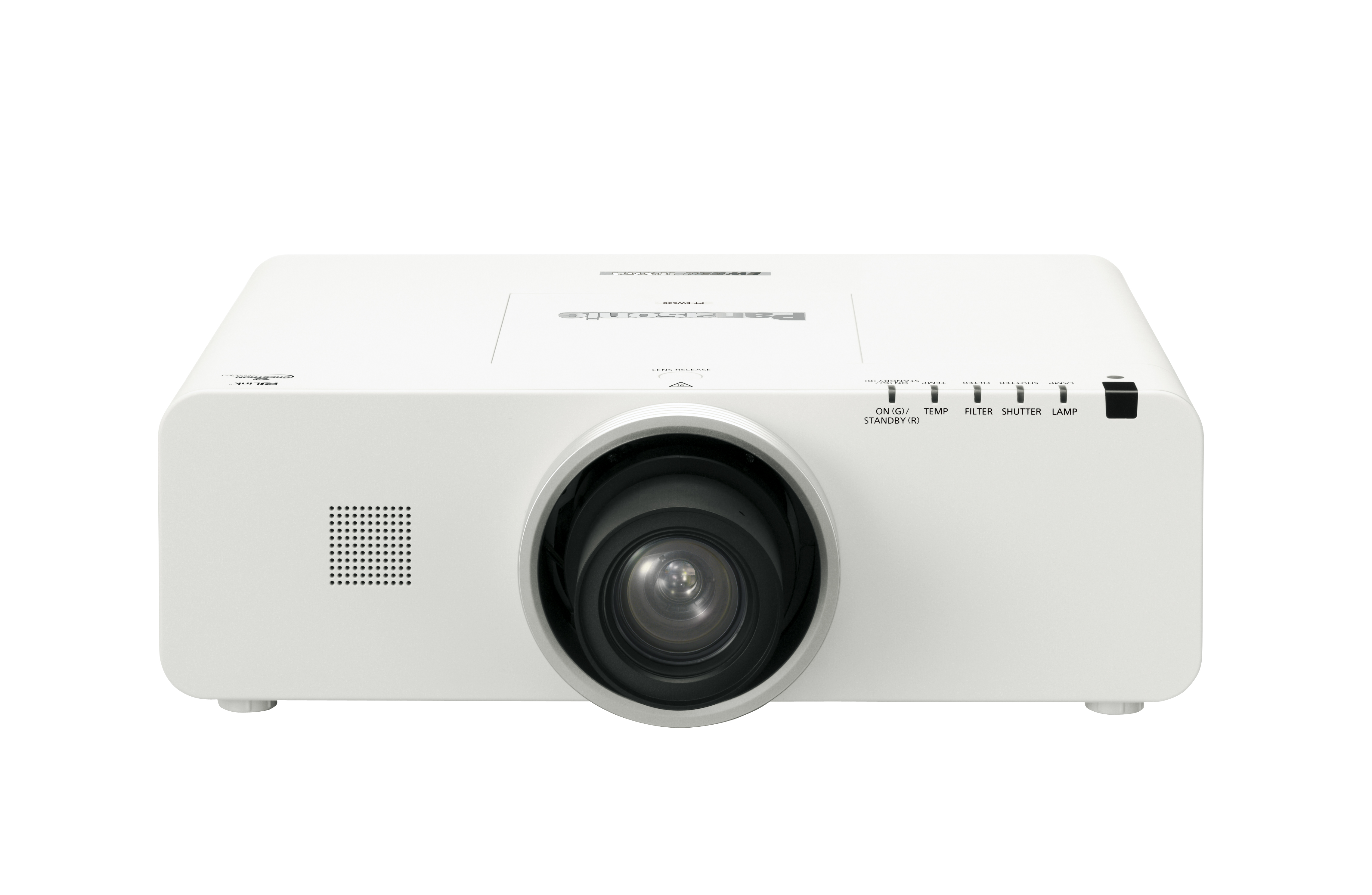

A brief introduction to the Panasonic PT-EW630 E/U/L. The LCD projector has a WXGA 1280 x 800 resolution and a contrast of 5000:1. The built-in lens shift and keystone correction function provides freedom when setting up. An image width of up to 753 cm is possible as the projector has 5500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 502 cm is recommended. Even 1080P video signals are no problem for the projector, which can even project Blu-rays onto the ceiling thanks to 360° projection. It was launched in 2012 and is no longer offered by the manufacturer Panasonic.
|
| Display Type |
3 x 0,75" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
5500 |
Screen |
2200 Lux (200 cm Screen width) |
| Contrast |
5000:1 full on/off |
5000:1 full on/off
|
| Black Level |
1,1000 min. Lumen |
0,44 min. Lumen |
| Offset |
0,0% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |

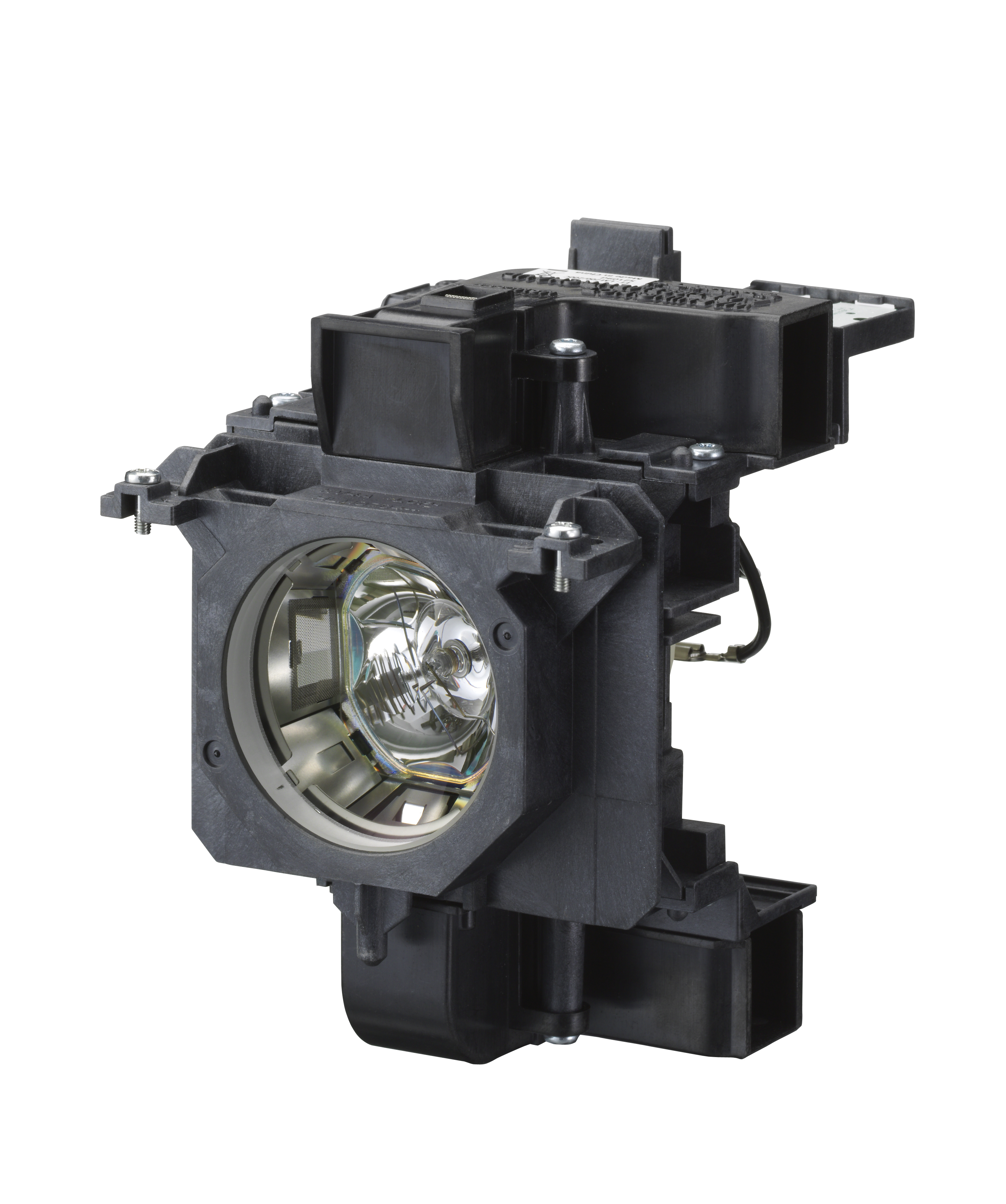

| Light Source |
330W UHM Lamp
Article Nr.: ET-LAE200
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
160 cm (no Zoom)
|
 |
|
Lux: |
2200 Lux |
|
Room light max.: |
440 Lux |
|
Candela pro m²: |
699 cd/m² |
|
Foot-Lamberts: |
204 fL |
|
 |
| 0 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
ET-ELW21 |
| Throw Ratio |
0,8:1 |
| Audio |
10W Mono |
| Connections |
HDMI in
DVI-D in
D-sub 15 pin in
5 x BNC RGBHV in
YUV in
S-Video in
Cinch Video in
Cinch Stereo in und out
RJ45 in
RS232C Din 9 pin in |

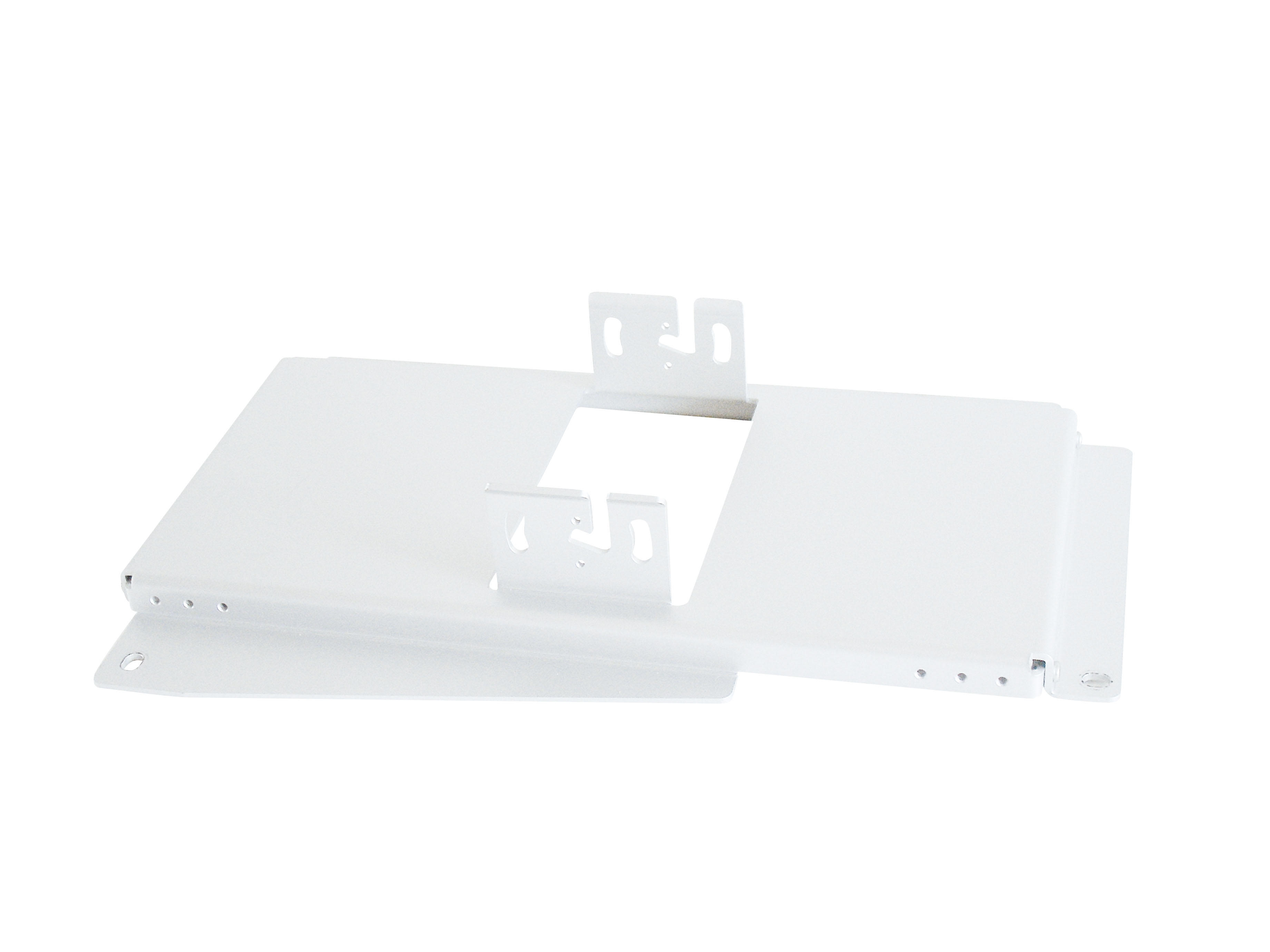

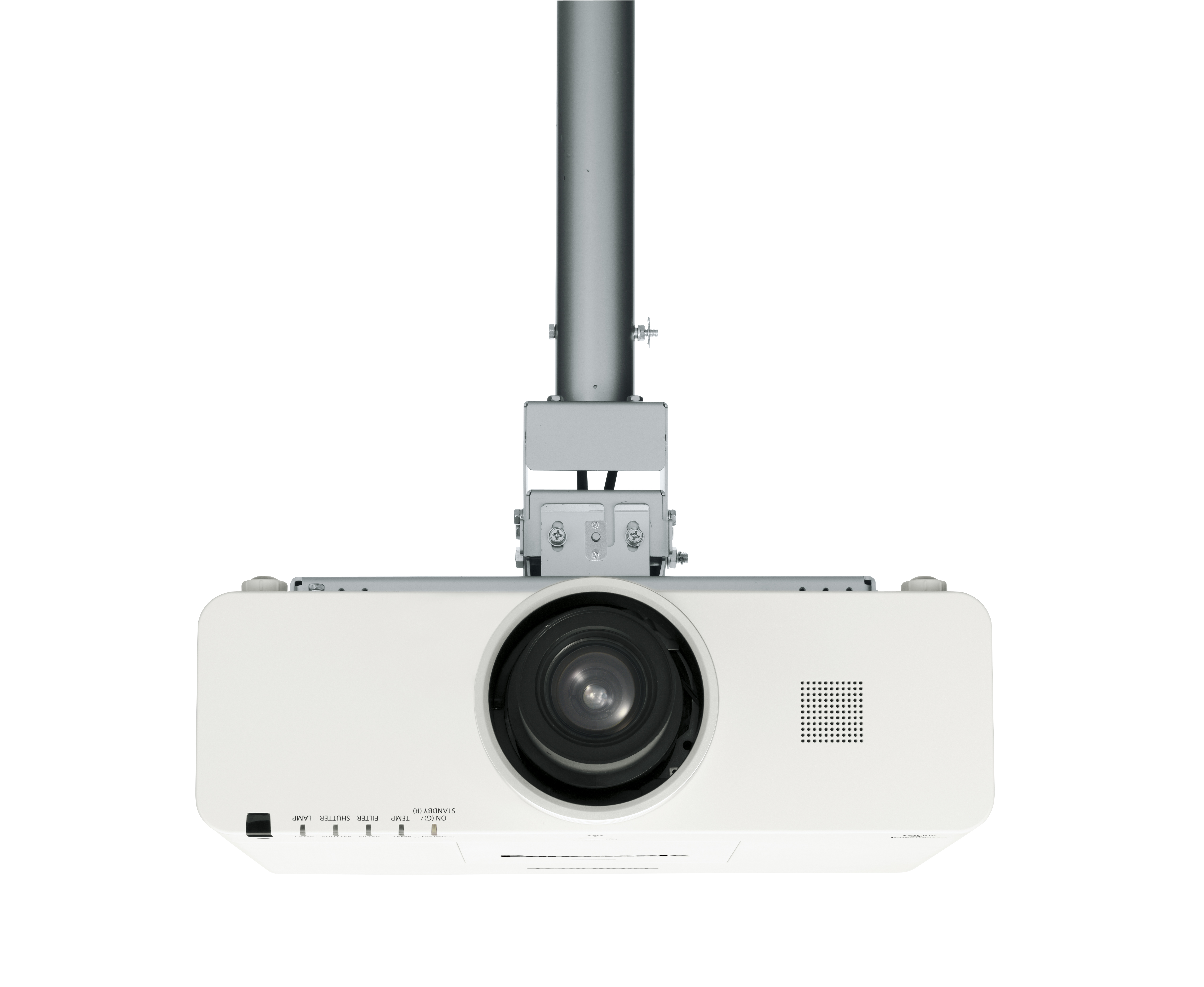

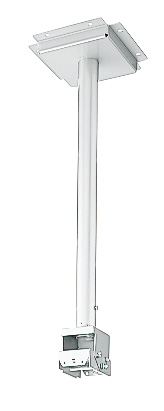

| Ceiling Mounting |
Yes, is possible. |
| Power |
519W |
| Size WxHxD |
489,5 x 164 x 434,80 mm (19,3"x6,5"x17,1") 34,81 L/dm³
|
| Operating Noise |
35 / 31 dB in Eco Mode |
Key: 92 cm |
Key: 92 cm |
| Key: 92 cm |
| |
|
|
| Weight |
10,50 kg / 23,15 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 26-80 kHz
V-sync: 23-85 Hz
Range max.: 162 MHz |
| Foot-Lamberts |
204 fL
/ max. 753 cm screen width |
| Candela m² |
699 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Freeze
User logo
Eco Mode
Kensington Slot
Dynamic iris
Warping
360° installable
Picture-in-Picture
Password protection
PJLink™
Control via web browser
Lan network compatible.
Crestron®-Software compatible.
Picture-next-picture
digital zoom
email error message
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Panasonic PT-EW630 E/U/L compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
54 |
Weight: |
|
98 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
97 |
Power cons.: |
|
94 |
| Picture Total Points: | 51 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
65 |
| Ranking: |
25 (From: 2514) |
|
|
|
|
|

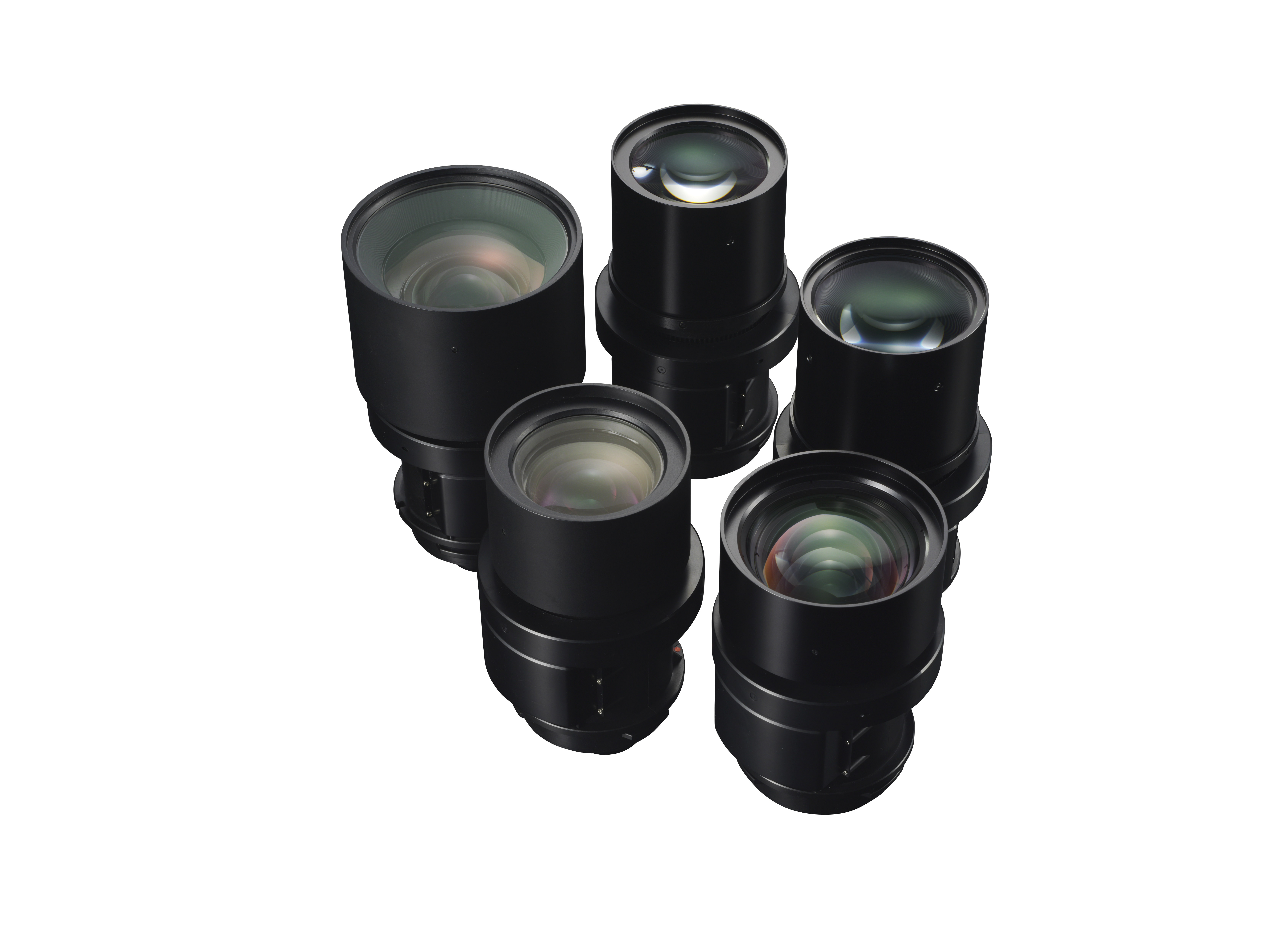

| Name | Ratio | Distance | Shift V | Shift H | Zoom |

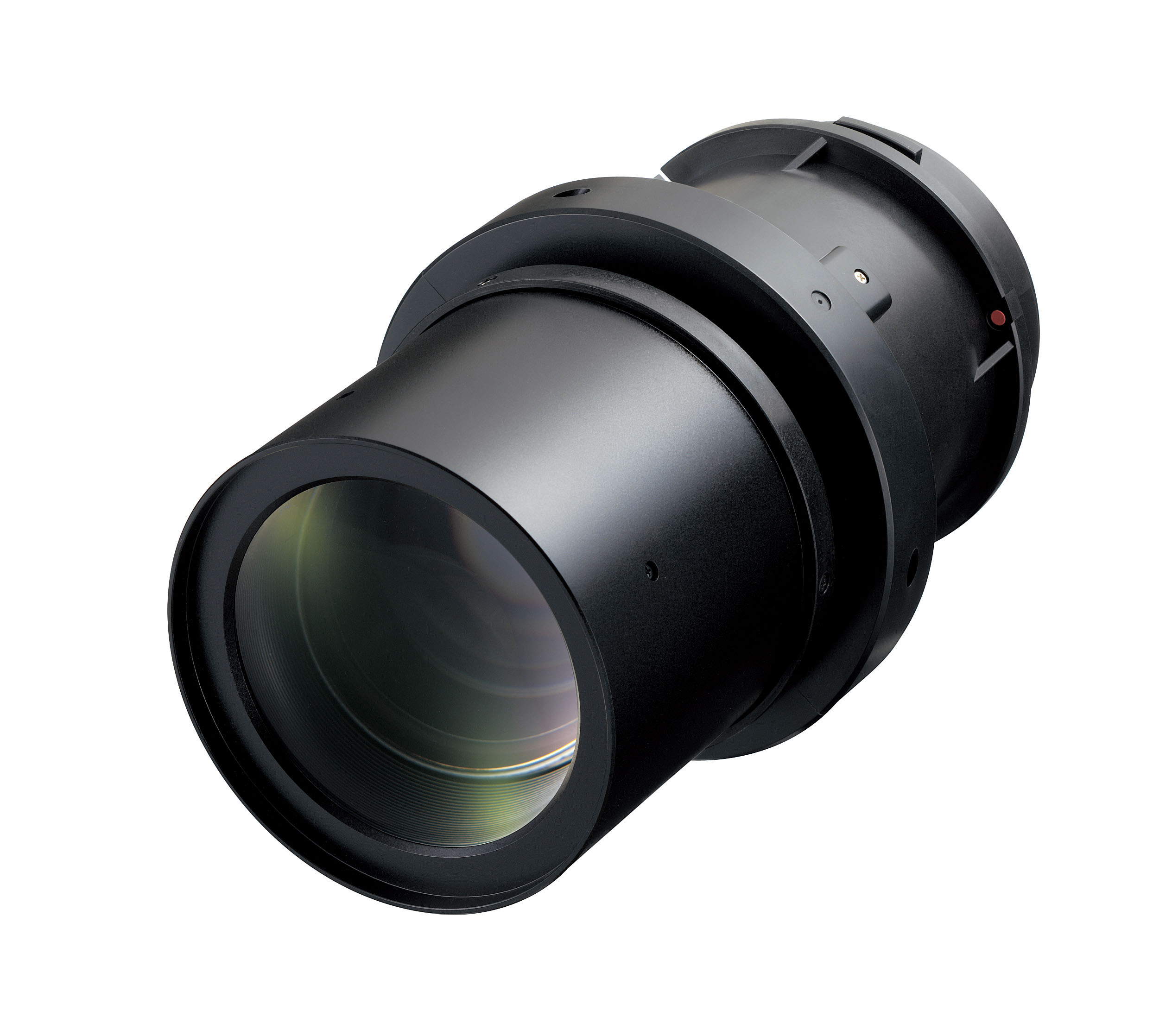

| ET-ELT21 | 4.6-7.2:1 | 920-1440 m |
+/-70% |
+/-10% |
Powered |

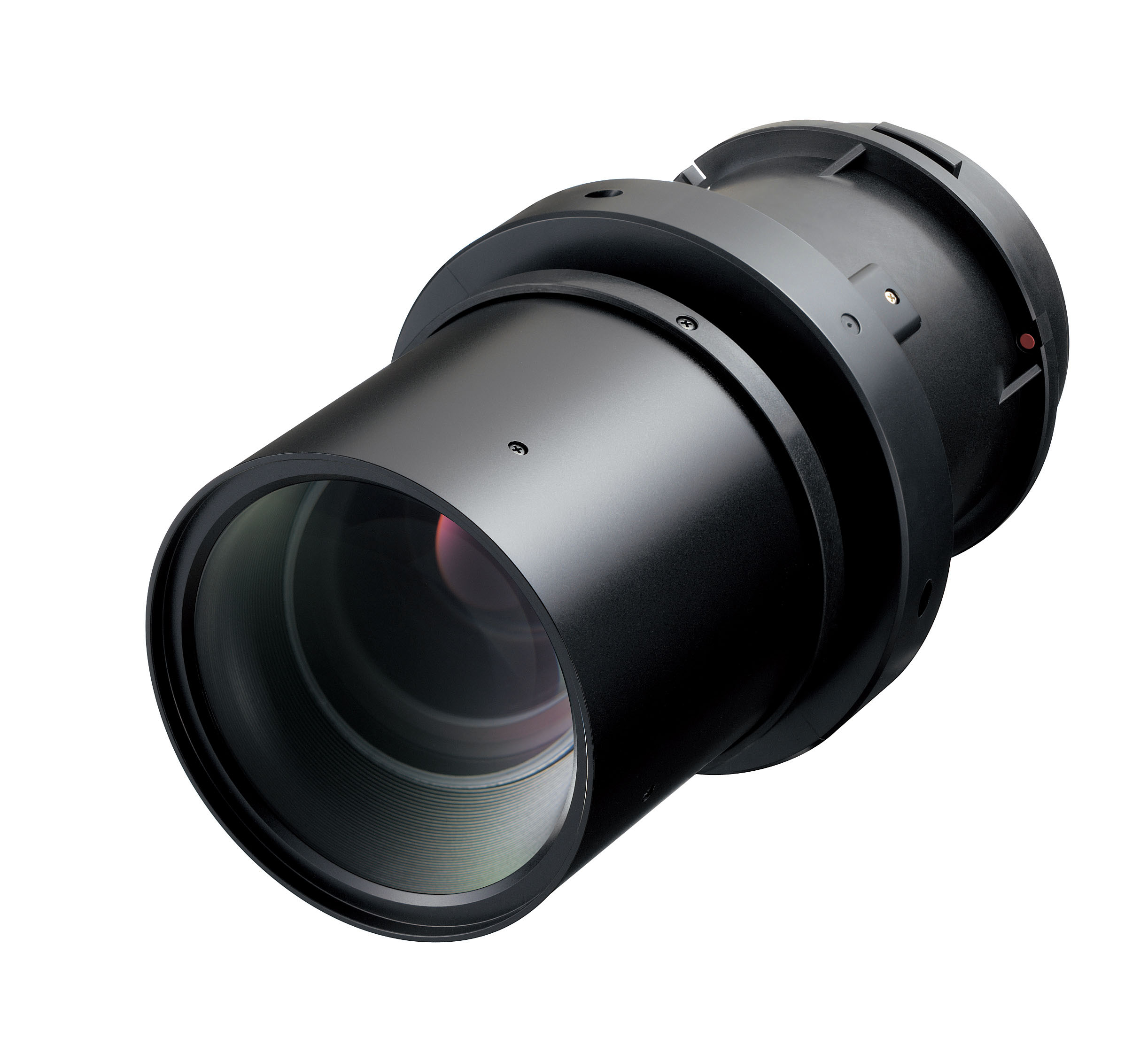

| ET-ELT20 | 2.89-4.6:1 | 578-920 m |
+/-70% |
+/-10% |
Powered |
| ET-ELS20 | 1.7-2.89:1 | 340-578 m |
+/-70% |
+/-10% |
Powered |

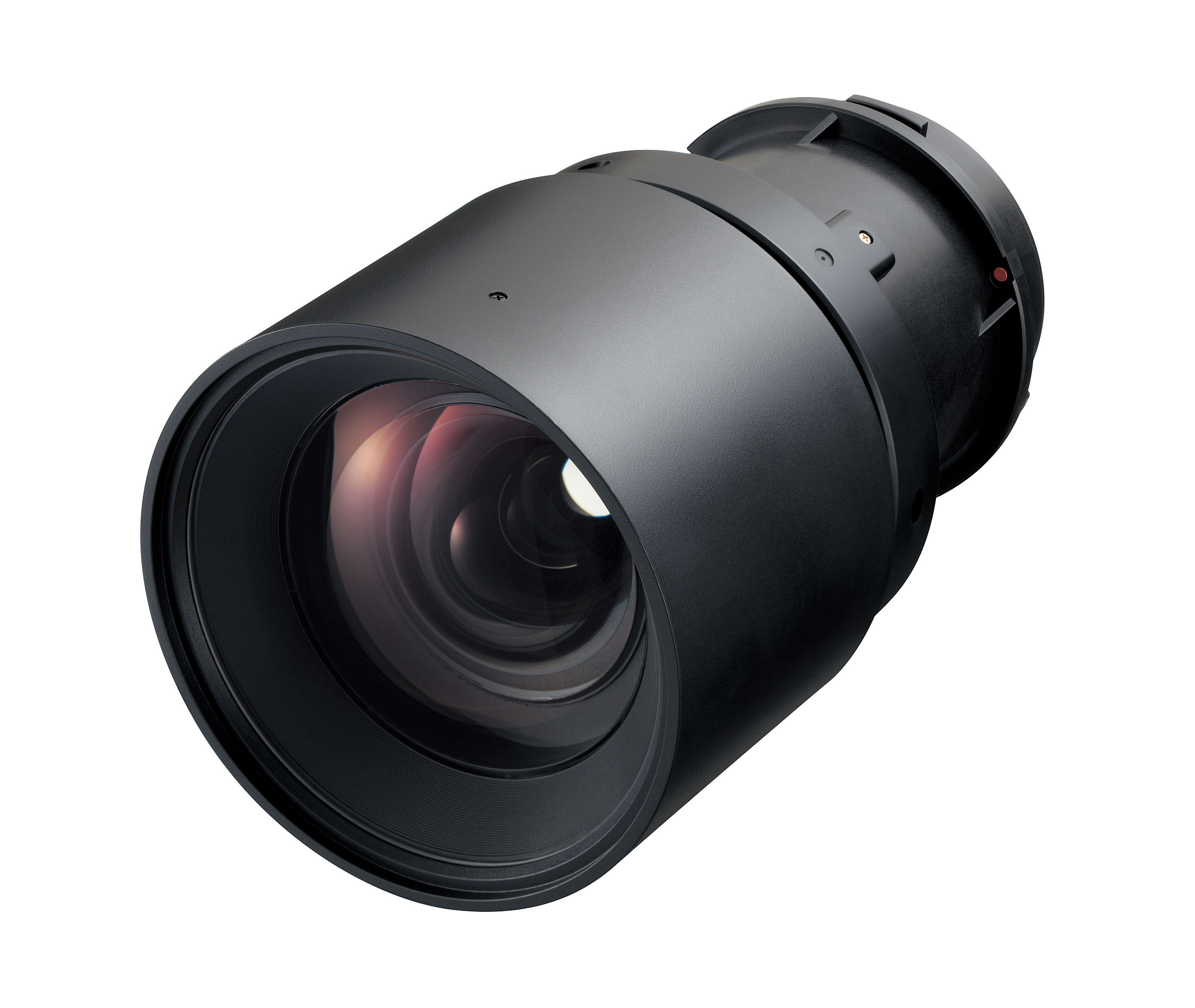

| ET-ELW20 | 1.25-1.7:1 | 250-340 m |
+/-70% |
+/-10% |
Powered |

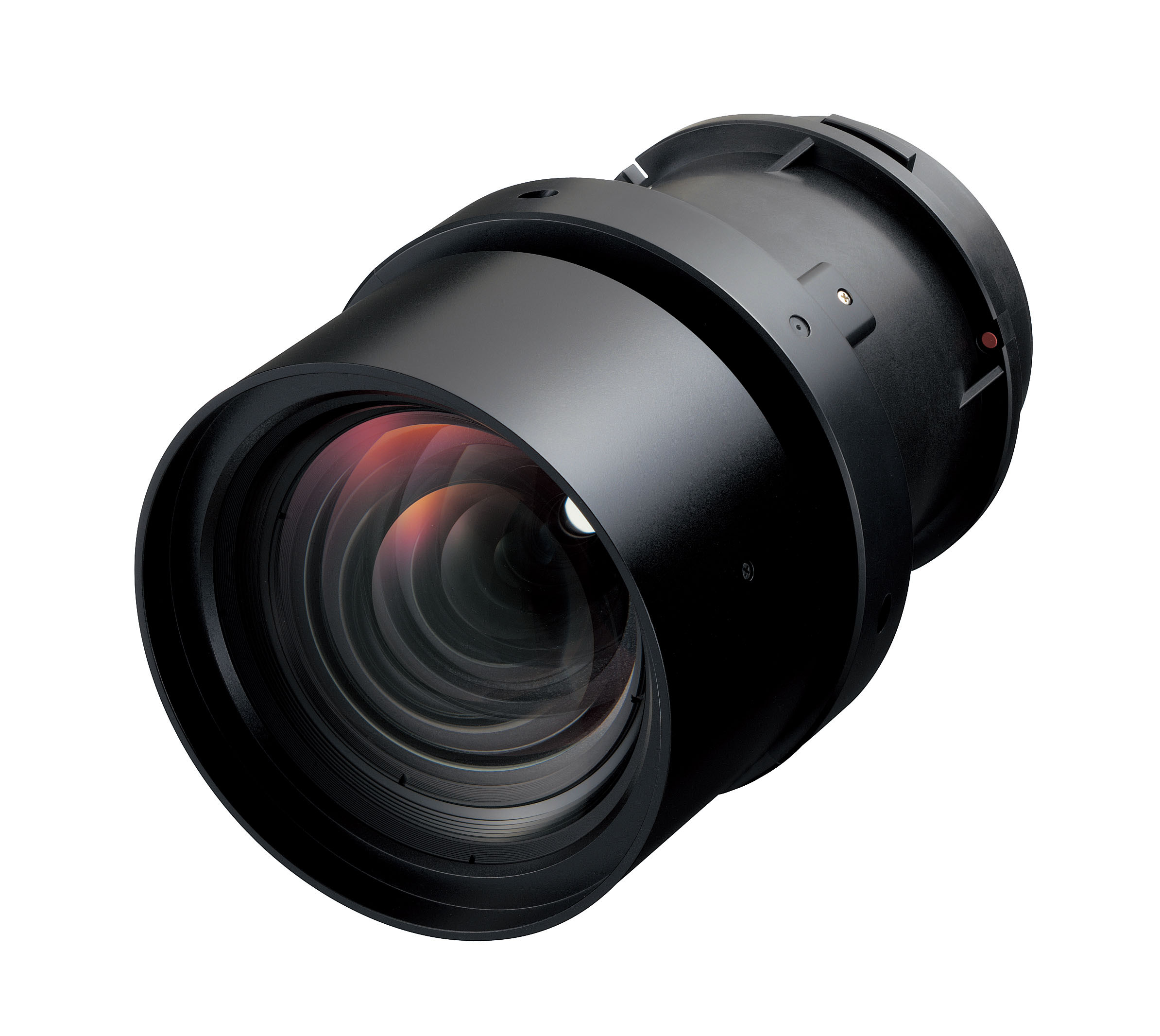

| ET-ELW21 | 0.8:1 | 160 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
