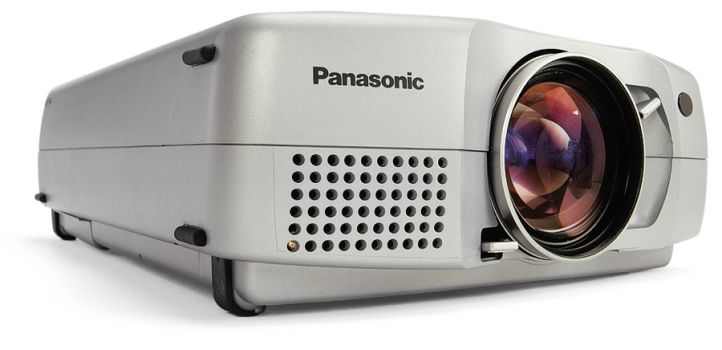

The hardware properties of the PT L711E manufactured by Panasonic include 1400 ANSI lumens, a XGA 1024 x 768 resolution and a contrast value of 300:1. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Lens Calculator is available to calculate the exact dimensions. A look at the light output reveals: The 1400 ANSI lumens are sufficient to illuminate an image width of up to 326 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 217 cm. With a value of only 28 decibels, the noise level during operation remains pleasantly in the background. Since entering the market in 2000, production has been discontinued; the manufacturer no longer actively offers the model.
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM Pal 60 NTSC 4,43
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
RGB1 in D sub HD 15-Pin
RGB2 in D sub HD 15-Pin
S-Video in Mini-DIN 4-Pin
Video in RCA-Klinkenstecker
Audio in RGB: Stereo-Mini-Klinkenstecker
Video: RCA-Klinkenstecker (L/R)
Audio out Stereo-Mini-Klinkenstecker
RS232C D sub 9-Pin
Freeze Eco Mode Kensington Slot Gamma correction Im Gegensatz zu seinen kleinen Bruder 701e hat der 711e nur 400 Ansi Lumen mehr. Liegt wohl am besseren Panel.
Freeze
