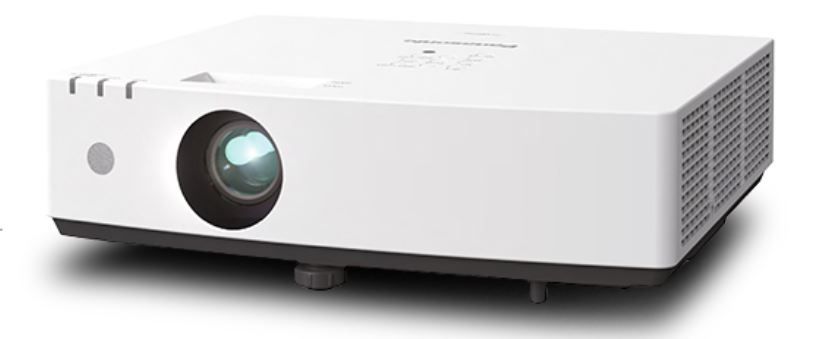

As a projector for the Standard-Portabel sector, the Panasonic PT-LMZ420 is equipped with 4200 ANSI lumens, a WUXGA 1920 x 1200 resolution and a contrast of 3000000:1. Using this laser phosphor technology, the light source runtime is rated at 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. A look at the light output reveals: The 4200 ANSI lumens are sufficient to illuminate an image width of up to 658 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 439 cm. For media input, video signals up to 1080P are supported, and also offers the technical capability for 360° projection. Also on board is a local media player that allows reading and playing content directly from storage media. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
Display Type
3 x 0,64" LCD Panel WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
4200
Screen
1867 Lux (200 cm Screen width)
Contrast
3000000:1 full on/off
3000000:1 full on/off
Black Level
0,0014 min. Lumen
0,001 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p Media player formats: jpeg, bmp, png, gif, tif,
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens).
2x HDMI in (with HDCP, Deep Color, 4K/30p)
D-sub 15pin in und out
2x Mini Jack Audio in
1x Mini Jack Audio out
RS232C Din 9 pin in
RJ45 (10Base-T, 100Base-TX) in
USB TYP A in
Full HD 1080P compatible
